FLUKE 805 FC vibration meter - 4489229

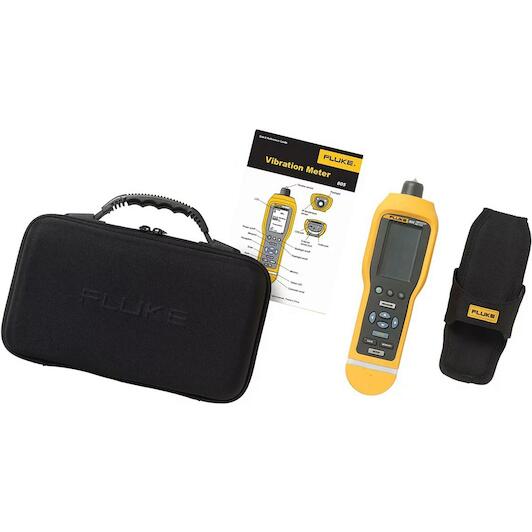

Scope of delivery

• Fluke 805 FC vibration meter
• USB cable
• Storage case
• Belt holster
• Quick guide
• Two (2) AA batteries

Key features:

• Easy setup: Quickly list devices and work order on your PC, set machine profiles with the Fluke Connect app on your smart device, move routes to your 805 FC for your on-site technicians.
• Consistent data quality: Take accurate, reliable measurements at both low and high frequency ranges
• Mobile access to data: Store results in the cloud and share data remotely with your team
• Innovative sensor design: Innovative sensor design minimises measurement differences due to instrument angle and contact pressure

Product description:

• Make go/no-go decisions with confidence.

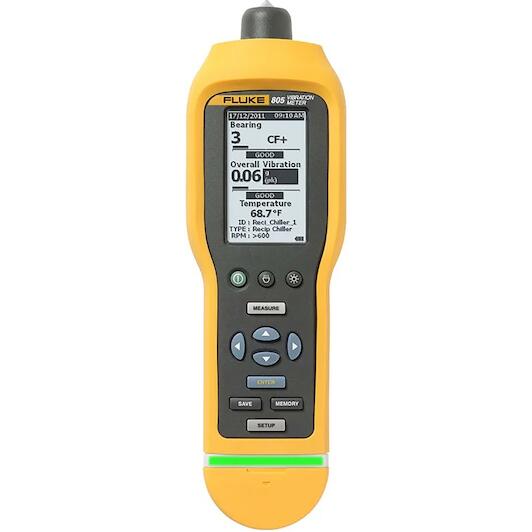

• The Fluke 805 FC vibration meter is the most reliable vibration survey instrument for front-line mechanical service teams who want to determine the severity of general vibration using reproducible readings and provide a reliable indication of overall vibration, bearing condition and machine condition.

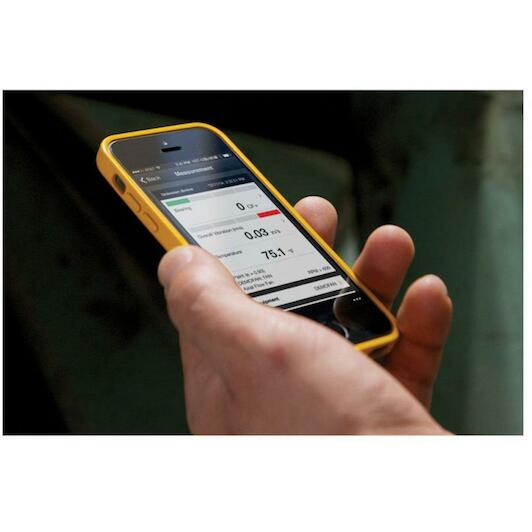

• With the Fluke Connect mobile app, it is now easier than ever to manage your vibration survey workflow.

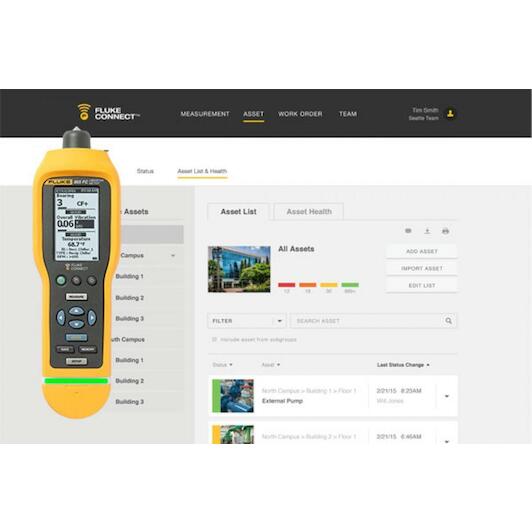

• Integrated machine profile functionality allows you to set up machine profiles using the app and then send them directly to your 805 FC vibration meter.
• Users can then use the list of machine profiles to create work orders and develop route-based maintenance schedules that can be dynamically sent to on-site technicians, ensuring proper focus on critical equipment.
• Once a machine has been tested, the 805 FC transmits the results directly to the app and links them to the right profile and route.

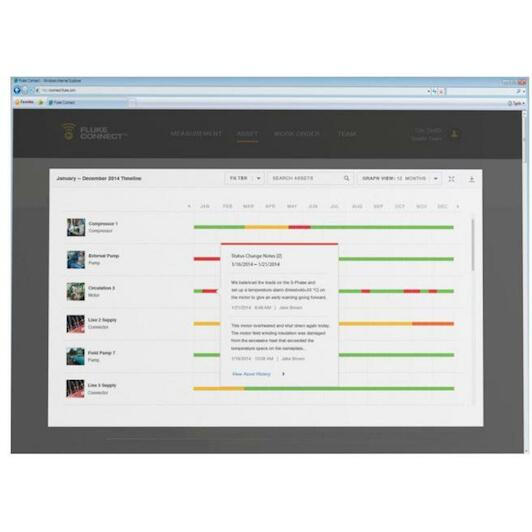

• This data can be easily shared between teams, allowing you to make better maintenance decisions.

Other useful features

• Reliable, reproducible and accurate instrument for checking bearings and general vibration resistance
• Features an innovative sensor design that minimises measurement differences due to instrument angle and contact pressure
• Guarantees constant data quality at both low and high frequencies
• A four-level scale allows the severity of problems and the condition of bearings to be determined
• Allows you to export data via USB or wirelessly, via the Fluke Connect mobile app
• Compatible with the Fluke Connect Mobile app that can send readings to your smartphone for real-time sharing
• Enables quick approval of next steps if machine condition is compromised via the Fluke Connect mobile app*
• Ability to trend in Microsoft Excel through integrated templates
• Measures overall vibration level (10 Hz to 1000 Hz) with units for acceleration, velocity and displacement for a wide range of machines
• With Crest Factor+ technology for reliable bearing assessment between 4,000 Hz and 20,000 Hz through direct measurement with the sensor tip
• Compares vibration levels with severity scales according to ISO-10816 and stores results in the Fluke Connect Cloud
• Coloured lighting (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements
• Temperature measurement with Spot IR sensor for expanded diagnostic capabilities
• With internal memory for storing max.
• 3500 measurement values
• Support of external accelerometer (optional) for hard-to-reach places
• With integrated torch for viewing measurement points in dark places
• Equipped with large, high-resolution display for easy navigation and reading
