FISCHER TA M6 S/10 sleeve anchor with bolt electrolytically galvanised - 90249

Name: FISCHER TA M6 S/10 sleeve anchor with bolt electrolytically galvanised - 90249
Brand: FISCHER
SKU: 02019256
Price: 1.15 EUR
Availability: PreOrder

1.15 tax incl.

€0.95 excl. VAT (incl. all environmental contributions)

FISCHER TA M6 S/10 sleeve anchor with bolt electrolytically galvanised - 90249

€1.15

On order: delivered from 26/05/2026

each

The minimum purchase order quantity for the product is 50.

Delivery by DHL

Product information

Product description

The installation-friendly internal thread anchor with screw for fixings in non-cracked concrete.

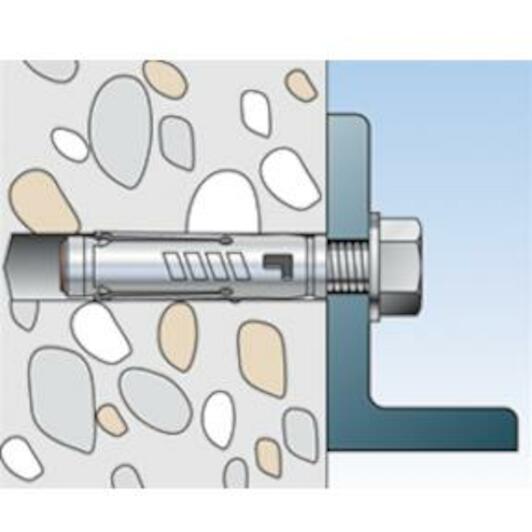

The fischer heavy-duty anchor TA M-S is an internal threaded anchor for pre-positioned installation made of zinc-plated steel. During installation the cone is pulled into the expansion sleeve and expands it against the hole wall. The plastic cover protects the thread from dirt. This ensures that it remains functional. The heavy-duty anchor is ideal for fixing fall protection devices, systems, and machines in non-cracked concrete.

Simple assembly due to low setting energy
Low axial and edge distances due to uniform load introduction
Surface flush installation due to detachable screw connections
ETA approval for non-cracked concrete
The optimised geometry minimises setting energy and allows for use in extremely narrow spaces. This allows for user-friendly installation
The three-part expansion sleeve creates even load distribution, thus allowing small edge and axial spacing. Thus the TA M is extremely flexible

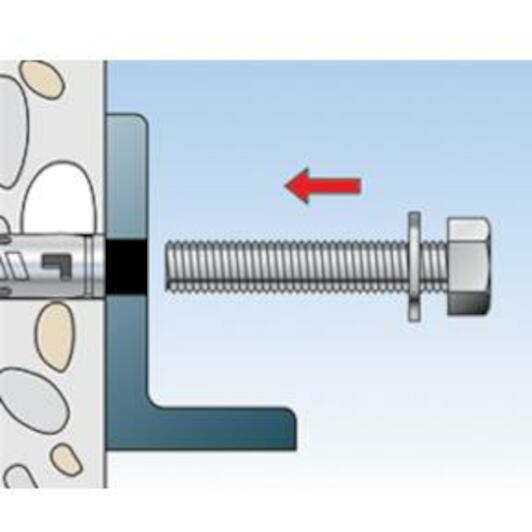

The metric internal thread allows to use standard screws or threaded rods for the ideal adaptation to suit the intended use
The red plastic cap protects against soiling and thus ensures free-running of the thread

Suitable for

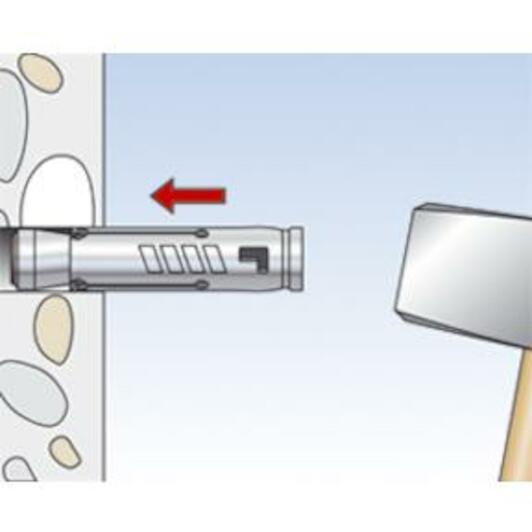

The TAM is suitable for pre-positioned installation

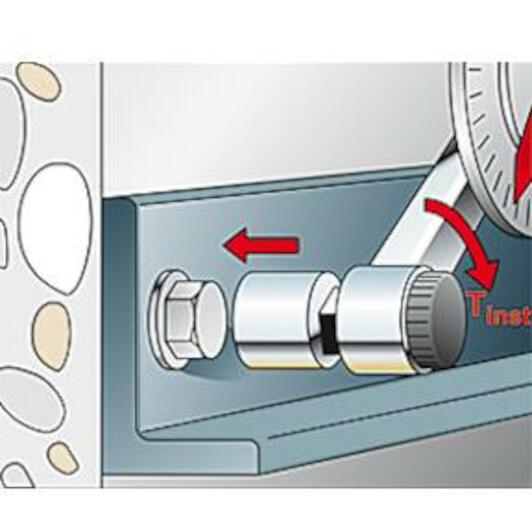

When applying the torque, the cone is pulled into the expansion sleeve and expands it against the drill hole wall
For correct installation, it must be ensured that the pre-positioned anchor TA M can be supported on the attachment, or that the threaded rod is countered
