What drill diameter is required for this brass plug?

For the Fischer MS 10 x 32, you need a drill hole diameter of 12 mm and a drill hole depth of 39 mm.

Which screws or threaded rods are compatible?

This plug has an internal thread designed for standard metric M10 screws and threaded rods.

Which base materials are suitable for this plug?

The brass plug is suitable for solid building materials such as concrete, solid sand-lime brick, and dense natural stone.

Is a screw included with this plug?

No, this plug is supplied without a screw. You can choose a suitable M10 metric bolt or threaded rod.

How does the Fischer MS brass plug anchor in the drill hole?

Turning in the metric screw causes the brass plug to expand and anchor firmly against the drill hole wall.

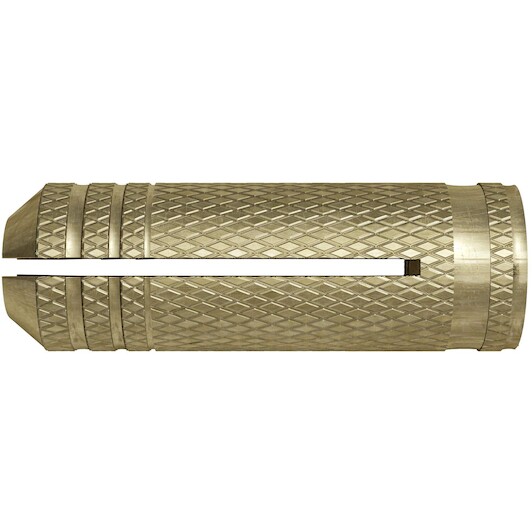

FISCHER 78661 brass plug MS 10 x 32

Name: FISCHER 78661 brass plug MS 10 x 32
Brand: FISCHER
SKU: 87960018
Price: 0.73 EUR
Availability: InStock

Supplier number: FISCHER 78661 | EAN 4006209786611

0.73 tax incl.

€0.60 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 25.

Delivery by DHL

✆ Talk to a specialist

Secure anchoring with Fischer

Practical benefits

Fast compact installation: The compact 32 mm fixing length reduces drilling depth to save you valuable installation time.
Slip resistant outer grip: The textured surface prevents the brass plug from rotating inside the drill hole during screw insertion.
Flexible metric compatibility: You can use standard metric screws or threaded rods while enabling clean surface-flush dismantling.

In a nutshell

The right choise for

With the Fischer ms 10 x 32 brass plug, you create a solid and dependable anchor in solid base materials such as concrete, solid sand-lime brick, and dense natural stone. Thanks to the compact 32 mm fixing length, you only need a 12 mm drill diameter and a 39 mm drill depth, significantly reducing drilling effort and speeding up installation. The textured outer surface prevents the plug from rotating inside the drill hole during fastening. As you drive in a standard metric M10 bolt or threaded rod, the brass body expands firmly against the hole wall, allowing for secure anchoring and clean surface-flush removal whenever needed.

Product information FAQ

€0.73

In stock - tax incl.

Key features according to our expert

Diameter (wall plug): - mm
Length (Wall plug): 32 mm
Depth (drill hole): 39 mm
Material (wall plug): Brass
Wall plug type: Brass plug
With screw: No
With collar: No
Application: Concrete
type (screw head): Not applicable
Drilling diameter: 12 mm

Product description

The brass expansion fixing with metric thread.

The fischer brass fixing MS is an expansion plug made of brass for holding a metric thread. The special fixing is set in the pre-positioned installation. When driving in the screw or the threaded rod the brass fixing expands and anchors itself in the drill hole. Above all, the fischer brass fixing MS is suitable for fixing shelves, flow heaters, and aggregates in solid building materials.

Fast installation due to compact design
No rotation due to non-slip surface structure
Flexibility due to using conventional screws and threaded rods
Surface flush removal possible
The compact design of the brass fixing reduces the amount of drilling required, helping to ensure a fast installation
The special surface structure of the MS prevents the fixing from rotating in the drill hole. This provides increased installation safety
The internal thread allows for the use of standard metric screws or threaded rods, and for surface flush removal and reuse of the fixing point. This provides great flexibility

Suitable for

The MS brass fixing is suitable for pre-positioned and push-through installation

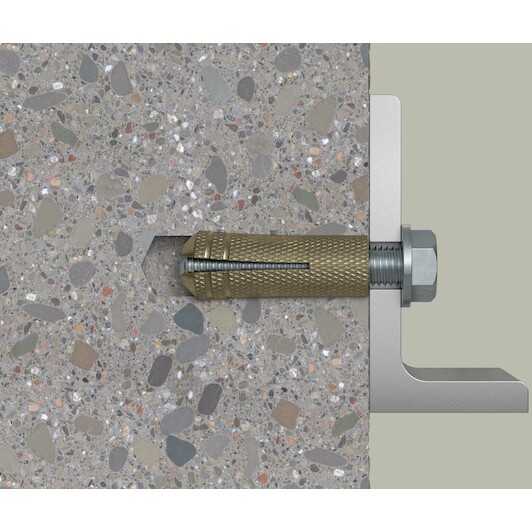

Turning in the metric screw causes the front part of the brass fixing to expand, thus securely anchoring it in the substrate
Calculating screw length for flush fixing installation: Fixing length + fixture thickness = min. screw length
Suitable for metric screws and threaded bolts
The brass fixing may have to be expanded slightly before installation by turning in the threaded screw

Building materials

Concrete
Solid sand-lime brick
Natural stone with dense structure
Solid brick

Application

Cellar shelves
Substructures made of wood and metal
Boilers
Aggregates
Control boxes
Curtain rails

All Features

Diameter (wall plug): - mm
Length (wall plug): 32 mm
Depth (drill hole): 39 mm
Material (wall plug): Brass
Wall plug type: Brass plug
With screw: No
With collar: No
Application: Concrete
Type (screw head): Not applicable
Drilling diameter: 12 mm
Implementation: without screw
Plug length: 32 mm
Min. screw-in depth: 32 mm
Drill diameter: 12 mm
Wire: M10
Min. borehole depth: 39 mm

Brand FISCHER
87960018
EAN 4006209786611
Supplier number FISCHER 78661

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this brass plug?: For the Fischer MS 10 x 32, you need a drill hole diameter of 12 mm and a drill hole depth of 39 mm.
Which screws or threaded rods are compatible?: This plug has an internal thread designed for standard metric M10 screws and threaded rods.
Which base materials are suitable for this plug?: The brass plug is suitable for solid building materials such as concrete, solid sand-lime brick, and dense natural stone.
Is a screw included with this plug?: No, this plug is supplied without a screw. You can choose a suitable M10 metric bolt or threaded rod.
How does the Fischer MS brass plug anchor in the drill hole?: Turning in the metric screw causes the brass plug to expand and anchor firmly against the drill hole wall.
