Product description

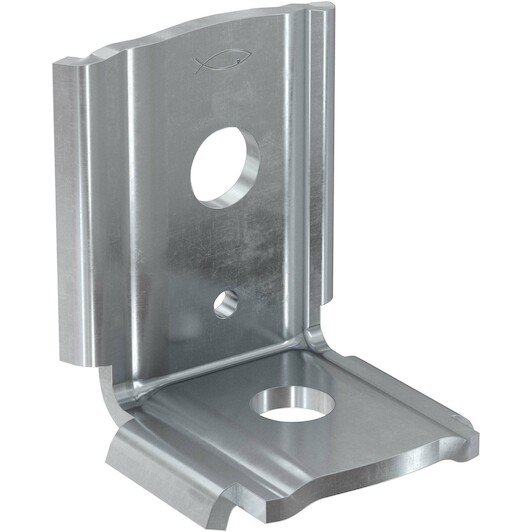

Construction elements - mounting bracket MW 90 ° and MWU 90 °
The construction elements fischer mounting brackets MW 90° and MWU 90° along with the channel nut FSM Clix P create precise yet simple connections of mounting channels with each other or to the substrate. The special retaining lugs enable the precise insertion of the MW 90° longitudinally and transverse to the mounting channel profile FLS. The MWU can be directly secured to the substrate in a space-saving installation. The MW and MWU brackets have standard holes with an 8. 5 mm diameter in line with the FSM Clix P 8 and plugs with an 8 mm outer diameter. The galvanised zinc version is suitable for installation in buildings.
- Simple creation of rail constructions in connection with FLS channels and FSM Clix P
- Corrosion protection suitable for the application due to galvanisation
- For use in dry interior areas

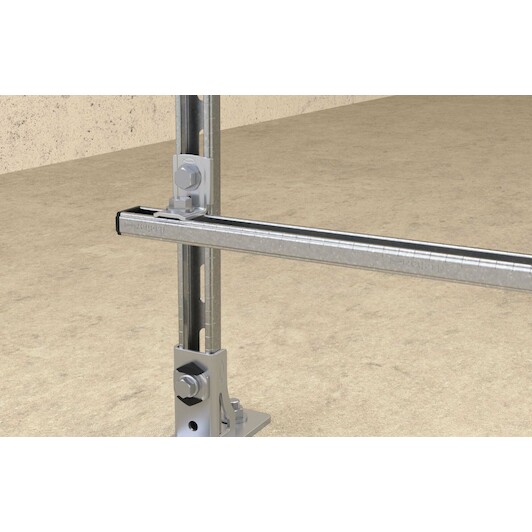

- The individual developed retaining brackets at the MW 90° angle bracket enable a form-locking installation longitudinal and transverse to the channel direction to adapt the channel connection effectively
- The standardised holes in the angle brackets enable an exact connection to the FLS channels by using FSM Clix P and a screw
Application

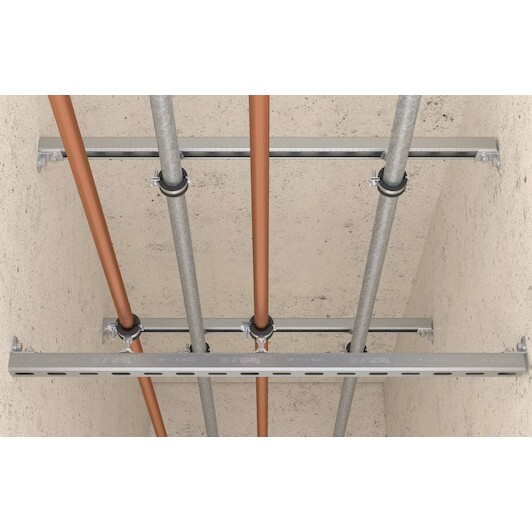

- Connecting elements for the arrangement of simple channel constructions with the sliding channel nut FSM Clix P
- For use in dry interior areas
