FISCHER 538667 universal bracket MWU 90° (8.5)

Name: FISCHER 538667 universal bracket MWU 90° (8.5)
Brand: FISCHER
SKU: 02907560
Price: 1.94 EUR
Availability: PreOrder

Supplier number: FISCHER 538667 | EAN 4048962265286

1.94 tax incl.

€1.60 excl. VAT (incl. all environmental contributions)

On order: delivered from 20/10/2026

The minimum purchase order quantity for the product is 25.

Delivery by DHL

✆ Talk to a specialist

Product information

€1.94

tax incl.

Key features according to our expert

Hole diameter: 8,5 mm
Angle: 90 °

Product description

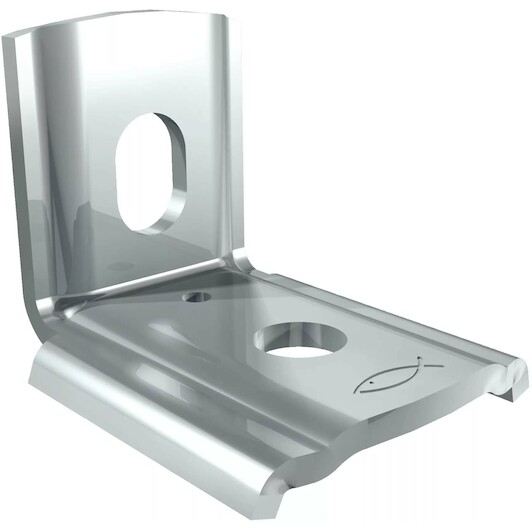

Construction elements - mounting bracket MW 90 ° and MWU 90 °

The construction elements fischer mounting brackets MW 90° and MWU 90° along with the channel nut FSM Clix P create precise yet simple connections of mounting channels with each other or to the substrate. The special retaining lugs enable the precise insertion of the MW 90° longitudinally and transverse to the mounting channel profile FLS. The MWU can be directly secured to the substrate in a space-saving installation. The MW and MWU brackets have standard holes with an 8. 5 mm diameter in line with the FSM Clix P 8 and plugs with an 8 mm outer diameter. The galvanised zinc version is suitable for installation in buildings.

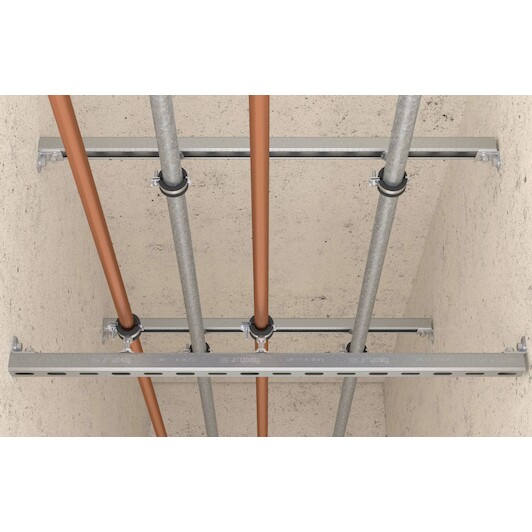

Simple creation of rail constructions in connection with FLS channels and FSM Clix P
Corrosion protection suitable for the application due to galvanisation
For use in dry interior areas

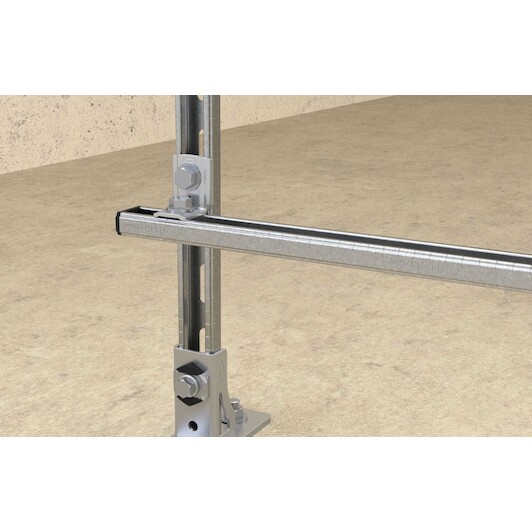

The long slot on flat wing of the MWU 90° angle bracket enables a direct connection to the substrate for space-saving fixation
The standardised holes in the angle brackets enable an exact connection to the FLS channels by using FSM Clix P and a screw
