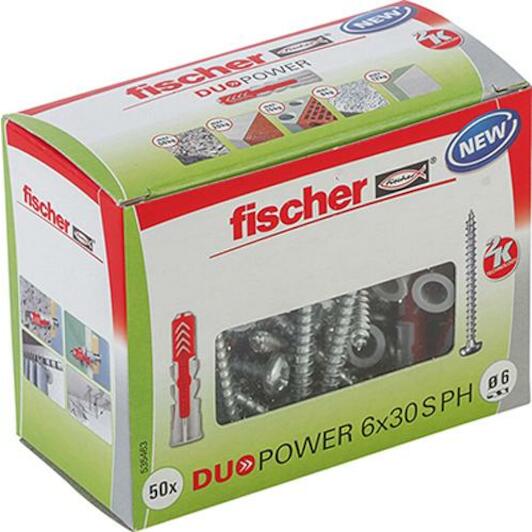

Scope of delivery (per purchase of 50)
- 50x DuoPower 6x 30
- 50x screw with round head 4.5x 40
Product description
The duo of power and intelligence
The fischer DuoPower offers very good hold values as a result of its 2 components: Depending on the building material, the grey components made from high quality nylon automatically activates the optimum product function (expansion, folding, knotting) for the best hold. The expansion wings of the red component support the secure expansion and offer additional security to the grey component. Easy screwing-in of the screw and correct "tightening" to close. No over-tightening of the screw. The preshaped edge on the plug head prevents the plug from slipping into the drill hole. The panhead screws provided are optimally suited to the fischer expansion plug DuoPower.
- Combination of two material components for more performance

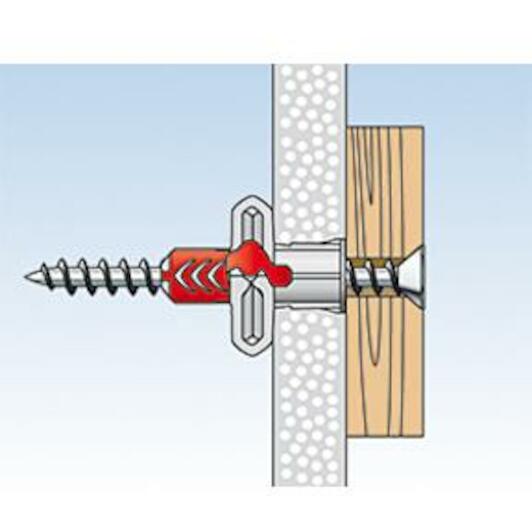

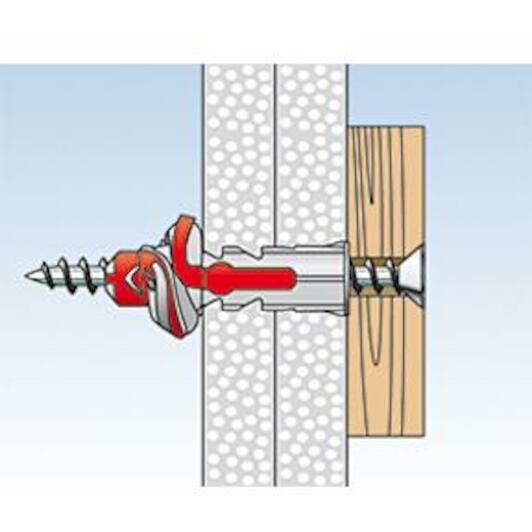

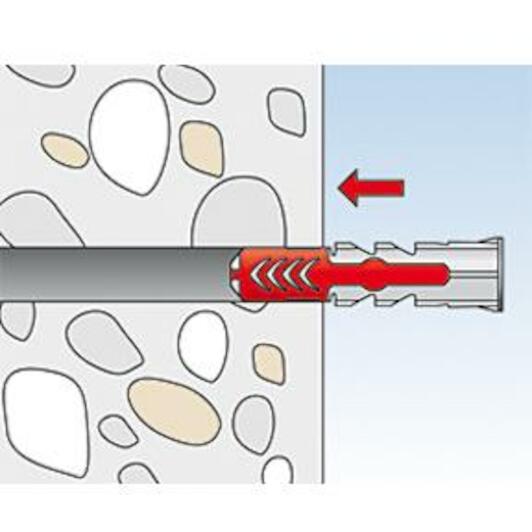

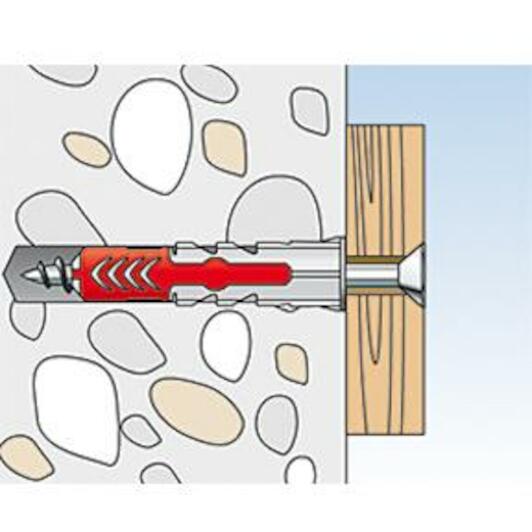

- Secure functions for solid (expansion) and hollow and panel building materials (folding/knotting)
- Easy installation: narrow edge of the plug prevents it from falling deeper into the drill hole
- Best possible feedback from the anchor - you can feel that the anchor is sitting perfectly
- With suitable panhead screw 4. 5 x 40 for perfect hold
- Two component materials for top load values and intelligent functioning depending on the substrate
- Great feedback (feel-good factor) of the plug. You can feel exactly, when the plug is installed perfectly
- The narrow plug rim prevents slipping into the drill hole
- The serrated anti-rotation feature prevents rotation in the drill hole during installation
- The greater anchorage depth of the DuoPower 6 x 50, 8 x 65 and 10 x 80 means that the plug is especially suited to fixings in hollow building materials, aerated concrete and to bridge plaster
Suitable for

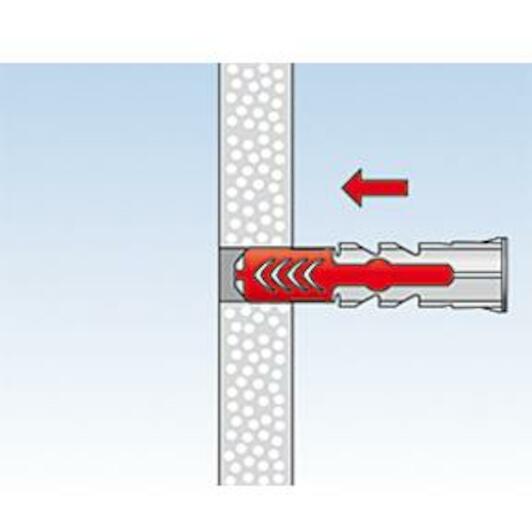

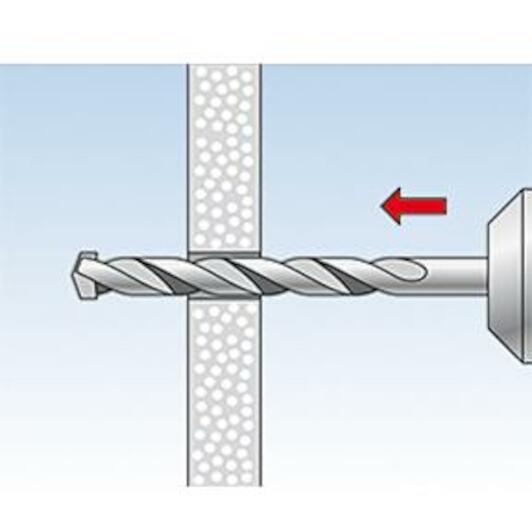

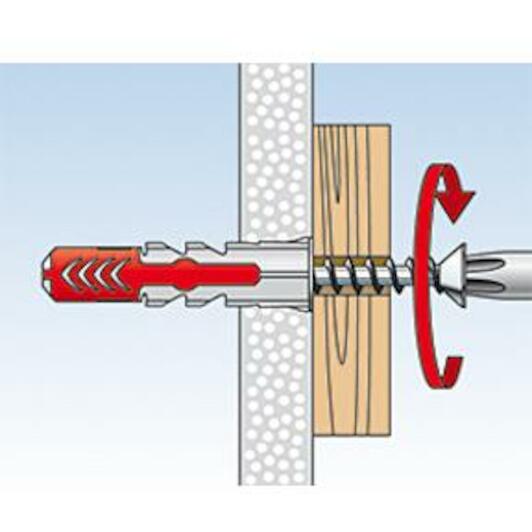

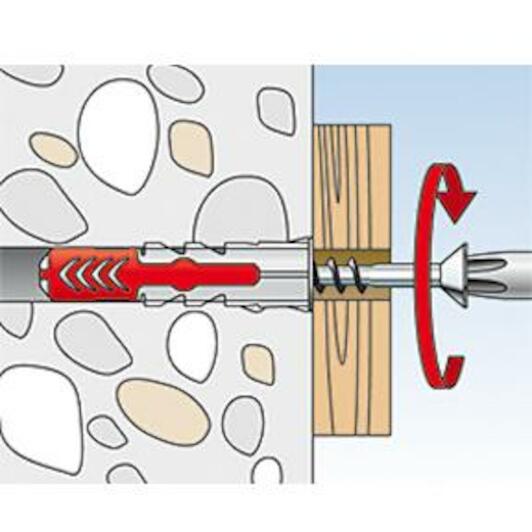

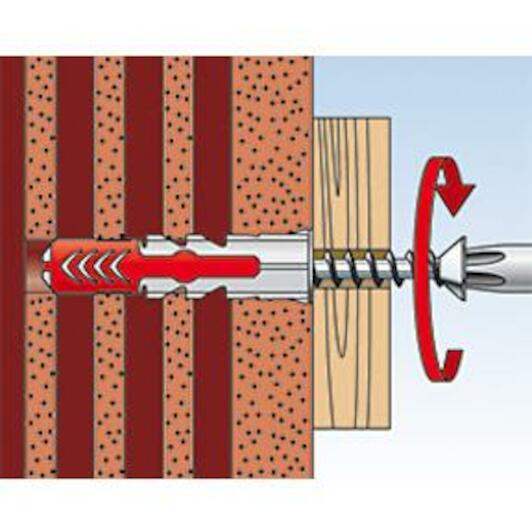

- The DuoPower is suitable for pre-positioned and push-through installation
- The red expansion wings support the safe expansion and offer additional safety for the grey component
- The duo of two different materials and its multiple functional abilities (expanding, folding, and knotting) extend the range of applications to additional materials with top loads
- The required screw length is given by the plug length + fixture thickness + 1x the screw diameter
- Suitable for wood and chipboard screws, as well as stud screws
- In the case of fixing boards, the threadless part of the screw must not be longer than the fixture
Building materials
- Concrete
- Solid brick
- Solid sand-lime brick
- Aerated concrete

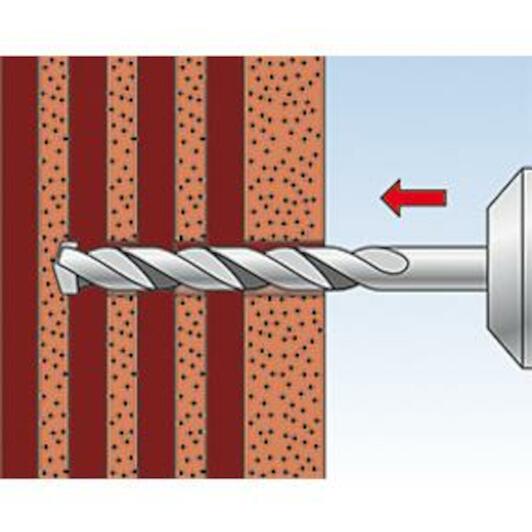

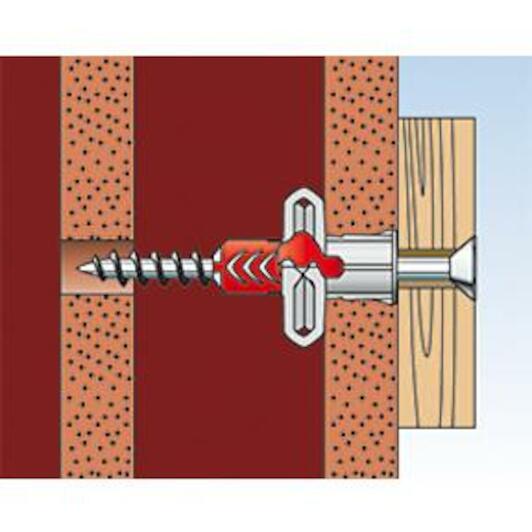

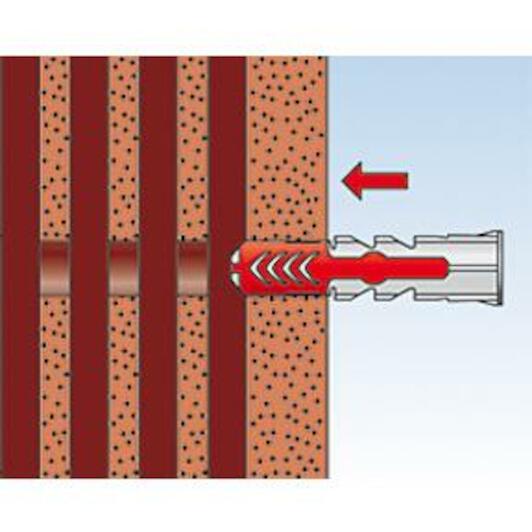

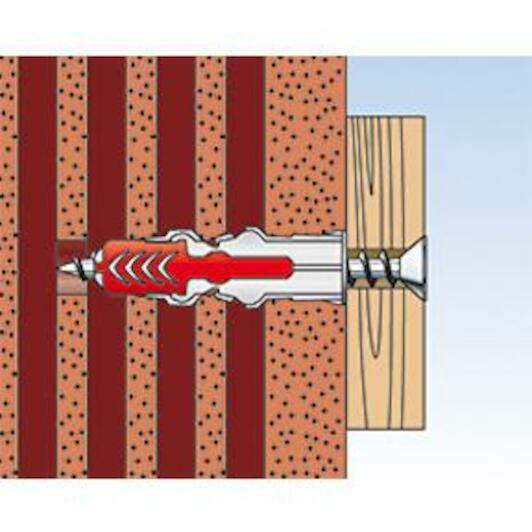

- Vertically perforated brick
- Perforated sand-lime brick
- Plasterboard
- Gypsum plasterboard and gypsum fibreboards
- Hollow blocks made from lightweight concrete
- Cavity floor slabs made from bricks and concrete or similar
- Natural stone
- Chipboard
- Solid panel made from gypsum
- Solid brick made from lightweight concrete
Application
- TV consoles
- Lighting
- Shelves
- Mirror cabinets
- Letter boxes
- Pictures
- Fixing blinds
- Curtain rails
- Wash basin fixings
- Plumbing and heating fixings
- Bath and toilet installations
- Wall cabinets
- Range hood
