What drill bit diameter is required for this hammerfix plug?

You need a drill diameter of 8 mm for this Fischer hammerfix plug.

What is the maximum fixture thickness for this nail anchor?

For the N 8 x 100/60 S, the maximum usable fixture thickness is 60 mm.

How do you install this nail plug?

Insert the pre-assembled plug through the fixture into the hole and drive in the nail screw with a hammer.

Can the nail screw be removed after installation?

Yes, the PZ3 drive allows you to remove the nail screw with a screwdriver for easy dismantling.

Which base materials is this plug suitable for?

It is suitable for concrete, solid brick, solid sand-lime brick, and natural stone.

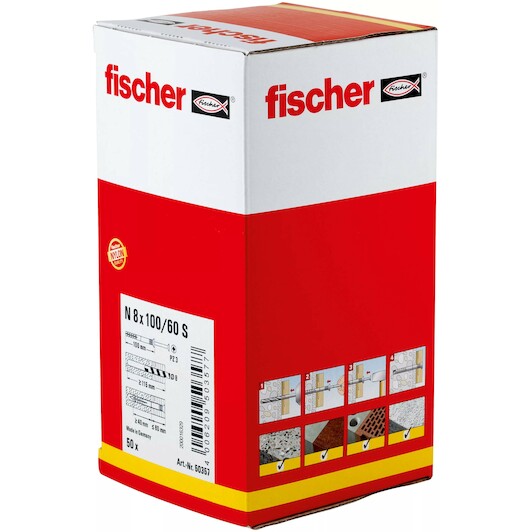

FISCHER 50357 nail plug N 8 x 100/60 S with countersunk head

Name: FISCHER 50357 nail plug N 8 x 100/60 S with countersunk head
Brand: FISCHER
SKU: 87991147
Price: 0.3 EUR
Availability: InStock

Supplier number: FISCHER 50357 | EAN 4006209503577

0.30 tax incl.

€0.25 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Delivery by DHL

✆ Talk to a specialist

Fast and secure push-through fixing

Practical benefits

Fast time-saving hammerset installation: You drive the pre-assembled nail screw directly through the fixture with a hammer, speeding up repetitive series installations significantly.
Controlled expansion during insertion: An integrated stop prevents premature expansion of the Fischer nylon plug, ensuring you achieve smooth and effortless insertion every time.
Simple and easy dismantling: The PZ3 cross-slot recess and screw thread allow you to unscrew the fastener quickly whenever subsequent adjustments or removal are needed.

In a nutshell

The right choise for

With the Fischer n 8 x 100/60 s hammerfix plug, you can complete repetitive series installations quickly and efficiently. Thanks to the pre-assembled nail screw, you drive the anchor directly through the fixture using a hammer into solid base materials such as concrete, solid brick, or sand-lime brick. The integrated hammer-in stop prevents the nylon plug from expanding prematurely, ensuring smooth and trouble-free insertion every time. Designed for an 8 mm drill hole and a maximum fixture thickness of 60 mm, it is ideal for securing wooden battens, skirting boards, or cable ducts. The countersunk head sits flush with the surface, while the PZ3 recess allows easy unscrewing whenever adjustments or dismantling are required.

Product information FAQ

€0.30

In stock - tax incl.

Key features according to our expert

Diameter (wall plug): - mm
With screw: Yes
Drilling diameter: 8 mm
Application: General
With collar: Yes
type (screw head): PZ3
Wall plug type: Hammer-in plug
Material (wall plug): Polyamide (Nylon®)
Depth (drill hole): - mm
Length (Wall plug): 100 mm

Product description

The hammer-in plug for simple, fast and economic installation.

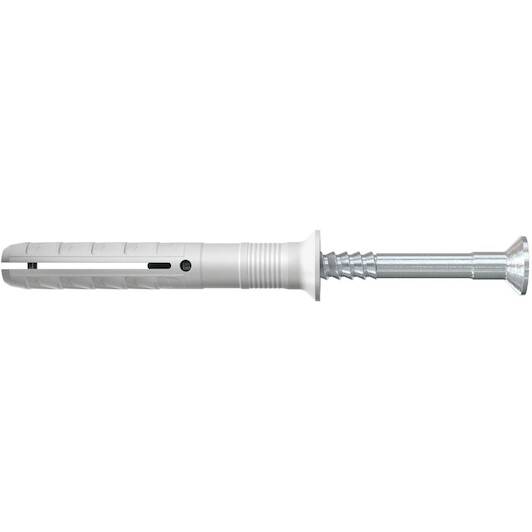

The fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a zinc-plated nail screw. These are already pre-fitted for quick assembly. The Hammerfix is led through the component in the time-saving through-type installation. When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material. The fischer Hammerfix N-S with countersunk head is ideal for fixing timber constructions in all building materials in internal areas.

Fast Hammerset installation saves time: ideal for series installation
Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading
Subsequent dismantling of the nail screw with a cross-slot recess is possible
With countersunk head
The rapid hammerset installation reduces the amount of time required and allows for an economic series installation
The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation
Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling
The wide range of diameters and usage lengths provides the correct plug for every fixing

Suitable for

Suitable for push-through installation

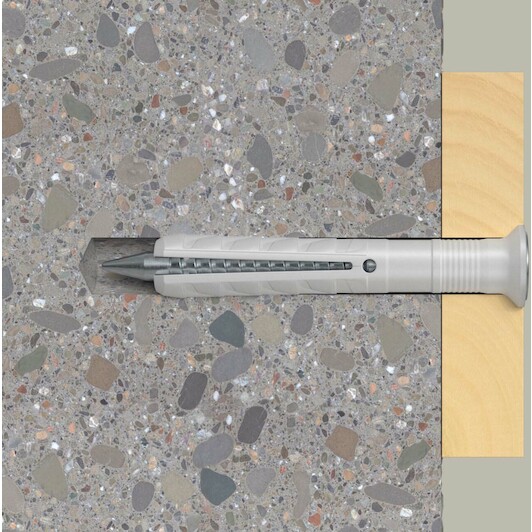

When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material
Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes

Building materials

Concrete
Solid sand-lime brick
Building brick
Natural stone
Solid brick made from lightweight concrete
Aerated concrete
Solid panel made from gypsum

Application

Substructures made of wood
Wall connection or plaster profiles
Cable and pipe clips
Perforated tapes

All Features

Diameter (wall plug): - mm
With screw: Yes
Drilling diameter: 8 mm
Application: General
With collar: Yes
Type (screw head): PZ3
Wall plug type: Hammer-in plug
Material (wall plug): Polyamide (Nylon®)
Depth (drill hole): - mm
Length (wall plug): 100 mm
Pierce fitting: Yes
Max. attachment thickness: 60 mm
Remote mounting: No
Min. borehole depth: 115 mm
Plug length: 100 mm
Effective anchoring depth: 40 mm
Front mounting: No
Min. anchoring depth: 40 mm
Min. drill hole depth for through-hole mounting: 115 mm
Colour: grey
Drill diameter: 8 mm
Material: electrolytically galvanised steel
Implementation: with screw
Recording: PZ3
Fischer nail screw: 5 x 105 mm

Brand FISCHER
87991147
EAN 4006209503577
Supplier number FISCHER 50357

Frequently asked questions about this product

Answered by specialists

What drill bit diameter is required for this hammerfix plug?: You need a drill diameter of 8 mm for this Fischer hammerfix plug.
What is the maximum fixture thickness for this nail anchor?: For the N 8 x 100/60 S, the maximum usable fixture thickness is 60 mm.
How do you install this nail plug?: Insert the pre-assembled plug through the fixture into the hole and drive in the nail screw with a hammer.
Can the nail screw be removed after installation?: Yes, the PZ3 drive allows you to remove the nail screw with a screwdriver for easy dismantling.
Which base materials is this plug suitable for?: It is suitable for concrete, solid brick, solid sand-lime brick, and natural stone.
