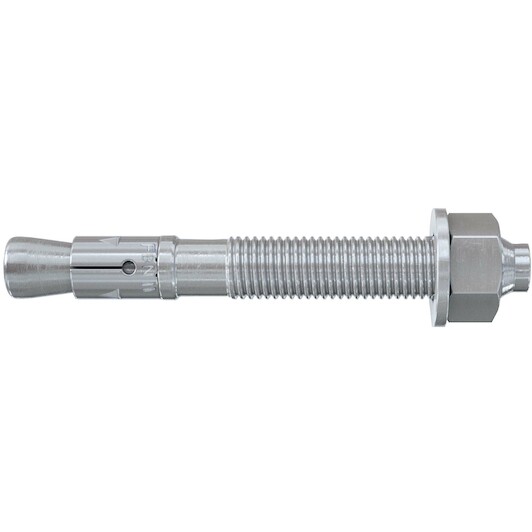

FISCHER 45564 rapid-action anchor FBN II 16/25 electrolytically galvanised steel

Name: FISCHER 45564 rapid-action anchor FBN II 16/25 electrolytically galvanised steel
Brand: FISCHER
SKU: 87051124
Price: 2.96 EUR
Availability: InStock

Supplier number: FISCHER 45564 | EAN 4006209455647

2.96 tax incl.

€2.45 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 10.

Delivery by DHL

✆ Talk to a specialist

Secure anchoring with Fischer FBN II

Practical benefits

High load bearing capacity: You achieve strong and dependable hold in non-cracked concrete thanks to the proven expansion clip.
Flexible installation depths available: You can utilize reduced anchorage depth to decrease drilling time and effort during assembly.
Protected threads during hammering: The integrated drive-in pin protects the M16 thread from damage when you hammer the anchor.

In a nutshell

The right choise for

With the Fischer fbn II 16/25 bolt anchor, you achieve fast, reliable, and solid fastening in non-cracked concrete and dense natural stone. This zinc-plated steel anchor with M16 threading and a total length of 145 mm is built for demanding indoor installations such as industrial racking, steel columns, and heavy brackets. Thanks to the expansion clip, it delivers high load-bearing capacity without any curing time. You can choose flexibly between a fixture thickness of 25 mm at standard anchorage depth and 40 mm at reduced anchorage depth to cut down drilling time. The integrated drive-in pin protects the thread during hammer-in installation.

Product information FAQ

€2.96

In stock - tax incl.

Key features according to our expert

Drilling diameter: 16 mm
Effective length: 24/40 mm
Overall length: 145 mm
Material (bolt): Steel
Surface treatment (bolt): Zinc plated
Thread designation: M16

Product description

The cost-efficient fixing for flexible use in non-cracked concrete

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixations in non-cracked concrete. Thanks to its long thread and the two anchorage depths, the fischer bolt anchor FBN II is particularly flexible. In addition to pre-positioned and push-through installation, the bolt anchor is suitable for stand-off installation. In the stainless steel design, the bolt anchor is suitable for façade sub-structures, cantilevers and ladders outside.

The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required
The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility
The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility
Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation
The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment

Suitable for

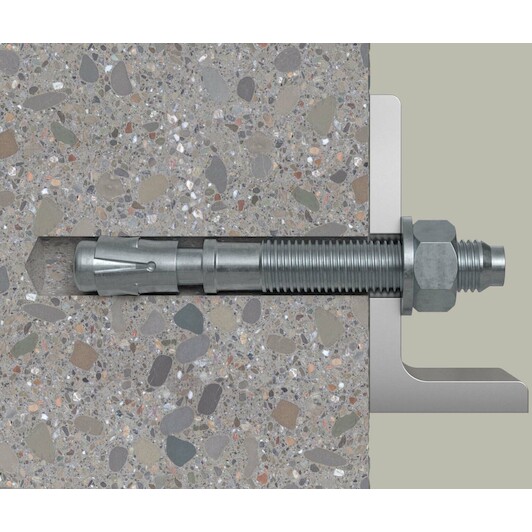

The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions
Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut)
When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall
The head embossing offers a simple control of the anchoring
In the case of series installation, we recommend using the FABS bolt anchor setting tool

Building materials

Approved for:

Concrete C20/25 to C50/60, non-cracked

Also suitable for:

Concrete C12/15
Natural stone with dense structure

Application

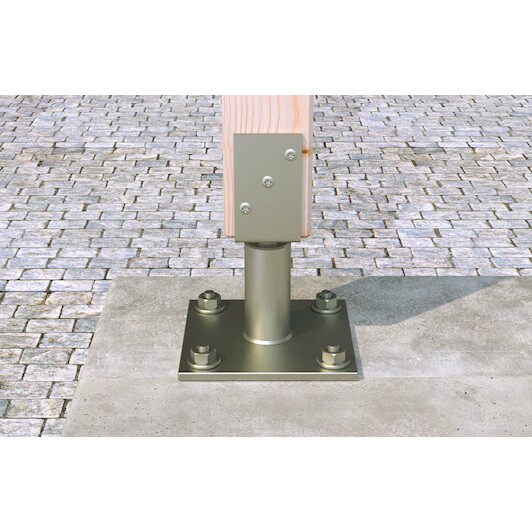

Steel constructions
Guard rails
Consoles

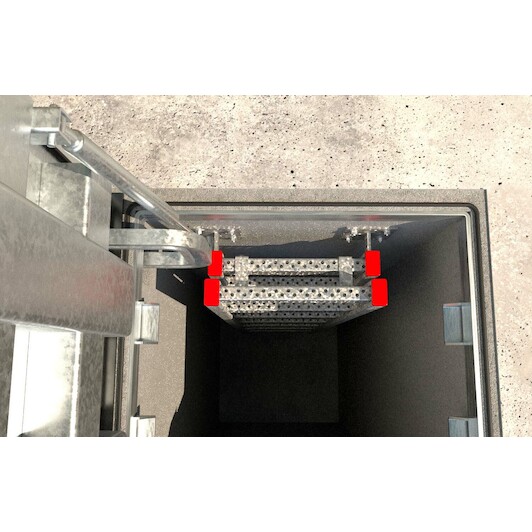

Ladders
Cable trays
Machines
Staircases
Gates
Façades

All Features

Drilling diameter: 16 mm
Effective length: 24/40 mm
Overall length: 145 mm
Material (bolt): Steel
Surface treatment (bolt): Zinc plated
Thread designation: M16
Pierce fitting: Yes
Anchoring depth lift, stand/lift,red: 80 / 65 mm
Max. useful length lift,stand/heave,red: 25 / 40 mm
Max. attachment thickness: 25 mm
Remote mounting: No
Thread size (metric): 16 mm
Front mounting: Yes
Min. drill hole depth for through-hole mounting: 129 mm
Pad (outer diameter x thickness): 30 x 3 mm
Anchor length: 143 mm
Anchoring depth: 80 mm
Tightening torque: 100 N-m
Drill diameter: 16 mm
Key width: 24 mm
Wire: M16
Marking in headline: E

Brand FISCHER
87051124
EAN 4006209455647
Supplier number FISCHER 45564

Frequently asked questions about this product

Answered by specialists

What drill hole diameter is required for this anchor?: You need to drill a hole with a diameter of 16 mm for this anchor.
Which base materials are suitable for this bolt anchor?: It is approved for non-cracked concrete from C20/25 to C50/60 and dense natural stone.
What is the maximum fixture thickness for this anchor?: The fixture thickness is 25 mm at standard anchorage depth and 40 mm at reduced anchorage depth.
Which installation methods can be used with the FBN II?: This anchor is suitable for pre-positioned, push-through, and stand-off installations.
Is this zinc-plated version suitable for outdoor use?: This electro-zinc plated steel version is primarily intended for dry indoor applications.
