Controlled power for heavy drilling tasks
- Four speeds for versatile drilling: The durable all-metal gearbox lets you switch smoothly from high-torque screwdriving to high-speed drilling at up to 3600 RPM.
- Brushless Festool motor delivers endurance: The wear-free EC-TEC motor maximizes efficiency so you can drill large diameters in wood and metal with minimal effort.
- Added safety with electronic KickbackStop: The integrated kickback sensor stops rotation instantly if the bit binds, protecting your wrist from dangerous twisting motions.

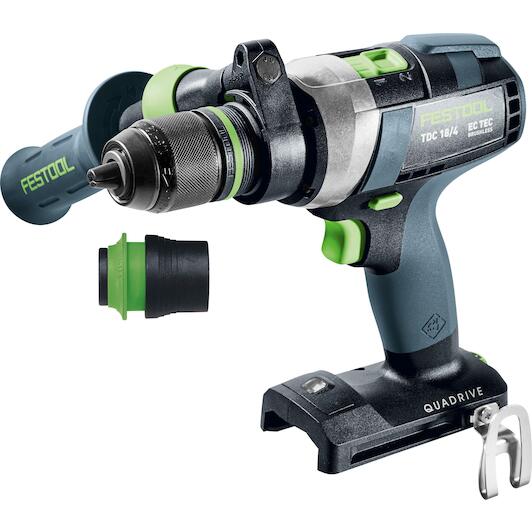

With the Festool tdc 18/4 i-basic quadrive compact cordless drill driver, you tackle heavy timber framing and demanding joinery with complete control. Its brushless ec-tec motor and four-speed metal gearbox deliver up to 75 Nm of torque and drilling speeds up to 3600 RPM. This gives you the capacity to drill up to 70 mm in wood and 13 mm in steel. The electronic KickbackStop stops the motor immediately if the bit jams, protecting your wrist from twisting. You can switch quickly between drilling and driving using the FastFix chuck and centrotec tool holder. This 18V bare tool comes in a stackable Systainer SYS3 M 187.

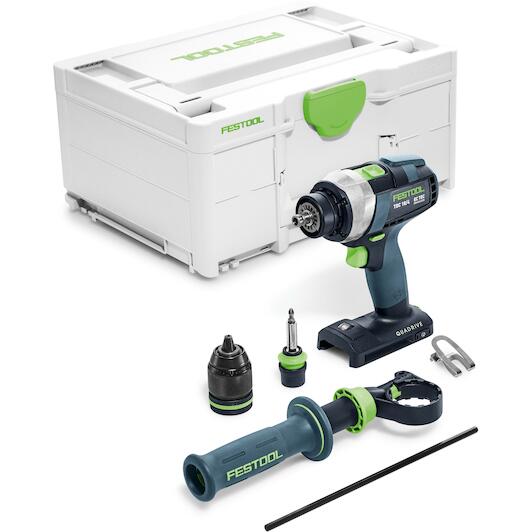

Scope of delivery
- WH-CE CENTROTEC tool chuck
- CENTROTEC BH 60 CE Imp magnetic bit holder
- FastFix keyless chuck 13 mm KC 13-1/2-MMFP
- Additional side-mounted hand grip
- Bit PZ 2
- Belt clip
- Systainer SYS3 M 187
Product description
Pure power, controlled in four gears.
Powerful. Versatile. With four gears for every application. With the best switching concept you have ever operated. Whether you are working on wood or metal: The TDC is extremely durable and, thanks to its brushless EC-TEC motor, has extreme resilience and endurance. The large number of attachments, combined with perfectly matched accessories, make the QUADRIVE an unrivalled drill for a wide range of possible uses. What about your hand twisting dangerously if the tool suddenly jams? Our intelligent KickbackStop minimises the risk of this happening. Give it a go: The best drill that Festool has ever built!
- Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
- Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
- Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
- The QUADRIVE with four gears for every working situation: From screwdriving with 50 Nm torque in first gear to precise drilling at 3600 rpm in fourth gear
- Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular screwdriving
- The depth stop and eccentric adapter also enable depth-limited screwdriving close to edges
- Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution. The 5.0 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications. Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs
- Mobile: The QUADRIVE comes in a Systainer³ and so can be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site
Ideally suited for
- Production of wooden substructures, frame structures
- Installation of doors and windows
- Drilling and screwdriving in wood, metal and plastic
- Drive screws into wood up to 10x300 mm
- Drilling in wood up to 70 mm with Forstner drill bits
