Flexible pulling power for mechanical extraction
- Versatile Facom puller configuration: You effortlessly adapt to internal and external extraction tasks using the interchangeable legs and specialized mounting accessories.
- Controlled high impact force: You remove stubborn bearings and gears smoothly with the combined strength of the slide hammer and heavy-duty beam.
- Organized heavy-duty steel storage: You keep all your extraction components securely stored and instantly accessible inside the durable steel case with fitted inlay.

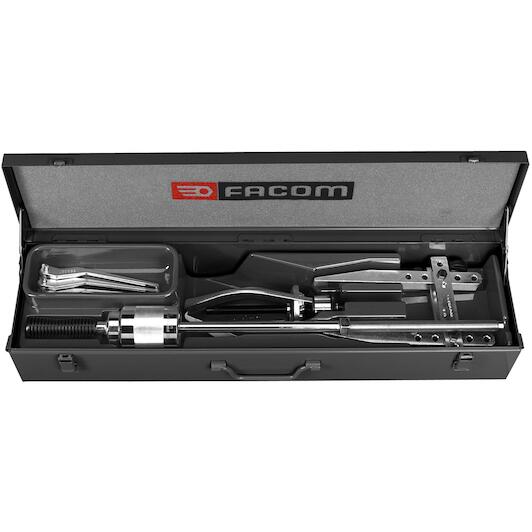

With the Facom U.306J1 puller set, you remove seized bearings, gears, and bushes safely without damaging workpieces. This versatile set equips you for both internal and external pulling tasks across demanding mechanical maintenance and overhaul operations. It provides an external spread of ø 7 to 140 mm and an internal capacity of ø 23 to 130 mm, with a reach of 140 mm. Featuring the U.306A140 puller, U.306g2 inside legs, U.306m slide hammer, and U.40 beam, it gives you the right pulling force for tightly seated parts. Everything stays neatly organized and protected in the durable BT.102 steel case with fitted PL.209 tray.
Scope of delivery
- 1 puller U.306A140.
- 3 universal jaws for inner puller U.306G2.
- 2 attachments: impact weight U.306M and support U.40 (assembly with washer and nut U.306A1, included in set).
- Capacity:
- Outer puller Ø 7 to 140 mm.
- Inner puller Ø 23 to 130 mm.
- Range: 140 mm.
- Supplied in metal case BT.102 with inlay PL.209.
Product description
- Set of inner and outer pullers
