FACOM

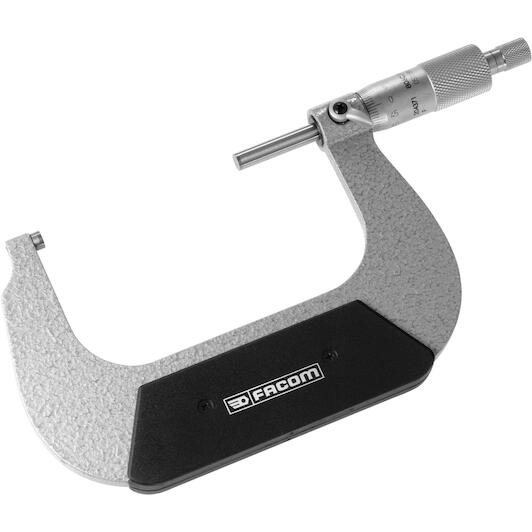

FACOM 806C.50 mechanical micrometer 25-50 mm

Recommended Retail Price €389.35
270.20 tax incl.
€223.31 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

Product description

  • 806 - Micrometers to 1/100th mm

Features

  • Precision: 1/100th - 0.01 mm.
  • Resolution: 0,01 mm.
  • Carbide measuring pin: Ø 6,5 mm.
  • Bushing with ratchet and torque limiter.
  • Force applied to the specimen always remains between 5 and 10 Nm.
  • Bushing: Ø 18 mm.
  • Sleeve with 50 dashes (one rotation of the sleeve: 0.5 mm).
  • Isothermal plates.
  • Supplied with:
    • A calibration key with pins.
    • A key for calibration distance from model 806C.50 onwards.
  • Calibration calipers:
    • 806.C50: 25 mm ± 1.5 µm.
    • 806.C75: 50 mm ± 2 µm.
    • 806.C100: 75 mm ± 2.5 µm.
  • Supplied in a plastic case.
  • Supplied with certificate of conformity.
Key features according to our expert
  • Micrometer type: Outside micrometer
  • Readout: 0,01 mm
  • Min. measuring range: 25 mm
  • Supplier warranty: FACOM - Lifetime (E)
  • Accuracy: 0,01 mm
  • Max. measuring range: 50 mm
Specifications / All features
Micrometer type
Outside micrometer
Readout
0,01 mm
Min. measuring range
25 mm
Supplier warranty
FACOM - Lifetime (E)
Accuracy
0,01 mm
Max. measuring range
50 mm
Accuracy (mm)
0.01
Metric scale
Yes
Digital indication
No
Measuring drum diameter (mm)
18
Imperial scale
No
Spindle diameter (mm)
6.5
