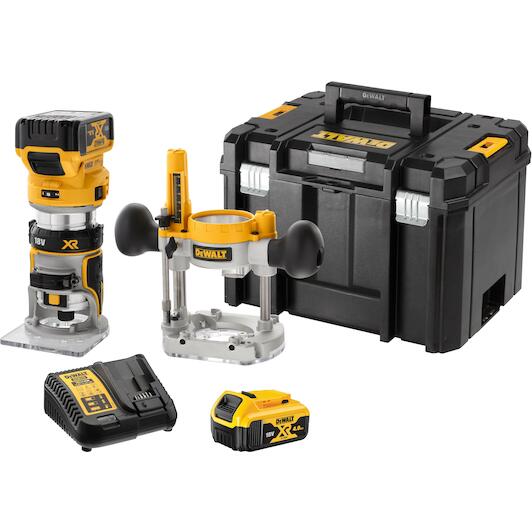

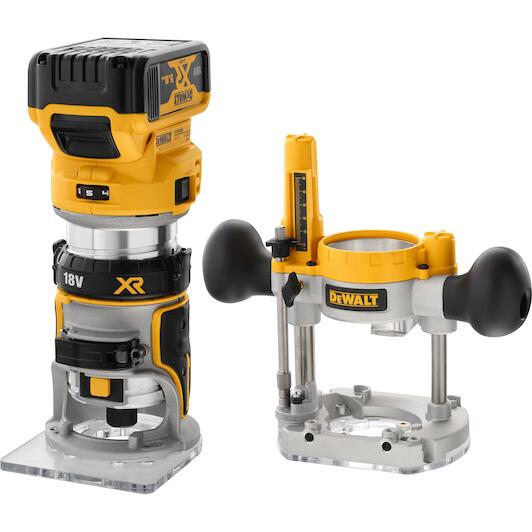

DEWALT DCW604P2-QW 18V XR Brushless cordless drop-in router with interchangeable soleplate in TSTAK (2x 5.0Ah battery + charger)

DEWALT
Supplier number: DEWALT DCW604P2-QW | EAN 5035048711835

Variant

DEWALT DCW604NT-XJ 18V XR Brushless cordless impact and edge router with interchangeable soleplate in TSTAK case (without battery and charger) DEWALT DCW604NT-XJ 18V XR Brushless cordless impact and edge router with interchangeable soleplate in TSTAK case (without battery and charger) DEWALT DCW604P2-QW 18V XR Brushless cordless drop-in router with interchangeable soleplate in TSTAK (2x 5.0Ah battery + charger) DEWALT DCW604P2-QW 18V XR Brushless cordless drop-in router with interchangeable soleplate in TSTAK (2x 5.0Ah battery + charger)
Recommended Retail Price €730.32
544.76 tax incl.
€450.21 excl. VAT (incl. all environmental contributions)
On stock - immediately available

✆ Talk to a specialist

*The promotional image featuring the free work light only applies to customers in the Netherlands and Belgium. The promotion is only valid in the Benelux.

Ultimate versatility with Dewalt

Practical benefits
  • Two interchangeable bases included: You switch seamlessly between edge trimming and plunge routing for varied woodworking tasks.
  • Precise variable speed control: You match the motor speed to the workpiece for clean, controlled cutting results.
  • Dual LED work lighting: You maintain full visibility of the cutting area thanks to the bright integrated lamps.

In a nutshell

The right choise for

The Dewalt DCW604P2-QW delivers complete cordless freedom and exceptional versatility for all your woodworking tasks. Featuring interchangeable fixed and plunge bases, you can switch seamlessly between detailed edge trimming and plunge routing grooves up to a 55 mm depth. The variable speed control from 16000 to 25500 rpm lets you match the tool output directly to the material, while dual led lights keep your cut line clearly visible. Supplied in a tstak case with two 18V 5.0Ah xr batteries and a multi-charger, this set keeps you working productively without downtime.



Product information Accessories FAQ
€544.76
In stock - tax incl.

Product information

Key features according to our expert

  • Battery voltage: 18 V
  • Supplied in: System case
  • Number of batteries included: 2
  • Compatible with guide rail: Yes, with optional accessory
  • UN number: UN3481
  • Restart protection: No
  • Type of system case: TStak
  • Weight: 2,4 kg
  • Vibration value (wood): 4,7 m/s²
  • Max. no-load speed: 25500 /min.
  • Min. no-load speed: 16000 /min.
  • Max. milling depth: 55 mm
  • Collet diameter: 1/4 inch; 8 mm
  • Capacity (battery): 5 Ah
  • Product Range: Dewalt 18V

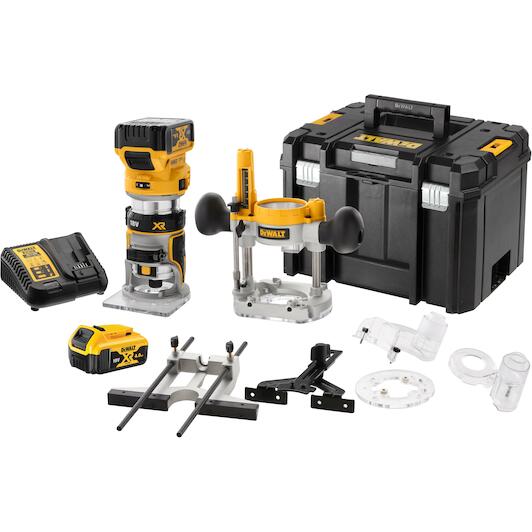

Scope of delivery

  • 8 mm collet
  • 17 mm spanner
  • Centring ring
  • 17 mm guide ring
  • Cutter housing with plunge function
  • Fixed base
  • Dust extraction on fixed base
  • Dust extraction on the plunge-cut housing
  • Parallel guide with guide rods
  • Basic parallel guide
  • TSTAK case
  • 2x 5.0Ah XR slide battery with charge indicator
  • XR multi charger

Product description

  • 18V XR Brushless Cutter with interchangeable soleplate 2x 5.0Ah in TSTAK

Features

  • The five-stage turret stop for milling depth adjustment allows grooving with different depths at once without time-consuming adjustment operations
  • The aluminium motor housing can be transferred to another fixed-base soleplate, making this machine even more versatile and ideal for edge routing
  • Built-in LED lights provide good visibility of the router when very precise work is required
  • Compact and lightweight design ensures ease of use
  • Spindle lock makes changing accessories easy
  • The plunge cutter with precise routing depth adjustment, makes each routing depth perfectly and accurately adjustable
  • Soft start reduces tool movement on start-up for greater ease of use.
  • Electronic motor brake gives even more control
  • Rubber grips are extra comfortable while using the saw
  • Electronically variable speed to set the ideal speed for the material being processed

All Features

Battery voltage
18 V
Supplied in
System case
Number of batteries included
2
Compatible with guide rail
Yes, with optional accessory
Un number
UN3481
Restart protection
No
Type of system case
TStak
Weight
2,4 kg
Vibration value (wood)
4,7 m/s²
Max. no-load speed
25500 /min.
Min. no-load speed
16000 /min.
Max. milling depth
55 mm
Collet diameter
1/4 inch; 8 mm
Capacity (battery)
5 Ah
Hand/arm vibration
6-8 (1/4") mm
Product range
Dewalt 18V
No load speed
55,0 mm
Battery capacity
5,0 Ah
Uncertainty k 1 (vibration)
2,4 m/s²
Length
7,0 m/s²
Sound power uncertainty
3,0 dB(A)
Max. cutting capacity at 45° [l-shape profile]
30,0 mm
Power output
Cordless
Wheel diameter
2,4 kg
Max. cutting capacity at 45° [rectangular profile]
16000 - 25500 rpm
Sound power
89,0 dB(A)
Sound pressure
78,0 dB(A)

Accessories

View more accessories (29)

Frequently asked questions about this product

Answered by specialists
What is included with the DCW604P2-QW?
You receive the router with fixed and plunge bases, 2x 18V 5.0Ah XR batteries, a multi-charger, a TSTAK case, parallel guides, and dust extraction adapters.
What is the maximum plunge depth of this router?
With the plunge base attached, the maximum routing depth is 55 mm.
Can the speed of this router be adjusted?
Yes, the no-load speed is variable between 16000 and 25500 rpm to match your material.
Which collet sizes are compatible with this tool?
The machine is compatible with 8 mm and 1/4 inch shank router bits.
Is this router compatible with other Dewalt batteries?
Yes, it works with all Dewalt 18V XR batteries.
