Which square drives are included with the Dewalt DCF510N-XJ?

The ratchet comes with interchangeable 3/8" and 1/2" square drives that can be fitted to either side of the head.

What is the maximum torque of this cordless ratchet?

The brushless motor delivers a maximum torque of 102 Nm with a no-load speed of up to 300 RPM.

Are a battery and charger included?

No, this is a bare unit supplied in a cardboard box. It is compatible with all Dewalt 18V XR batteries.

Does the tool have a work light?

Yes, it features an integrated LED work light to illuminate poorly lit working areas.

What are the weight and length of this tool?

The ratchet weighs 1.2 kg and has an overall length of 381 mm.

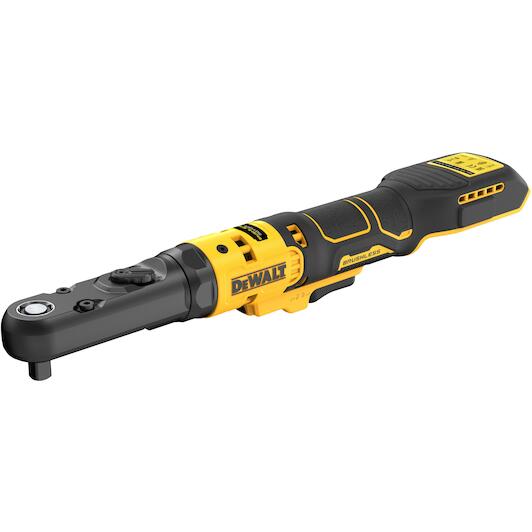

DEWALT DCF510N-XJ 18V XR Brushless angle cordless ratchet spanner 1/4" and 3/8" (without battery and charger)

Name: DEWALT DCF510N-XJ 18V XR Brushless angle cordless ratchet spanner 1/4" and 3/8" (without battery and charger)
Brand: DEWALT
SKU: 08097622
Price: 248.68 EUR
Availability: PreOrder

Supplier number: DEWALT DCF510N-XJ | EAN 5035048789667

Recommended Retail Price €313.84

248.68 tax incl.

€205.52 excl. VAT (incl. all environmental contributions)

On order: delivered from 27/10/2026

Delivery by DHL
Up to 5 years warranty on Dewalt after successful registration!

✆ Talk to a specialist

Reliable versatility in tight spaces

Practical benefits

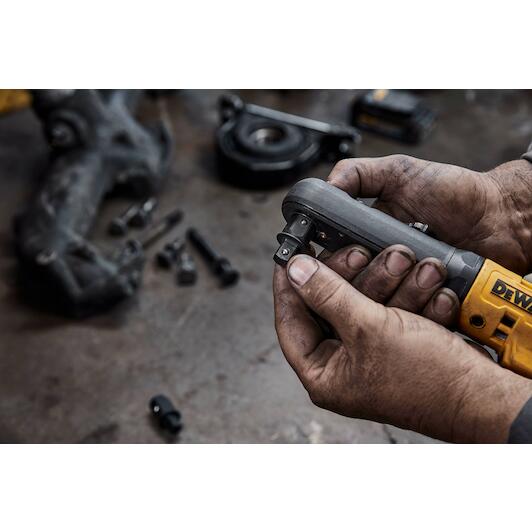

Interchangeable drive anvils: You can quickly switch between 3/8" and 1/2" square drives to tackle different fastener sizes efficiently.
Powerful brushless performance: Delivering up to 102 Nm of maximum torque, it easily fastens and breaks loose stubborn bolts.
Dewalt built-in work light: The integrated LED brightens dark workspaces so you always maintain clear visibility on the task.

In a nutshell

The right choise for

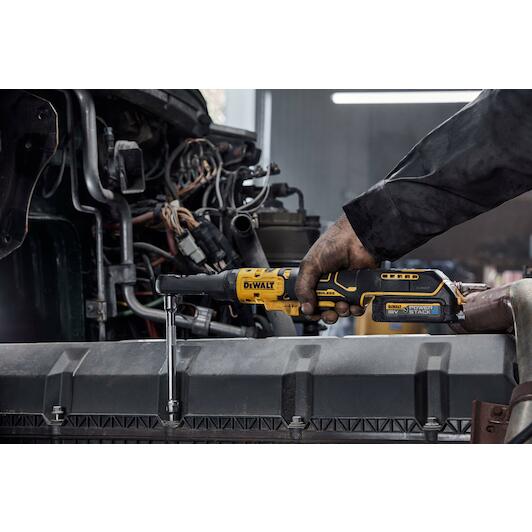

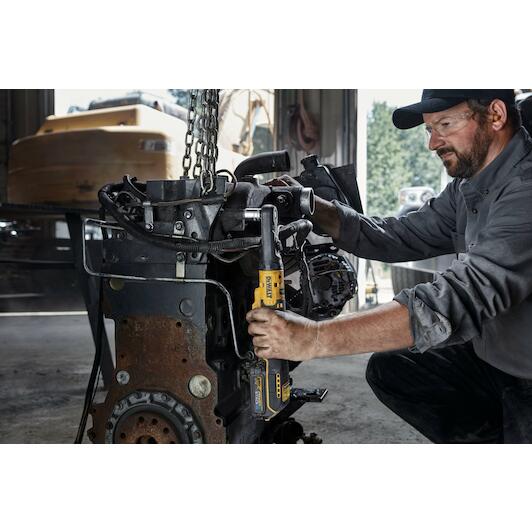

With the Dewalt DCF510N-XJ cordless ratchet, you work efficiently in tight and hard-to-reach spaces. Thanks to the interchangeable 3/8" and 1/2" square drives that fit on either side of the head, you switch between different fastener sizes in seconds. The powerful 18V brushless motor delivers up to 102 Nm of torque and a no-load speed of up to 300 RPM, making short work of stubborn bolts. Measuring 381 mm in length and weighing just 1.2 kg, it reduces hand and wrist strain during demanding jobs. The built-in led work light clearly illuminates dark working areas for total precision.

Product information FAQ

€248.68

tax incl.

Key features according to our expert

Battery voltage: 18 V
Supplied in: Cardboard box
With work light: Yes
Number of batteries included: 0
Weight: 1,2 kg
Type of system case: Not applicable
UN number: Not applicable
Overall length: 381 mm
Max. tightening torque: 102 Nm
Tool holder type: External square
Tool holder size: 3/8"; 1/2"
Product Range: Dewalt 18V

Scope of delivery

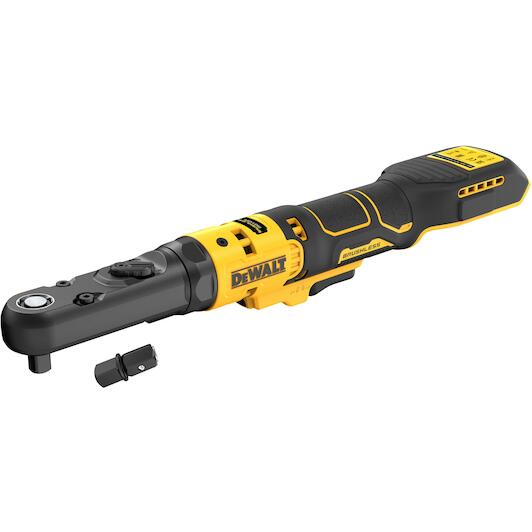

Interchangeable 3/8" + 1/2" drive square that can be inserted on both sides of the head

Product description

High working speed & high productivity: 102Nm torque and 300 rpm speed

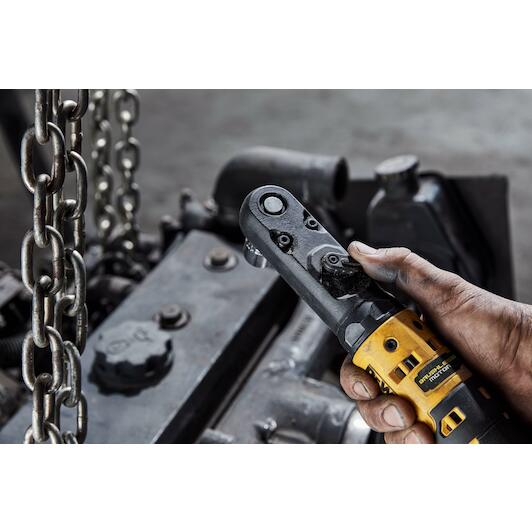

Closed head for high durability
LED for good visibility

All Features

Battery voltage: 18 V
Supplied in: Cardboard box
With work light: Yes
Number of batteries included: 0
Weight: 1,2 kg
Type of system case: Not applicable
Un number: Not applicable
Overall length: 381 mm
Max. tightening torque: 102 Nm
Tool holder type: External square
Tool holder size: 3/8"; 1/2"
Product range: Dewalt 18V

Brand DEWALT
08097622
EAN 5035048789667
Supplier number DEWALT DCF510N-XJ
Warranty Up to 5 years warranty on Dewalt after successful registration!

Frequently asked questions about this product

Answered by specialists

Which square drives are included with the Dewalt DCF510N-XJ?: The ratchet comes with interchangeable 3/8" and 1/2" square drives that can be fitted to either side of the head.
What is the maximum torque of this cordless ratchet?: The brushless motor delivers a maximum torque of 102 Nm with a no-load speed of up to 300 RPM.
Are a battery and charger included?: No, this is a bare unit supplied in a cardboard box. It is compatible with all Dewalt 18V XR batteries.
Does the tool have a work light?: Yes, it features an integrated LED work light to illuminate poorly lit working areas.
What are the weight and length of this tool?: The ratchet weighs 1.2 kg and has an overall length of 381 mm.
