What profile and dimensions does this V-belt have?

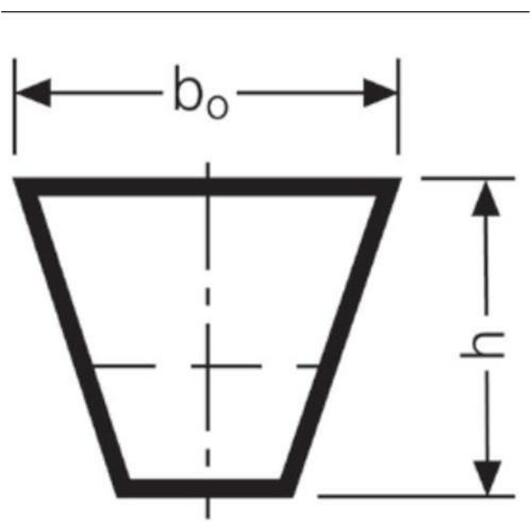

This narrow V-belt has an XPZ profile, a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 800 mm.

What are the outer and inner lengths of this belt?

The outer length La is 812 mm and the inside length Li is 762 mm (30 inches).

Which US RMA standard corresponds to this belt?

This belt conforms to RMA standard 3VX315 (also referenced as 3VX 315).

What material is the tension cord made of?

The tension member inside this V-belt is made of polyester (PE).

What is the operating temperature range for this V-belt?

This V-belt resists temperatures ranging from -40 °C to +130 °C.

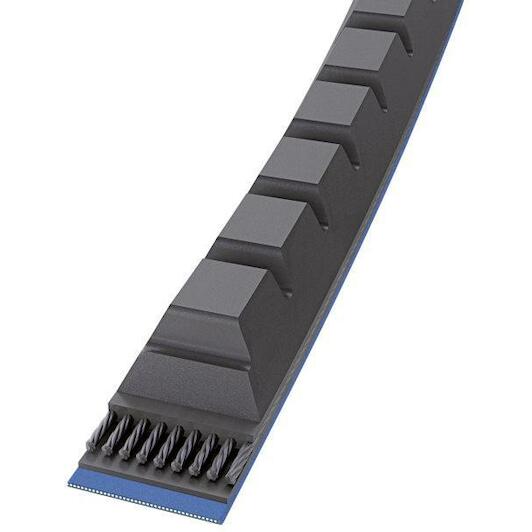

CONTI XPZ800P CONTI V FO PIONEER belt XPZ 800 Ld Pio 3VX 315

Name: CONTI XPZ800P CONTI V FO PIONEER belt XPZ 800 Ld Pio 3VX 315
Brand: CONTI
SKU: 02679009
Price: 21.05 EUR
Availability: PreOrder

Supplier number: CONTI XPZ800P | EAN 4010858979706

21.05 tax incl.

€17.39 excl. VAT (incl. all environmental contributions)

On order: delivered from 23/10/2026

Delivery by DHL

✆ Talk to a specialist

High-efficiency power transmission in compact drives

Practical benefits

Smooth and powerful drive: The Conti wedge belt provides continuous high torque transfer with reduced vibration across mechanical systems.
Molded teeth for flexibility: You achieve tight bending radiuses and smooth engagement thanks to molded cogs and a strong PE cord.
Extreme thermal tolerance range: Engineered with durable EPDM rubber, it withstands temperatures ranging from -40 °C up to +130 °C.

In a nutshell

The right choise for

With the Conti wedge belt, you achieve reliable, high-torque power transmission across heavy-duty industrial machinery. Its molded cogs and durable pe tension cord deliver smooth, low-vibration operation with exceptional flexibility around compact pulleys. Built from tough epdm rubber, it prevents slippage and operates dependably in extreme temperatures from -40 °C to +130 °C. Featuring an xpz profile, a 9.7 mm width, an 8 mm height, and a datum length Ld of 800 mm (RMA 3VX315), this belt is the ideal replacement for worn belts to keep machine downtime to a minimum.

Product information FAQ

€21.05

tax incl.

Key features according to our expert

Length: 800
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 800 mm
Inner length Li: 762 mm; 30 inch
Outer length La: 812 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX315
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 800
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 800 mm
Inner length li: 762 mm; 30 inch
Outer length la: 812 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX315
Colour (manufacturer): Black/Blue

Brand CONTI
02679009
EAN 4010858979706
Supplier number CONTI XPZ800P

Frequently asked questions about this product

Answered by specialists

What profile and dimensions does this V-belt have?: This narrow V-belt has an XPZ profile, a width of 9.7 mm, a height of 8 mm, and a datum length Ld of 800 mm.
What are the outer and inner lengths of this belt?: The outer length La is 812 mm and the inside length Li is 762 mm (30 inches).
Which US RMA standard corresponds to this belt?: This belt conforms to RMA standard 3VX315 (also referenced as 3VX 315).
What material is the tension cord made of?: The tension member inside this V-belt is made of polyester (PE).
What is the operating temperature range for this V-belt?: This V-belt resists temperatures ranging from -40 °C to +130 °C.
