What are the dimensions of this V-belt?

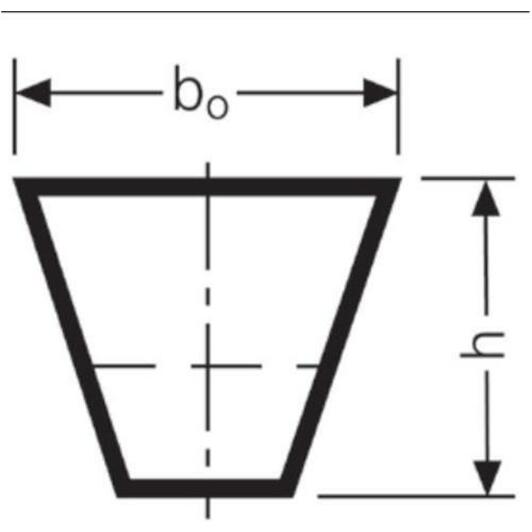

This belt has a width of 9,7 mm, a height of 8 mm, and a reference length Ld of 1750 mm.

What profile does this Conti V-belt have?

The belt has a cogged XPZ profile (corresponding to the RMA profile 3VX689).

What are the inside and outside lengths of this belt?

The outer length La is 1762 mm and the inside length Li is 67,401 inches.

What material is the tension cord made of?

The tension cord of this V-belt is made of PE (polyester).

What are the benefits of the cogged XPZ profile?

The molded teeth provide excellent flexibility, smooth running, and efficient power transmission.

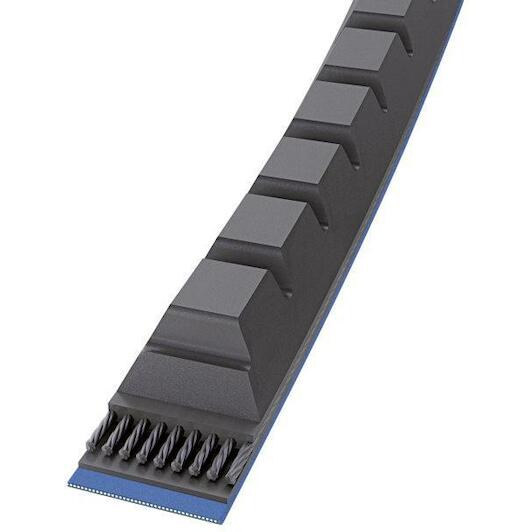

CONTI XPZ1750P CONTI V FO PIONEER belt XPZ 1750 Ld Pio 3VX 690

Name: CONTI XPZ1750P CONTI V FO PIONEER belt XPZ 1750 Ld Pio 3VX 690
Brand: CONTI
SKU: 02679145
Price: 44.38 EUR
Availability: InStock

Supplier number: CONTI XPZ1750P | EAN 4010858973957

44.38 tax incl.

€36.68 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Delivery by DHL

✆ Talk to a specialist

Reliable power transmission with XPZ 1750

Practical benefits

Efficient and high power transfer: The raw-edge cogged profile ensures you achieve high torque transmission with minimal slip and smooth running.
Superior flexibility and low stretch: With high-strength PE cords, you maintain constant belt tension and structural stability under heavy loads.
Resistant to extreme environments: You can depend on this belt across a wide operating temperature range from -40 °C to +130 °C.

In a nutshell

The right choise for

Keep your industrial machinery running reliably with the Conti xpz 1750 V-belt from the Conti V fo Pioneer series. Thanks to its raw-edge cogged xpz profile, you achieve efficient, high-torque power transmission with minimal slip and smooth flexibility. The durable polyester tension cords deliver superior dimensional stability, preventing belt stretch under heavy mechanical loads. Featuring a 9.7 mm width, 8 mm height, and a 1750 mm reference length Ld, this hard-wearing belt is ideal for demanding drives in pumps, compressors, and ventilation fans. It also operates dependably across extreme temperatures from -40 °C to +130 °C.

Product information FAQ

€44.38

In stock - tax incl.

Key features according to our expert

Length: 1750
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): XPZ
Reference length Ld: 1750 mm
Inner length (Li): 1712 mm; 67,401 inch
Outer length (La): 1762 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
RMA: 3VX689
Colour (manufacturer): Black/Blue

Product description:

Transversely stiff raw-edge heavy-duty V-belts according to DIN 7753, for powerful, sustained power transmission with enhanced running smoothness

Properties:

Temperature range from -40 °C to +130 °C
Application-specific
Very good flexibility thanks to molded teeth
Enhanced running smoothness
Matched-set L=L (from 1
000 mm) serial production
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1750
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): XPZ
Reference length ld: 1750 mm
Inner length (li): 1712 mm; 67,401 inch
Outer length (la): 1762 mm
Material (cord): PE
Product line: CONTI V FO PIONEER
Rma: 3VX689
Colour (manufacturer): Black/Blue

Brand CONTI
02679145
EAN 4010858973957
Supplier number CONTI XPZ1750P

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This belt has a width of 9,7 mm, a height of 8 mm, and a reference length Ld of 1750 mm.
What profile does this Conti V-belt have?: The belt has a cogged XPZ profile (corresponding to the RMA profile 3VX689).
What are the inside and outside lengths of this belt?: The outer length La is 1762 mm and the inside length Li is 67,401 inches.
What material is the tension cord made of?: The tension cord of this V-belt is made of PE (polyester).
What are the benefits of the cogged XPZ profile?: The molded teeth provide excellent flexibility, smooth running, and efficient power transmission.
