What are the dimensions of this timing belt?

The belt has a width of 16 mm, a pitch of 10 mm (T10 profile), and a roll length of 30000 mm (30 m).

What are the main applications for the Conti Synchrodrive belt?

This open-ended polyurethane timing belt is designed for linear drives, conveyor systems, and door or gate entry mechanisms.

What advantages does polyurethane provide?

Polyurethane ensures high wear resistance, dimensional stability, and resistance to oils, greases, UV radiation, and ozone.

Can this open-ended belt be welded into an endless loop?

Yes, because it is made of thermoplastic PU, it can be welded into an endless belt.

What is the operating temperature range for this belt?

This timing belt operates reliably within a temperature range of -30 °C to +80 °C.

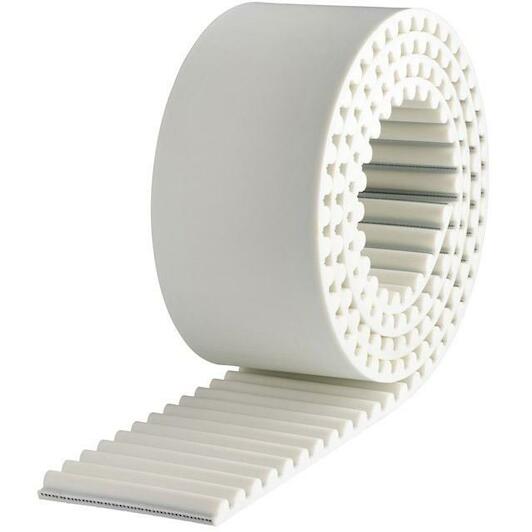

CONTI T10 16 HP-W-R30 Conti Synchrodrive timing belt - T1016HP-W-R30

Name: CONTI T10 16 HP-W-R30 Conti Synchrodrive timing belt - T1016HP-W-R30
Brand: CONTI
SKU: 02621028
Price: 15.39 EUR
Availability: InStock

Supplier number: CONTI T1016HP-W-R30 | EAN 4051817264761

15.39 tax incl.

€12.72 excl. VAT (incl. all environmental contributions)

On stock - immediately available

meter

Delivery by DHL

✆ Talk to a specialist

Conti Synchrodrive timing belt efficiency

Practical benefits

Accurate and synchronous transmission: The T10 profile with a 10 mm pitch ensures slip-free motion and exact positioning in linear drives and conveyor equipment.
Strong wear and chemical resistance: Durable polyurethane construction resists abrasion, oils, greases, and UV exposure to maintain dependable daily performance.
Easy custom endless welding: Supplied on a 30000 mm roll, you can cut and heat-weld the thermoplastic belt to your exact operational requirements.

In a nutshell

The right choise for

With the Conti Synchrodrive T10 timing belt, you achieve reliable and synchronous power transmission without slippage. Featuring a T10 profile with a 10 mm pitch and a 16 mm width, it delivers precise positioning for linear drives, conveyor systems, and door mechanisms. The wear-resistant white polyurethane construction stands up to oils, greases, uv exposure, and ozone, while operating across a temperature range of -30 °C to +80 °C. Supplied on a 30000 mm roll, this open-ended belt lets you cut exact lengths for custom installations and heat-weld the thermoplastic material into a continuous endless loop.

Product information FAQ

€15.39

In stock - tax incl.

Key features according to our expert

Length: 30000
Pitch: 10 mm
Width: 16 mm
Profile (timing belt): T10
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Product description:

Open-ended polyurethane timing belts for linear and transport technology, entry systems

Properties:

Temperature range from -30 °C to +80 °C (please request technical advice for temperatures below -10 °C and above +50 °C)
Can be welded with thermoplastics
Wear-resistant
Raw materials and production are silicone free
Resistant to fuel and benzene
Oil- and grease-resistant
Resistant to UV and ozone
Suitable for tropical climates
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 30000
Pitch: 10 mm
Width: 16 mm
Profile (timing belt): T10
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Brand CONTI
02621028
EAN 4051817264761
Supplier number CONTI T1016HP-W-R30

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this timing belt?: The belt has a width of 16 mm, a pitch of 10 mm (T10 profile), and a roll length of 30000 mm (30 m).
What are the main applications for the Conti Synchrodrive belt?: This open-ended polyurethane timing belt is designed for linear drives, conveyor systems, and door or gate entry mechanisms.
What advantages does polyurethane provide?: Polyurethane ensures high wear resistance, dimensional stability, and resistance to oils, greases, UV radiation, and ozone.
Can this open-ended belt be welded into an endless loop?: Yes, because it is made of thermoplastic PU, it can be welded into an endless belt.
What is the operating temperature range for this belt?: This timing belt operates reliably within a temperature range of -30 °C to +80 °C.
