What are the main dimensions of this timing belt?

This belt features a nominal length of 1312 mm, a width of 20 mm, an 8 mm pitch, and 164 teeth.

Which tooth profile does this timing belt have?

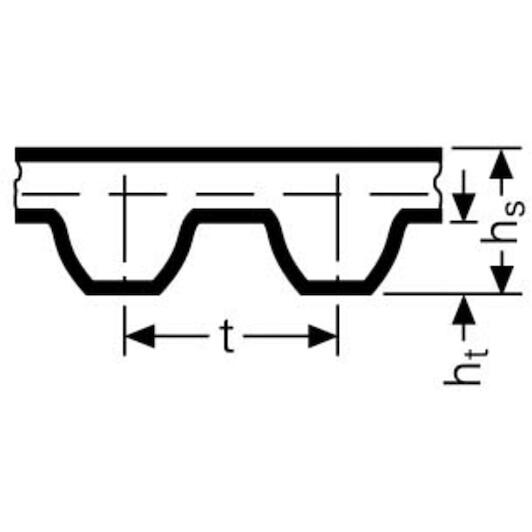

The belt features the S8M STD profile with a curved tooth shape for precise and quiet power transmission.

What types of drives is the Conti Synchrobelt designed for?

It is designed for synchronous industrial drives in the lower to medium power range.

What is the operating temperature range?

The belt operates reliably in temperatures ranging from -20 °C to +100 °C depending on the application.

Does this timing belt require regular maintenance?

No, this belt is maintenance-free and requires no lubrication under normal operating conditions.

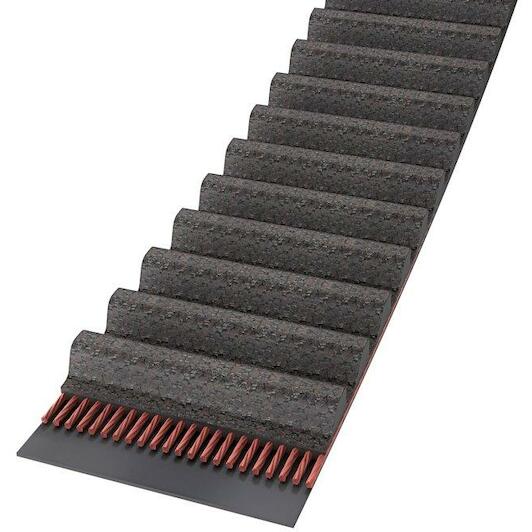

CONTI STD 1312 S8M 20 Conti Synchrobelt timing belt - STD8131220

Name: CONTI STD 1312 S8M 20 Conti Synchrobelt timing belt - STD8131220
Brand: CONTI
SKU: 05110373
Price: 64.84 EUR
Availability: PreOrder

Supplier number: CONTI STD8131220 | EAN

64.84 tax incl.

€53.59 excl. VAT (incl. all environmental contributions)

On order: delivered from 13/10/2026

Delivery by DHL

✆ Talk to a specialist

Efficient power transmission with Conti Synchrobelt

Practical benefits

Smooth and quiet operation: The STD S8M profile ensures optimal tooth engagement with the pulley to give you precise and low-noise performance.
Constant pitch without stretching: Embedded glass fiber cords maintain the 1312 mm length securely under tension to keep your machine synchronized.
Resilient maintenance-free construction: Built with a 20 mm width, this durable rubber belt handles operating temperatures from -20 °C to +100 °C effortlessly.

In a nutshell

The right choise for

With the Conti Synchrobelt std S8m 1312 timing belt, you ensure reliable, slip-free power transmission in your industrial machinery. Featuring a 20 mm width, an 8 mm pitch, and 164 teeth, this belt uses a curved std S8m profile to deliver quiet and precise tooth engagement. Embedded glass fiber cords prevent stretching under load, keeping the 1312 mm length securely synchronized. Built to withstand operating temperatures from -20 °C to +100 °C, this durable rubber belt is completely maintenance-free, keeping your conveyor systems and drive setups running smoothly without lubrication.

Product information FAQ

€64.84

tax incl.

Key features according to our expert

Length: 1312
Pitch: 8 mm
Width: 20 mm
Profile (timing belt): S8M
Product line: CONTI SYNCHROBELT
Nominal length: 1312 mm
Number of teeth: 164

Product description:

Timing belts for the lower and medium power range

Properties:

Temperature range
Depending on application
From -20 °C to +100 °C
Conditionally resistant to oil
Ozone-resistant
Suitable for tropical climates
Aging-resistant
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 1312
Pitch: 8 mm
Width: 20 mm
Profile (timing belt): S8M
Product line: CONTI SYNCHROBELT
Nominal length: 1312 mm
Number of teeth: 164

Brand CONTI
05110373
EAN
Supplier number CONTI STD8131220

Frequently asked questions about this product

Answered by specialists

What are the main dimensions of this timing belt?: This belt features a nominal length of 1312 mm, a width of 20 mm, an 8 mm pitch, and 164 teeth.
Which tooth profile does this timing belt have?: The belt features the S8M STD profile with a curved tooth shape for precise and quiet power transmission.
What types of drives is the Conti Synchrobelt designed for?: It is designed for synchronous industrial drives in the lower to medium power range.
What is the operating temperature range?: The belt operates reliably in temperatures ranging from -20 °C to +100 °C depending on the application.
Does this timing belt require regular maintenance?: No, this belt is maintenance-free and requires no lubrication under normal operating conditions.
