What are the exact dimensions of this V-belt?

The belt has an SPZ profile with a width of 9.7 mm, a height of 8 mm, a datum length Ld of 1000 mm, and an outer length La of 1012 mm.

What does the L=L marking from Conti indicate?

It indicates matched-set manufacturing tolerances. This allows you to combine multiple belts in multi-groove drives without prior measuring or sorting.

Which alternative profile standards correspond to this belt?

The SPZ profile corresponds to the US standard 3V (RMA 3V394) as well as the 9N designation.

What material is used for the tension cord?

The internal tension cord is made of polyester (PE), providing high tensile strength and minimal elongation during operation.

Is this V-belt resistant to harsh operating conditions?

Yes, it is antistatic according to ISO 1813, dust-proof, moderately oil-resistant, and suitable for temperatures from -55 °C to +70 °C.

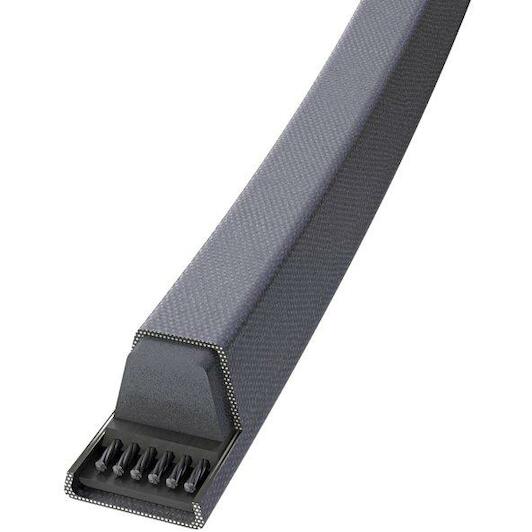

CONTI SPZ1000 CONTI V-belt SPZ 1000

Name: CONTI SPZ1000 CONTI V-belt SPZ 1000
Brand: CONTI
SKU: 05010045
Price: 21.67 EUR
Availability: InStock

Supplier number: CONTI SPZ1000 | EAN 4010858713041

21.67 tax incl.

€17.91 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

✆ Talk to a specialist

Reliable power transmission with the narrow V-belt

Practical benefits

Efficient heavy-duty power delivery: The compact SPZ profile and polyester tension cord ensure strong power transmission with minimal operational stretch.
Perfect for matched sets: Precise length tolerances allow you to install multiple belts on multi-groove drives without uneven tension.
Resilient in tough environments: The wrapped fabric cover protects against dust, moderate oil contact, and operating temperatures from -55 °C to 70 °C.

In a nutshell

The right choise for

With the Conti-V V-belt SPZ1000, you ensure powerful and reliable power transmission across your industrial machinery, workshop compressors, pumps, and hvac ventilation systems. Featuring a compact spz profile measuring 9.7 mm in width and 8 mm in height, combined with a strong polyester tension cord, it delivers rotational drive with minimal belt stretch. Easily replace worn or slipping belts. Thanks to the L=L matched-set tolerance, you can install multiple belts on multi-groove drives without uneven tension. Its protective wrapped cover makes the belt dust-proof, moderately oil-resistant, antistatic to iso 1813, and resilient in temperatures from -55 °C to 70 °C.

Product information FAQ

€21.67

In stock - tax incl.

Key features according to our expert

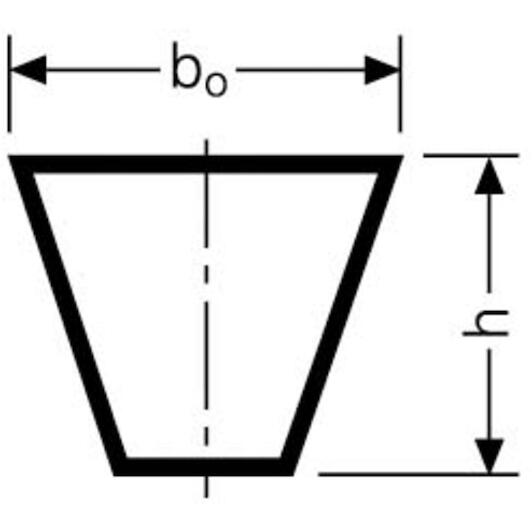

Length: 1000
Width: 9,7 mm
Height: 8 mm
Profile (V-belt): SPZ
Reference length Ld: 1000 mm
Inner length (Li): 962 mm; 37,874 inch
Outer length (La): 1012 mm
Material (cord): PE
Product line: CONTI V
RMA: 3V394
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1000
Width: 9,7 mm
Height: 8 mm
Profile (v-belt): SPZ
Reference length ld: 1000 mm
Inner length (li): 962 mm; 37,874 inch
Outer length (la): 1012 mm
Material (cord): PE
Product line: CONTI V
Rma: 3V394
Colour (manufacturer): Black

Brand CONTI
05010045
EAN 4010858713041
Supplier number CONTI SPZ1000

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: The belt has an SPZ profile with a width of 9.7 mm, a height of 8 mm, a datum length Ld of 1000 mm, and an outer length La of 1012 mm.
What does the L=L marking from Conti indicate?: It indicates matched-set manufacturing tolerances. This allows you to combine multiple belts in multi-groove drives without prior measuring or sorting.
Which alternative profile standards correspond to this belt?: The SPZ profile corresponds to the US standard 3V (RMA 3V394) as well as the 9N designation.
What material is used for the tension cord?: The internal tension cord is made of polyester (PE), providing high tensile strength and minimal elongation during operation.
Is this V-belt resistant to harsh operating conditions?: Yes, it is antistatic according to ISO 1813, dust-proof, moderately oil-resistant, and suitable for temperatures from -55 °C to +70 °C.
