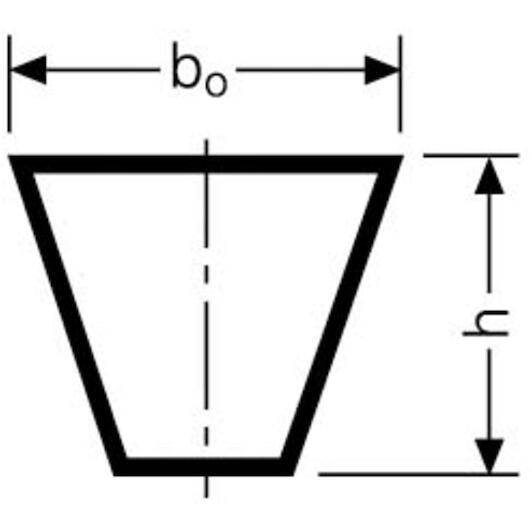

What are the dimensions of this V-belt?

This V-belt features an SPB profile with a width of 16.3 mm and a height of 13 mm.

What are the length specifications for this model?

The datum length (Ld) is 1450 mm and the outside length (La) is 1472 mm.

What does the L=L designation mean?

L=L indicates matched factory length tolerances, allowing you to use multiple belts in a drive set without sorting.

Which RMA and profile standards does this belt match?

It features an SPB profile and corresponds to RMA code 5V571 as well as SPB/5V/15N.

What material is used for the tension cord?

The internal tension cord is made of polyester (PE) for reliable power transmission.

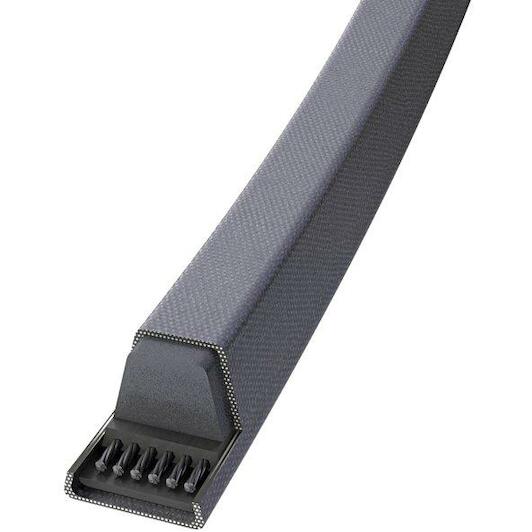

CONTI SPB1450 CONTI V-belt SPB 1450

Name: CONTI SPB1450 CONTI V-belt SPB 1450
Brand: CONTI
SKU: 05010269
Price: 66.71 EUR
Availability: InStock

Supplier number: CONTI SPB1450 | EAN 4010858740481

66.71 tax incl.

€55.13 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

✆ Talk to a specialist

Dependable power delivery with Conti

Practical benefits

Smooth matched set operation: You can fit multiple belts side by side with consistent tolerances, preventing uneven mechanical stress and premature wear.
Resistant to tough environments: Built to endure demanding operations, this profile reliably withstands industrial dust, temperature swings, and light oil exposure.
Minimal stretch under load: The embedded PE cord provides high dimensional stability, so you avoid frequent re-tensioning during heavy machinery use.

In a nutshell

The right choise for

Keep your heavy industrial machinery, compressors, pumps, and fans running smoothly with the Conti Conti-V spb 1450 V-belt. Thanks to the exact L=L length tolerance, you can install matched sets directly onto multi-groove drives without tedious manual measuring or uneven tension. Featuring an spb profile measuring 16.3 mm wide and 13 mm high, this belt relies on a strong embedded pe tension cord to maintain stable tension and resist stretching under high load. This prevents power loss, avoids slippage, and cuts down on frequent re-tensioning during tough daily workshop operations.

Product information FAQ

€66.71

In stock - tax incl.

Key features according to our expert

Length: 1450
Width: 16,3 mm
Height: 13 mm
Profile (V-belt): SPB
Reference length Ld: 1450 mm
Inner length (Li): 1390 mm; 54,724 inch
Outer length (La): 1472 mm
Material (cord): PE
Product line: CONTI V
RMA: 5V571
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 1450
Width: 16,3 mm
Height: 13 mm
Profile (v-belt): SPB
Reference length ld: 1450 mm
Inner length (li): 1390 mm; 54,724 inch
Outer length (la): 1472 mm
Material (cord): PE
Product line: CONTI V
Rma: 5V571
Colour (manufacturer): Black

Brand CONTI
05010269
EAN 4010858740481
Supplier number CONTI SPB1450

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this V-belt?: This V-belt features an SPB profile with a width of 16.3 mm and a height of 13 mm.
What are the length specifications for this model?: The datum length (Ld) is 1450 mm and the outside length (La) is 1472 mm.
What does the L=L designation mean?: L=L indicates matched factory length tolerances, allowing you to use multiple belts in a drive set without sorting.
Which RMA and profile standards does this belt match?: It features an SPB profile and corresponds to RMA code 5V571 as well as SPB/5V/15N.
What material is used for the tension cord?: The internal tension cord is made of polyester (PE) for reliable power transmission.
