What are the dimensions and profile of this belt?

This timing belt has a width of 15 mm, a tooth pitch of 5 mm with an HTD 5M profile, and a nominal length of 30000 mm.

What is this Conti Synchrodrive belt used for?

It is designed for linear drives, conveyor systems, and precise positioning mechanisms in industrial machinery.

What material is this timing belt made of?

The belt is made of wear-resistant black polyurethane (PU) reinforced with high-strength steel tension cords.

Can this open-ended belt be cut to size or welded?

Yes, you can cut this open belt to your required length or weld it thermoplastically into an endless timing belt.

What does the HP designation stand for?

HP stands for High Power, indicating a reinforced construction designed for higher tensile strength and power loads.

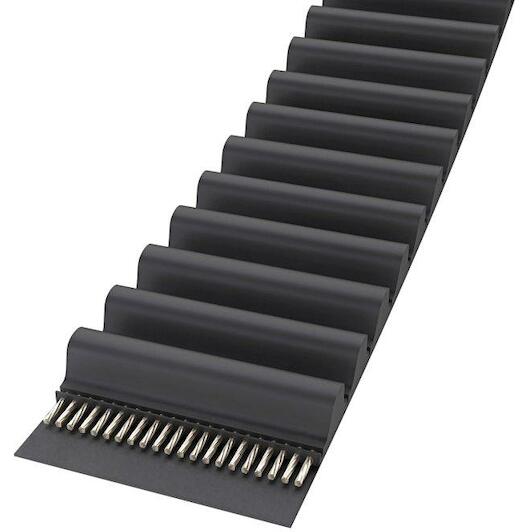

CONTI HTD 5M 15 HP Conti Synchrodrive timing belt - HTD515HP-B

Name: CONTI HTD 5M 15 HP Conti Synchrodrive timing belt - HTD515HP-B
Brand: CONTI
SKU: 02231940
Price: 18.68 EUR
Availability: InStock

Supplier number: CONTI HTD515HP-B | EAN 4051817241656

18.68 tax incl.

€15.44 excl. VAT (incl. all environmental contributions)

On stock - immediately available

meter

Delivery by DHL

✆ Talk to a specialist

Precise power transmission with Conti Synchrodrive

Practical benefits

High wear resistance: Built from durable polyurethane, it gives you dependable operation with minimal wear under continuous industrial use.
Accurate and synchronous tracking: The HTD 5M tooth profile ensures you achieve slip-free motion and exact linear positioning in your drive systems.
Reliable chemical resistance: You can deploy this timing belt safely in demanding environments exposed to oils, grease, and fuels.

In a nutshell

The right choise for

With the Conti Synchrodrive htd 5m 15 hp pu timing belt, you achieve dependable and exact power transmission across your drive and conveyor systems. Built from wear-resistant black polyurethane reinforced with high-strength steel cords, it delivers minimal elongation and outstanding durability under demanding industrial operation. The proven htd 5m tooth profile, featuring a 15 mm width and a 5 mm pitch, prevents slippage to ensure synchronous motion and accurate positioning. Resistant to oils, greases, and fuels, it performs reliably in harsh operating environments. Supplied as open-ended belting with a nominal length of 30000 mm, you can easily cut it to custom lengths or weld it into an endless drive belt.

Product information FAQ

€18.68

In stock - tax incl.

Key features according to our expert

Length: 30000
Pitch: 5 mm
Width: 15 mm

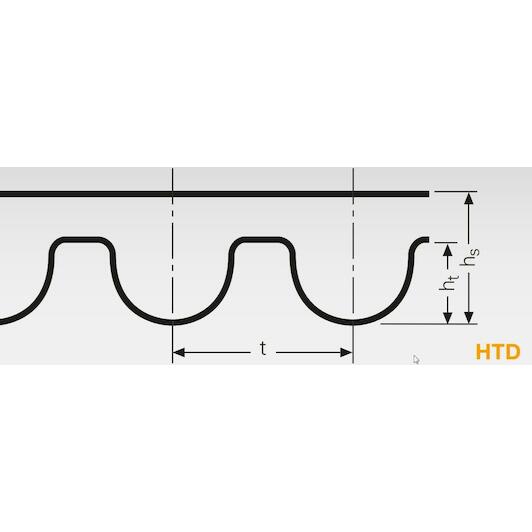

Profile (timing belt): HTD 5M
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Product description:

Open-ended polyurethane timing belts for linear and transport technology, entry systems

Properties:

Temperature range from -30 °C to +80 °C (please request technical advice for temperatures below -10 °C and above +50 °C)
Can be welded with thermoplastics
Wear-resistant
Raw materials and production are silicone free
Resistant to fuel and benzene
Oil- and grease-resistant
Resistant to UV and ozone
Suitable for tropical climates
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free

All Features

Length: 30000
Pitch: 5 mm
Width: 15 mm
Profile (timing belt): HTD 5M
Product line: CONTI SYNCHRODRIVE
Nominal length: 30000 mm

Brand CONTI
02231940
EAN 4051817241656
Supplier number CONTI HTD515HP-B

Frequently asked questions about this product

Answered by specialists

What are the dimensions and profile of this belt?: This timing belt has a width of 15 mm, a tooth pitch of 5 mm with an HTD 5M profile, and a nominal length of 30000 mm.
What is this Conti Synchrodrive belt used for?: It is designed for linear drives, conveyor systems, and precise positioning mechanisms in industrial machinery.
What material is this timing belt made of?: The belt is made of wear-resistant black polyurethane (PU) reinforced with high-strength steel tension cords.
Can this open-ended belt be cut to size or welded?: Yes, you can cut this open belt to your required length or weld it thermoplastically into an endless timing belt.
What does the HP designation stand for?: HP stands for High Power, indicating a reinforced construction designed for higher tensile strength and power loads.
