What profile and cross-section dimensions does this V-belt have?

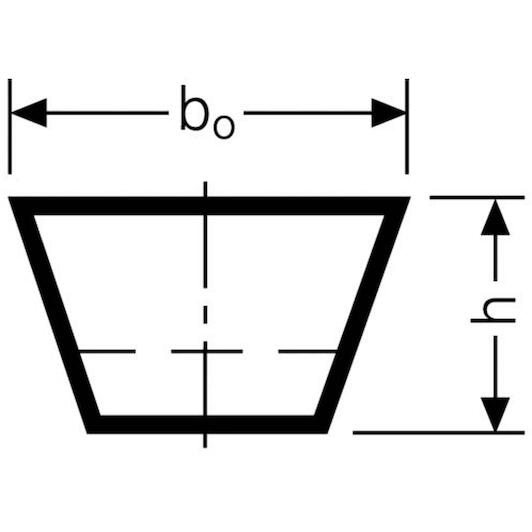

This belt features an AX profile with a top width of 13 mm and a height of 8 mm.

What are the exact length specifications of this V-belt?

The inside length (Li) is 2845 mm (112 inches), the datum length (Ld) is 2875 mm, and the outside length (La) is 2895 mm.

What does the L=L designation mean for this belt?

L=L indicates matched manufacturing tolerances, allowing belts to be used directly in matched sets on multi-groove drives.

What material is used for the tension cord?

The internal tension cord of this V-belt is made of PE (polyester).

What are the characteristics of the Conti-V FO product line?

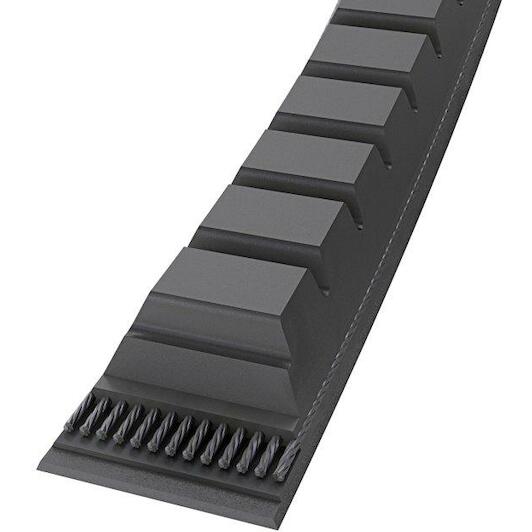

These are raw-edge, molded cogged V-belts designed for enhanced flexibility and efficient grip on compact pulley systems.

CONTI AX1120 CONTI V FO belt AX 112 2845 Li / 2875 Ld

Name: CONTI AX1120 CONTI V FO belt AX 112 2845 Li / 2875 Ld
Brand: CONTI
SKU: 02656584
Price: 70.59 EUR
Availability: InStock

Supplier number: CONTI AX1120 | EAN 4010858977733

70.59 tax incl.

€58.34 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 82.

Delivery by DHL

✆ Talk to a specialist

Reliable power transmission with AX 112

Practical benefits

Flexible raw edge design: The molded cogged construction easily handles smaller pulleys, giving you smooth and energy-efficient drive operation.
High tensile cord stability: The embedded polyester tension member prevents premature elongation, ensuring you maintain consistent tension without frequent retensioning.
Durable and wear resistant: Engineered rubber compounds resist friction and operational heat, allowing you to run machinery smoothly over long duty cycles.

In a nutshell

The right choise for

With the Conti Conti-V fo ax 112 V-belt, you ensure dependable power transmission across industrial machinery, agricultural equipment, and hvac systems. The raw-edge, molded cogged construction flexes smoothly over small pulleys, reducing vibration and enhancing heat dissipation on demanding high-speed drives. Thanks to the embedded pe tension cord, the belt maintains consistent tension without premature elongation or frequent retensioning. Featuring an ax profile with a 13 mm width, 8 mm height, 2845 mm inside length (112 inches), and 2875 mm datum length, it delivers a precise fit. The matched L=L tolerance also enables immediate use in multi-groove matched sets.

Product information FAQ

€70.59

In stock - tax incl.

Key features according to our expert

Length: 112
Width: 13 mm
Height: 8 mm
Profile (V-belt): AX
Reference length Ld: 2875 mm
Inner length (Li): 2845 mm; 112 inch
Outer length (La): 2895 mm
Material (cord): PE
Product line: CONTI V FO
RMA: AX112
Colour (manufacturer): Black

Product description:

Raw-edge V-belts for demanding drives to DIN 2215

Properties:

Temperature range from -30 °C to +70 °C
Very good flexibility thanks to molded teeth
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
(from 3
500 mm length electrically conductive after testing)
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 112
Width: 13 mm
Height: 8 mm
Profile (v-belt): AX
Reference length ld: 2875 mm
Inner length (li): 2845 mm; 112 inch
Outer length (la): 2895 mm
Material (cord): PE
Product line: CONTI V FO
Rma: AX112
Colour (manufacturer): Black

Brand CONTI
02656584
EAN 4010858977733
Supplier number CONTI AX1120

Frequently asked questions about this product

Answered by specialists

What profile and cross-section dimensions does this V-belt have?: This belt features an AX profile with a top width of 13 mm and a height of 8 mm.
What are the exact length specifications of this V-belt?: The inside length (Li) is 2845 mm (112 inches), the datum length (Ld) is 2875 mm, and the outside length (La) is 2895 mm.
What does the L=L designation mean for this belt?: L=L indicates matched manufacturing tolerances, allowing belts to be used directly in matched sets on multi-groove drives.
What material is used for the tension cord?: The internal tension cord of this V-belt is made of PE (polyester).
What are the characteristics of the Conti-V FO product line?: These are raw-edge, molded cogged V-belts designed for enhanced flexibility and efficient grip on compact pulley systems.
