What are the exact dimensions of this V-belt?

The belt features a B profile with a width of 17 mm and a height of 11 mm. The inside length (Li) is 3450 mm (136 inches), datum length (Ld) is 3495 mm, and outside length (La) is 3519 mm.

What does the L=L designation mean on this V-belt?

L=L indicates matched set tolerances. This allows you to use multiple belts of the same size together in multi-groove drives without length variations.

What is the operating temperature range for this belt?

This drive belt operates reliably within a temperature range from -55 °C to +70 °C.

What material is the tension cord made of?

The internal tension cord is made of polyester (PE), providing high tensile strength and dimensional stability.

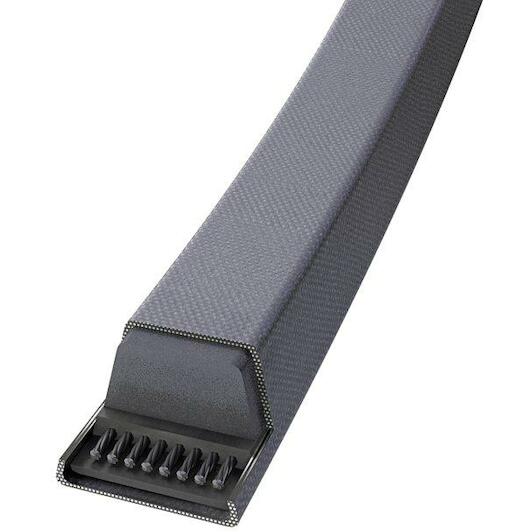

CONTI 17.0X3450 CONTI V belt 17.0X 3450 Li / 3495 Ld B 136

Name: CONTI 17.0X3450 CONTI V belt 17.0X 3450 Li / 3495 Ld B 136
Brand: CONTI
SKU: 05030323
Price: 118.14 EUR
Availability: PreOrder

Supplier number: CONTI 17.0X3450 | EAN 4010858163457

118.14 tax incl.

€97.64 excl. VAT (incl. all environmental contributions)

On order: delivered from 30/10/2026

Delivery by DHL

✆ Talk to a specialist

Dependable power transmission for machinery

Practical benefits

Efficient torque transfer: The classical B profile ensures you achieve steady power transmission with minimal slippage in demanding machine drives.
High tensile strength: The reinforced PE cord prevents excessive stretching, helping you maintain consistent belt tension throughout operation.
Reliable environmental resistance: The antistatic design and broad temperature tolerance protect you against performance loss in harsh operating environments.

In a nutshell

The right choise for

With the Conti Conti-V V-belt b 136, you ensure dependable, smooth power transmission across industrial machinery, hvac ventilation fans, pumps, and agricultural equipment. The classical b profile, measuring 17 mm in width and 11 mm in height, delivers efficient torque transfer while eliminating slippage. Reinforced with a high-strength pe tension cord, the belt resists stretching, maintains consistent tension, and prevents drive vibration. Thanks to the L=L matched manufacturing tolerance, you can combine multiple belts in multi-groove configurations without length discrepancies. Operating reliably from -55 °C to +70 °C, it keeps your heavy-duty mechanical drives running smoothly in demanding environments.

Product information FAQ

€118.14

tax incl.

Key features according to our expert

Length: 136
Width: 17 mm
Height: 11 mm
Profile (V-belt): B
Reference length Ld: 3495 mm
Inner length (Li): 3450 mm; 136 inch
Outer length (La): 3519 mm
Material (cord): PE
Product line: CONTI V
RMA: B136
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 136
Width: 17 mm
Height: 11 mm
Profile (v-belt): B
Reference length ld: 3495 mm
Inner length (li): 3450 mm; 136 inch
Outer length (la): 3519 mm
Material (cord): PE
Product line: CONTI V
Rma: B136
Colour (manufacturer): Black

Brand CONTI
05030323
EAN 4010858163457
Supplier number CONTI 17.0X3450

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: The belt features a B profile with a width of 17 mm and a height of 11 mm. The inside length (Li) is 3450 mm (136 inches), datum length (Ld) is 3495 mm, and outside length (La) is 3519 mm.
What does the L=L designation mean on this V-belt?: L=L indicates matched set tolerances. This allows you to use multiple belts of the same size together in multi-groove drives without length variations.
What is the operating temperature range for this belt?: This drive belt operates reliably within a temperature range from -55 °C to +70 °C.
What material is the tension cord made of?: The internal tension cord is made of polyester (PE), providing high tensile strength and dimensional stability.
