What are the exact dimensions of this V-belt?

It has a B profile (17/B) with a 17 mm top width and 11 mm height. The inside length (Li) is 1150 mm (45 inches), the datum length (Ld) is 1195 mm, and the outside length (La) is 1219 mm.

What does the L=L designation mean on this V-belt?

The L=L marking indicates matched tolerance manufacturing, allowing you to use multiple belts together in multi-groove drives without manual matching.

What material is the tension cord made of?

The tension cord inside this wrapped Conti V-belt is made of polyester (PE), providing high tensile strength and dimensional stability.

What applications is the B profile suitable for?

This classic B profile is designed for industrial, mechanical, agricultural, and transport machinery using matching B/17 V-belt pulleys.

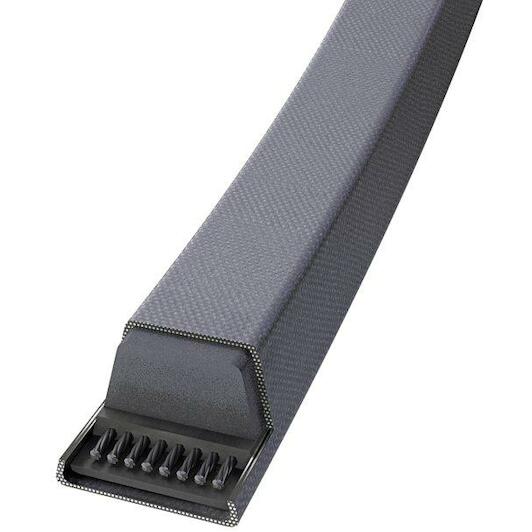

CONTI 17.0X1150 CONTI V-belt 17.0X 1150 Li / 1195 Ld B 45

Name: CONTI 17.0X1150 CONTI V-belt 17.0X 1150 Li / 1195 Ld B 45
Brand: CONTI
SKU: 05030236
Price: 40.9 EUR
Availability: InStock

Supplier number: CONTI 17.0X1150 | EAN 4010858361150

40.90 tax incl.

€33.80 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

✆ Talk to a specialist

Reliable power transmission with Conti

Practical benefits

Smooth and steady drive: With the reinforced polyester tension cord, you achieve dependable power transfer without unwanted stretching or loss of efficiency.
Tough against demanding conditions: You can operate machinery in dusty environments thanks to built-in resistance to dust and moderate oil exposure.
Matched for multiple drives: The L=L manufacturing tolerance allows you to easily fit multiple belts in a drive set with uniform tension.

In a nutshell

The right choise for

With the Conti Conti-V b 45 V-belt, you ensure dependable, steady power transmission across your drive systems. The reinforced polyester tension cord prevents belt slip and transfers motor power efficiently to your B/17 pulleys, even under demanding mechanical loads in factories, workshops, or agricultural machinery. Its robust wrapped design performs reliably in dusty conditions and with moderate exposure to oil. Featuring a top width of 17 mm, a height of 11 mm, and an inside length of 1150 mm, it fits precisely. Thanks to the L=L manufacturing tolerance, you can easily install matched belt sets with perfectly uniform tension.

Product information FAQ

€40.90

In stock - tax incl.

Key features according to our expert

Length: 45
Width: 17 mm
Height: 11 mm
Profile (V-belt): B
Reference length Ld: 1195 mm
Inner length Li: 1150 mm; 45 inch
Outer length La: 1219 mm
Material (cord): PE
Product line: CONTI V
RMA: B45
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 45
Width: 17 mm
Height: 11 mm
Profile (v-belt): B
Reference length ld: 1195 mm
Inner length li: 1150 mm; 45 inch
Outer length la: 1219 mm
Material (cord): PE
Product line: CONTI V
Rma: B45
Colour (manufacturer): Black

Brand CONTI
05030236
EAN 4010858361150
Supplier number CONTI 17.0X1150

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: It has a B profile (17/B) with a 17 mm top width and 11 mm height. The inside length (Li) is 1150 mm (45 inches), the datum length (Ld) is 1195 mm, and the outside length (La) is 1219 mm.
What does the L=L designation mean on this V-belt?: The L=L marking indicates matched tolerance manufacturing, allowing you to use multiple belts together in multi-groove drives without manual matching.
What material is the tension cord made of?: The tension cord inside this wrapped Conti V-belt is made of polyester (PE), providing high tensile strength and dimensional stability.
What applications is the B profile suitable for?: This classic B profile is designed for industrial, mechanical, agricultural, and transport machinery using matching B/17 V-belt pulleys.
