What are the exact dimensions of this V-belt?

This V-belt has a top width of 13 mm, a height of 8 mm, an inside length Li of 1625 mm (64"), and a datum length Ld of 1655 mm.

Which profile does this V-belt have?

It features the classic A profile (also designated as 13/A) according to DIN 2215 and ISO 4184.

What does the L=L marking mean?

L=L designates a matched-set tolerance, meaning belts can be used together in multi-groove drives without special sorting.

What material is used for the tension cord?

The tension cord of this Conti V-belt is made of durable polyester (PE).

What is the operating temperature range?

This belt operates reliably in temperatures from -55 °C to +70 °C and offers dust and conditional oil resistance.

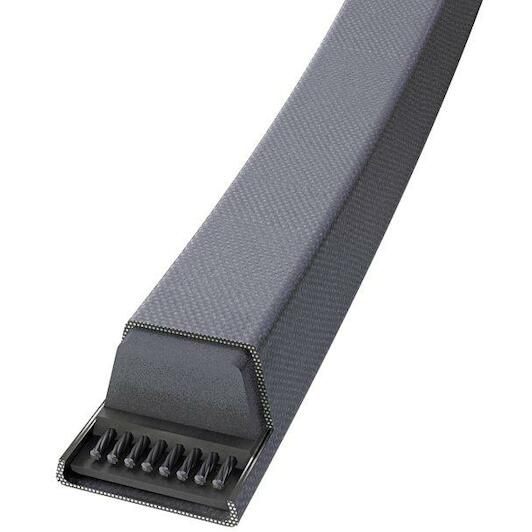

CONTI 13.0X1625 CONTI V belt 13.0X 1625 Li / 1655 Ld A 64

Name: CONTI 13.0X1625 CONTI V belt 13.0X 1625 Li / 1655 Ld A 64
Brand: CONTI
SKU: 05030146
Price: 39.88 EUR
Availability: PreOrder

Supplier number: CONTI 13.0X1625 | EAN 4010858351632

39.88 tax incl.

€32.96 excl. VAT (incl. all environmental contributions)

On order: delivered from 28/10/2026

Delivery by DHL

✆ Talk to a specialist

Dependable power transmission with Conti

Practical benefits

Stable and smooth drive: Strong polyester tensile cords absorb heavy drive loads effectively to prevent slipping during demanding mechanical operations.
Matched set ready: Precise manufacturing tolerances allow you to install multiple belts in parallel drives without manual matching or sorting.
Resilient against tough environments: The wrapped protective jacket resists dust, oil, and temperature variations to provide long-lasting, trouble-free performance.

In a nutshell

The right choise for

With the Conti Conti-V V-belt 13/A, you achieve reliable, slip-free power transmission across industrial machinery, electric motors, and agricultural equipment. Strong polyester tensile cords absorb heavy drive loads smoothly to maintain consistent performance under tough conditions. Thanks to the precise L=L matched-set tolerance, you can install multiple belts directly in multi-groove drives without manual sorting. In addition, the durable wrapped construction provides dependable protection against dust, moderate oil exposure, and temperature extremes from -55 °C to +70 °C, keeping your mechanical systems running smoothly.

Product information FAQ

€39.88

tax incl.

Key features according to our expert

Length: 64
Width: 13 mm
Height: 8 mm
Profile (V-belt): A
Reference length Ld: 1655 mm
Inner length (Li): 1625 mm; 64 inch
Outer length (La): 1675 mm
Material (cord): PE
Product line: CONTI V
RMA: A64
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 64
Width: 13 mm
Height: 8 mm
Profile (v-belt): A
Reference length ld: 1655 mm
Inner length (li): 1625 mm; 64 inch
Outer length (la): 1675 mm
Material (cord): PE
Product line: CONTI V
Rma: A64
Colour (manufacturer): Black

Brand CONTI
05030146
EAN 4010858351632
Supplier number CONTI 13.0X1625

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: This V-belt has a top width of 13 mm, a height of 8 mm, an inside length Li of 1625 mm (64"), and a datum length Ld of 1655 mm.
Which profile does this V-belt have?: It features the classic A profile (also designated as 13/A) according to DIN 2215 and ISO 4184.
What does the L=L marking mean?: L=L designates a matched-set tolerance, meaning belts can be used together in multi-groove drives without special sorting.
What material is used for the tension cord?: The tension cord of this Conti V-belt is made of durable polyester (PE).
What is the operating temperature range?: This belt operates reliably in temperatures from -55 °C to +70 °C and offers dust and conditional oil resistance.
