What are the exact dimensions of this V-belt?

It features a Z profile (10 mm top width, 6 mm height), an inside length of 1320 mm (52 inches), a pitch length of 1343 mm, and an outside length of 1358 mm.

What does the L=L designation mean?

L=L indicates matched-set manufacturing tolerance, allowing you to use multiple belts together in multi-groove drives without tension differences.

What material is used for the tension cord?

The tension cord is made of polyester (PE), providing high tensile strength and dimensional stability under load.

Which applications is profile Z suitable for?

Profile Z (10/Z) is designed for classic industrial machinery, mechanical engineering, and agricultural or garden equipment with 10 mm pulleys.

How do you verify if size Z 52 fits your machine?

Check that your pulleys require a 10 mm belt width and that the inside length is 1320 mm or marked with code Z 52.

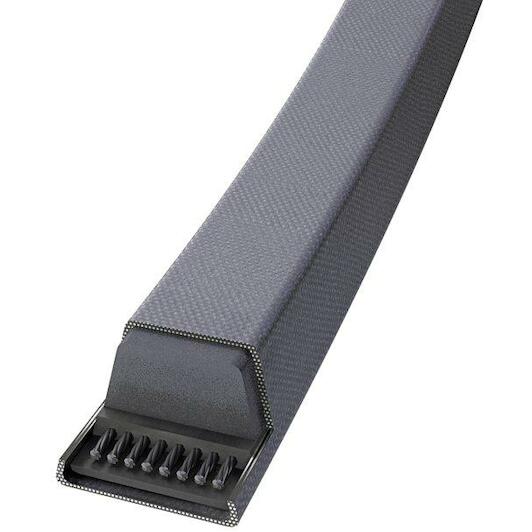

CONTI 10.0X1320 CONTI V-belt 10.0X 1320 Li / 1343 Ld Z 52

Name: CONTI 10.0X1320 CONTI V-belt 10.0X 1320 Li / 1343 Ld Z 52
Brand: CONTI
SKU: 05030058
Price: 25.17 EUR
Availability: InStock

Supplier number: CONTI 10.0X1320 | EAN 4010858578077

25.17 tax incl.

€20.80 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Delivery by DHL

✆ Talk to a specialist

Reliable power transmission for demanding drives

Practical benefits

Perfectly matched multi-belt drive sets: The L=L precision manufacturing allows you to run multiple V-belts together without uneven tension or slip.
Resilient performance in harsh environments: The tough compound resists dust, moderate oil exposure, and extreme operating temperatures ranging from -55 °C to +70 °C.
Strong polyester tension cords inside: The integrated tensile member minimizes belt elongation, keeping your machinery running smoothly with minimal re-tensioning needed.

In a nutshell

The right choise for

Keep your industrial machinery, workshop equipment, and agricultural drives running smoothly with the Conti Conti-V z 52 V-belt. Designed to replace worn, cracked, or slipping belts, this classic Z-section belt with a 10 mm width and 6 mm height delivers consistent, efficient mechanical power transmission between pulleys. Its high-strength polyester tension cords minimize stretching and maintain proper operating tension over long service intervals. Thanks to the L=L matched-set tolerance, you can run multiple belts together in multi-groove systems without uneven tension or load imbalances. Built to withstand dust, moderate oil exposure, and temperatures from -55 °C to +70 °C, it ensures dependable performance in demanding operating environments.

Product information FAQ

€25.17

In stock - tax incl.

Key features according to our expert

Length: 52
Width: 10 mm
Height: 6 mm
Profile (V-belt): Z
Reference length Ld: 1343 mm
Inner length (Li): 1320 mm; 52 inch
Outer length (La): 1358 mm
Material (cord): PE
Product line: CONTI V
RMA: Z52
Colour (manufacturer): Black

Product description:

Wrapped V-belts for demanding drives in all sectors of machine engineering to DIN 2215 or DIN 7753

Properties:

Temperature range from -55 °C to +70 °C
Matched-set L=L (from 1000 mm)
Electrically conductive to ISO 1813
Conditionally resistant to oil
Suitable for tropical climates
Dust-proof

All Features

Length: 52
Width: 10 mm
Height: 6 mm
Profile (v-belt): Z
Reference length ld: 1343 mm
Inner length (li): 1320 mm; 52 inch
Outer length (la): 1358 mm
Material (cord): PE
Product line: CONTI V
Rma: Z52
Colour (manufacturer): Black

Brand CONTI
05030058
EAN 4010858578077
Supplier number CONTI 10.0X1320

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this V-belt?: It features a Z profile (10 mm top width, 6 mm height), an inside length of 1320 mm (52 inches), a pitch length of 1343 mm, and an outside length of 1358 mm.
What does the L=L designation mean?: L=L indicates matched-set manufacturing tolerance, allowing you to use multiple belts together in multi-groove drives without tension differences.
What material is used for the tension cord?: The tension cord is made of polyester (PE), providing high tensile strength and dimensional stability under load.
Which applications is profile Z suitable for?: Profile Z (10/Z) is designed for classic industrial machinery, mechanical engineering, and agricultural or garden equipment with 10 mm pulleys.
How do you verify if size Z 52 fits your machine?: Check that your pulleys require a 10 mm belt width and that the inside length is 1320 mm or marked with code Z 52.
