What does KD mean for these Brady padlocks?

KD stands for keyed different. Each padlock in the set has its own unique key and cannot be opened by the keys of the other padlocks.

Can the key be removed while the padlock is open?

No, these padlocks feature a key-retaining cylinder. The key can only be removed once the shackle is fully closed.

What are the dimensions of the shackle on this model?

The aluminium shackle has a height of 75 mm, a width of 26 mm, and a diameter of 4.7 mm.

Is this safety padlock electrically conductive?

No, the body is made of non-conductive reinforced polyamide, making it ideal for electrical lockout-tagout procedures.

How many keys are included with each padlock?

Each individual padlock is supplied with 1 key.

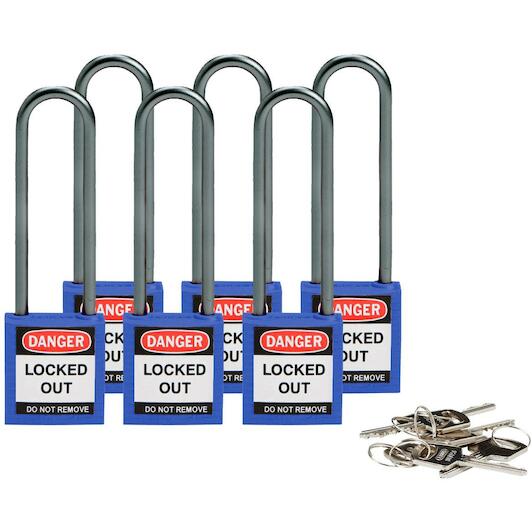

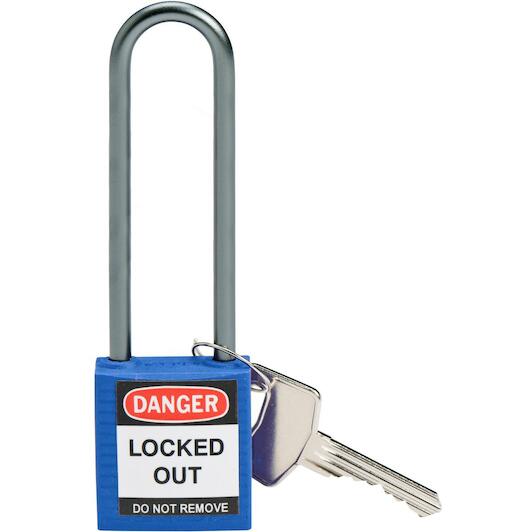

BRADY 814144 compact security padlock blue with 75 mm shackle with non-identical locks (6 pcs)

Name: BRADY 814144 compact security padlock blue with 75 mm shackle with non-identical locks (6 pcs)
Brand: BRADY
SKU: 02159279
Price: 154.47 EUR
Availability: PreOrder

Supplier number: BRADY 814144 | EAN 4003318566028

154.47 tax incl.

€127.66 excl. VAT (incl. all environmental contributions)

On order: delivered from 24/11/2026

pack

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Secure energy isolation with Brady

Practical benefits

Insulated against electric shocks: The non-conductive reinforced nylon body and insulated cylinder protect you from electrical hazards during energy isolation.
Key retaining safety feature: The integrated key-retaining mechanism prevents you from removing the key until the 75 mm aluminium shackle is securely locked.
Extended shackle for lockout: With a 75 mm tall aluminium shackle, you can easily secure complex lockout points and hard-to-reach energy isolation devices.

In a nutshell

The right choise for

Secure electrical switchgear, valves, and machinery during lockout-tagout procedures with this pack of 6 compact Brady 814144 safety padlocks. Featuring an extended 75 mm aluminium shackle, you can easily reach deep or narrow lockout points. The non-conductive reinforced polyamide body protects you from electrical hazards while isolating energy sources. Equipped with a 5-pin cylinder and keyed different (KD) mechanism, each padlock operates with its own unique supplied key to eliminate the risk of accidental cross-opening. An integrated key-retaining feature ensures that you can only remove the key once the shackle is fully and securely locked.

Product information FAQ

€154.47

tax incl.

Key features according to our expert

Width (body): 32 mm
Number of pins (padlock): 5
Depth (body): 16 mm
Number per pack: 6
Engraving position: Front and back
Engraved: Yes
Identification labels included: Yes
Keying configuration: KD - Keyed different
Electrically conductive: No
Packaging: Box
Number of keys supplied: 1
Height (shackle): 75 mm
Material (housing): Reinforced polyamide
Colour (manufacturer): Blue
Width (shackle): 26 mm
Length (shackle): 17 mm
Thickness (bow): 4,7 mm
Material (shackle/cable): Aluminium

Product description:

Safety Padlocks - Compact

Features:

Brady Compact Safety Padlocks are a lightweight range of padlocks suitable for energy isolation programs
They compliment the Brady Safety Padlock and have the same features
Unique cylinder is insulated to protect workers from shocks when key is inserted and is 5-pin precision-machined for more unique key cuts and better tamper resistance
Reserved, paracentric keyway provides optimal security and the special design prohibits the key from being released until the padlock shackle is closed
Locks are compact and lightweight and resist impact, temperature, chemicals and corrosion
Their non-conductive, non-sparking body features a ribbed design for easier gripping and handling
1 key supplied with each lock
Key retaining (Key won't release until the padlock shackle is securely closed)
Custom keying and charting is available
Key retaining (Key won't release until padlock shackle is closed). Please contact customer services for Custom Key Charting

Documents

⤓ Technical data sheet PDF

All Features

Width (body): 32 mm
Number of pins (padlock): 5
Depth (body): 16 mm
Number per pack: 6
Engraving position: Front and back
Engraved: Yes
Identification labels included: Yes
Keying configuration: KD - Keyed different
Electrically conductive: No
Packaging: Box
Number of keys supplied: 1
Height (shackle): 75 mm
Material (housing): Reinforced polyamide
Colour (manufacturer): Blue
Width (shackle): 26 mm
Length (shackle): 17 mm
Thickness (bow): 4,7 mm
Material (shackle/cable): Aluminium

Brand BRADY
02159279
EAN 4003318566028
Supplier number BRADY 814144

Frequently asked questions about this product

Answered by specialists

What does KD mean for these Brady padlocks?: KD stands for keyed different. Each padlock in the set has its own unique key and cannot be opened by the keys of the other padlocks.
Can the key be removed while the padlock is open?: No, these padlocks feature a key-retaining cylinder. The key can only be removed once the shackle is fully closed.
What are the dimensions of the shackle on this model?: The aluminium shackle has a height of 75 mm, a width of 26 mm, and a diameter of 4.7 mm.
Is this safety padlock electrically conductive?: No, the body is made of non-conductive reinforced polyamide, making it ideal for electrical lockout-tagout procedures.
How many keys are included with each padlock?: Each individual padlock is supplied with 1 key.
