BRADY 090891 locking kit for 480-600 V circuit breakers

Name: BRADY 090891 locking kit for 480-600 V circuit breakers
Brand: BRADY
SKU: 91218134
Price: 56.75 EUR
Availability: InStock

Supplier number: BRADY 090891 | EAN 0662820050230

56.75 tax incl.

€46.90 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Safe electrical lockout with Brady

Practical benefits

Fast drill-free installation: You mount the guide rails directly onto the electrical panel using heavy-duty self-adhesive backing.
Clear visual status indication: The red and green blocker bars let you instantly verify whether a circuit breaker is locked.
Fits oversized switch handles: You securely lock out irregularly shaped or large switches rated for 480 to 600 V.

In a nutshell

The right choise for

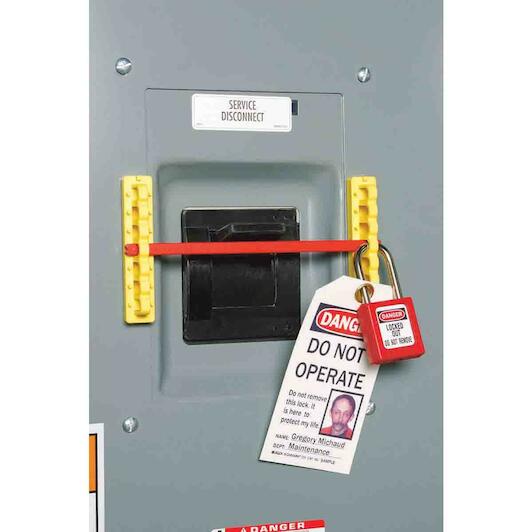

With the Brady 090891 breaker blocker kit, you reliably secure oversized and irregularly shaped 480 to 600 V circuit breakers during maintenance. You can install the two yellow guide rails quickly and cleanly without any drilling, using the self-adhesive backing and the included alcohol wipes to prep the panel surface. The color-coded red and green blocker bars provide immediate visual confirmation of the switch status. When paired with a padlock featuring a maximum shackle diameter of 6.5 mm and a minimum shackle height of 20 mm, you effectively prevent accidental re-energization.

Product information FAQ

€56.75

In stock - tax incl.

Key features according to our expert

Max. diameter (shackle): 6,5 mm
Risk: Electrical hazards
Width: 101,6 mm
Height: 20,32 mm
Packaging: Pack
Min. height (shackle): 20 mm

Scope of delivery

Kit includes: 2 Yellow mounting rails, 1 red blocking bar, 1 green blocking bar and 3 alcohol wipes

Product description:

480-600V Breaker Lockout Kit*

Features:

Safely lock out your oversized and irregularly shaped switches with our 480-600V Breaker Blocker Kit
The mounting rails are self-adhesive and are permanently installed onto an electrical panel - simply clean panel surface and adhere - no drilling required! Colour-coded blocking bars can be used to indicate if breaker is locked off (red) or on (green)
* Each kit includes: 2 yellow mounting rails, 1 red blocking bar, 1 green blocking bar and 3 alcohol wipes

Documents

⤓ Technical data sheet PDF

All Features

Max. diameter (shackle): 6,5 mm
Risk: Electrical hazards
Width: 101,6 mm
Height: 20,32 mm
Packaging: Pack
Min. height (shackle): 20 mm

Brand BRADY
91218134
EAN 0662820050230
Supplier number BRADY 090891

Frequently asked questions about this product

Answered by specialists

What is the Brady 090891 breaker blocker kit used for?: It is designed to safely lock out oversized and irregularly shaped circuit breakers rated for 480 to 600 V.
What is included in the package?: The kit contains 2 yellow mounting rails, 1 red blocking bar, 1 green blocking bar, and 3 alcohol wipes.
Do you need to drill holes to mount the rails?: No, the mounting rails are self-adhesive. Simply clean the surface with the included wipes and stick them on.
What do the red and green blocking bars indicate?: The red bar locks the switch in the off position, while the green bar secures the switch in the on position.
Which padlocks are compatible with this kit?: It accepts padlocks with a maximum shackle diameter of 6.5 mm and a minimum shackle height of 20 mm.
