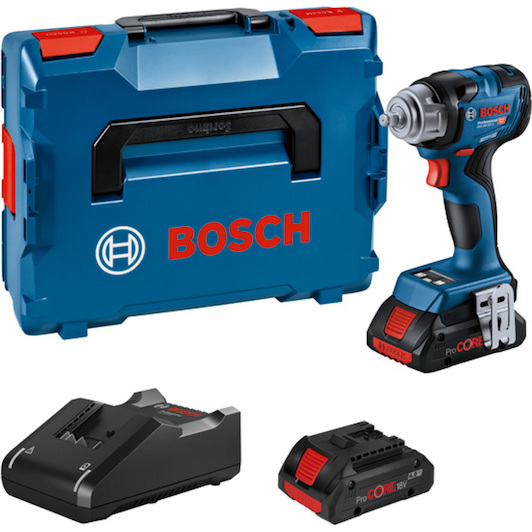

BOSCH GDS 18V-320 C cordless impact wrench in L-BOXX 136 (2x 4.0Ah battery + quick charger) - 06019L5101

Recommended Retail Price €634.73
473.56 tax incl.
€391.37 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/07/2026
each

Scope of delivery

  • L-BOXX 136 - 1 600 A01 2G0
  • Quick charger GAL 18V-40 Professional - 1 600 A01 9RJ
  • 1 x Bluetooth Low Energy module GCY 42 Professional - 1 600 A01 3WF
  • 1/1 L-BOXX inlay - 1 600 A02 DG5
  • 2 x battery ProCORE18V 4.0Ah - 1 600 A01 6GB

Product description

  • Compact and lightweight 3/8" impact nutrunner with adjustable modes for multi-purpose use
  • Two standard screw modes for multi-purpose use. Each mode can be set and personalised via the Bosch Toolbox app
  • Powerful performance through 320 Nm tightening torque and 540 Nm breakaway torque
  • Versatile through three speed/torque modes for greater flexibility and control

Key features

  • Tightening torque 320 Nm
  • Breakaway torque 540 Nm
  • Bit insert square, bit holder, 3/8", outside square
  • Increased efficiency through adjustable modes

Applications

  • The twist nutrunner is ideal for metal workshops/locksmiths, industrial assembly and vehicle maintenance with metal bolts/nuts from M6 to M16
  • It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System) and compatible with AMPShare, the battery platform of several brands.

Additional information

  • The GDS 18V-320 HC Professional comes with a machine status indicator, LED light and belt clip for added convenience.
Key features according to our expert
  • Battery voltage: 18 V
  • Head length: 144 mm
  • Number of batteries included: 2
  • With work light: Yes
  • Battery platform: AMPShare
  • Weight: 1,2 kg
  • Type of system case: L-BOXX
  • Supplied in: System case
  • UN number: UN3481
  • Number of speed settings: 3
  • Capacity (battery): 4 Ah
  • With extended drive shaft: No
  • Max. breakeway torque: 540 Nm
  • Max. tightening torque: 320 Nm
  • Tool holder type: Outer square
  • Tool holder size: 3/8"
  • Retention type (socket): Friction ring
  • Product Range: Bosch 18V
Specifications / All features
Battery voltage
18 V

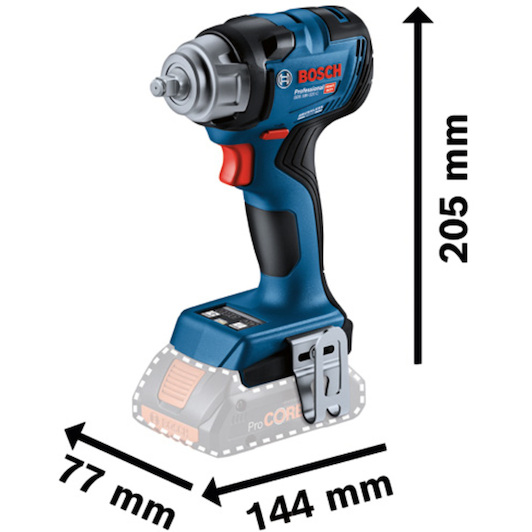

Head length
144 mm
Number of batteries included
2
With work light
Yes
Battery platform
AMPShare
Weight
1,2 kg
Type of system case
L-BOXX
Supplied in
System case
Un number
UN3481
Number of speed settings
3
Capacity (battery)
4 Ah
With extended drive shaft
No
Max. breakeway torque
540 Nm
Max. tightening torque
320 Nm
Tool holder type
Outer square
Tool holder size
3/8"
Retention type (socket)
Friction ring
Number of strokes (position 3)
0 - 3800 min-1
Number of strokes (position 1)
0 - 2400 min-1
Tool holder
1/2" square friction ring and through-hole
Uncertainty k
3 dB
Vibration emission value ah (tightening screws and nuts of max allowed size)
13 m/s²
No-load speed (position 3)
0 - 2800 min-1
Uncertainty k (tightening of screws and nuts of maximum permitted size)
1.5 m/s²
Torque setting range, min/max, position 1
0/180 Nm
No-load speed (position 1)
0 - 1200 min-1
No-load speed (position 2)
0 - 1900 min-1
Sound power level
109 dB(A)
Loosening torque, max.
540 Nm
Number of strokes (position 2)
0 - 3100 min-1
Torque, max.
320 Nm
Torque setting range, min/max, position 3
0/320 Nm
Torque setting range, min/max, position 2
0/220 Nm
No load speed
0 - 1200 o.p.m.
Sound pressure level
98 dB(A)
Number of strokes
0 - 3800 min-1
Product range
Bosch 18V
