Product description

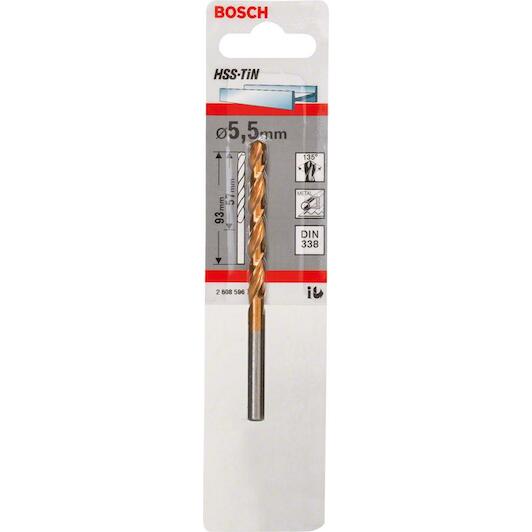

- Metal drill bit HSS-TiN, DIN 338, 5.5 x 57 x 93 mm
- Maximum service life
- HSS spiral drill bit TiN-coated offers longer service life
- Titanium nitride coating ensures very low friction and minimal wear
Advantages
- Maximum service life - The HSS spiral drill bit TiN-coated offers maximum service life when drilling in metal.
- When using the right cooling system, the drill bit has very low friction and minimal wear thanks to the TiN-coating.
- Thanks to the high surface quality of this ground spiral drill made of HSS (High-Speed Steel), the drill bit can be used for long periods of time.
- Suitable for alloyed and unalloyed steel, malleable cast iron, sintered iron, new silver, copper, bronze and hard plastics, such as Plexiglas.
- This drill has a cylindrical shank (drill and shank have the same diameter) and is intended for use in drill stands and drill/screw machines.
- The HSS spiral drill bit TiN-coated is produced in accordance with DIN 338.
- The drill bit is type N (spiral angle) with a tip of 135 degrees and a diameter tolerance of h8.
- The pointed split point ensures an active cutting action and perfect centring without expiring.
- Do not use in aluminium and only with a coolant.
- Cylindrical shank compatible with three-claw drill chucks.
Key features according to our expert
-
Diameter: 5,5 mm
-
Drill bit type: Metal drill bit
-
Overall length: 93 mm
-
Shank size: 5,5 mm
-
Shank type: Cylindrical
-
Material (drill bit): HSS
-
Surface treatment (drill bit): TiN
-
Standard: DIN 338
-
Cutting length: 57 mm
Specifications / All features
-
Brand:
BOSCH
-
01049064
-
EAN:
3165140060868
-
Supplier number:
BOSCH 2608596706
- Diameter
- 5,5 mm
- Drill bit type
- Metal drill bit
- Overall length
- 93 mm
- Shank size
- 5,5 mm
- Shank type
- Cylindrical
- Material (drill bit)
- HSS
- Surface treatment (drill bit)
- TiN
- Standard
- DIN 338
- Cutting length
- 57 mm
- Overall length (l2) mm
- 93
- Min. order quantity
- 1 St.
- Diameter (d) mm
- 5,5
- Useful length (l1) mm
- 57
