bahco_bpc816

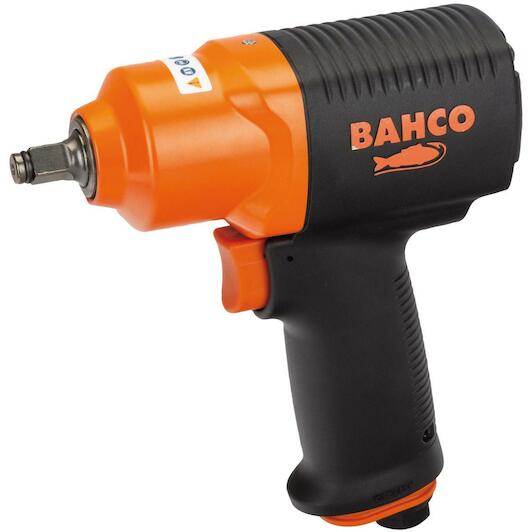

BAHCO BPC816 pneumatic impact spanner 3/8" composite

BAHCO
Supplier number: BAHCO BPC816 | EAN 7314150296415
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Max. tightening torque: 388 Nm
  • Tool holder size: 3/8"
  • Connection size (air): 1/4"
  • Speed: 12000 rpm
  • Max. breakeway torque: 583 Nm

Product description:

  • Pneumatic impact spanner 3/8", composite

Features:

  • Pneumatic impact spanner, 3/8"
  • Lightweight, durable and insulated composite housing
  • Powerful double hammer mechanism
  • One-hand operation
  • Three-stage power control
  • Swivel connection of 360º to prevent hose winding up
  • Progressive trigger
  • Integrated silencer

All Features

Max. tightening torque
388 Nm
Tool holder size
3/8"
Connection size (air)
1/4"
Speed
12000 rpm
Max. breakeway torque
583 Nm
Sound pressure
87 dBA
Pressure in bar
6,3 bar
Air inlet inch
1/4" in
Vibration level
7,4 m/s²
Torque range nm
34-338 N·m
Total length mm
142 mm
Maximum torque nm
583 N·m
Blows per minute
1500
Weight kg
1.24 kg
Square drive mm
3/8 in
Air consumption
113 l/min
Minimum hose diameter mm
10 mm
  • Brand BAHCO
  • EAN 7314150296415
  • Supplier number BAHCO BPC816
