BAHCO 74WR-100 torque spanner with double scale and fixed ratchet head 20-100 Nm

Name: BAHCO 74WR-100 torque spanner with double scale and fixed ratchet head 20-100 Nm
Brand: BAHCO
SKU: 08080070
Price: 186.2 EUR
Availability: PreOrder

Supplier number: BAHCO 74WR-100 | EAN 7314150415540

Recommended Retail Price €381.59

186.20 tax incl.

€153.88 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Delivery by DHL

✆ Talk to a specialist

Alternative to this product

EXPERT E100107 torque spanner 1/2" - 20 to...

130.20 €195.50

€107.60 excl. VAT

On stock, immediately available.

GEDORE 2958031 Torcoflex UK torque...

149.60

€123.64 excl. VAT

Delivery time average 14 days.

Accurate and controlled fastener tightening

Practical benefits

Distinct tactile and audible click: The internal mechanism signals clearly when you reach the preset torque level, preventing accidental overtightening.
Dual scale torque setting: You quickly select the required torque from 20 to 100 Nm using the clear, easy-to-read window scale.
Durable Bahco ratchet head: Featuring a fixed 1/2" square drive, this tool lets you complete routine mechanical assemblies with consistent precision.

In a nutshell

The right choise for

With the Bahco 74WR-100 click torque wrench, you tighten threaded fasteners with consistent accuracy. Featuring an adjustable range of 20 to 100 Nm and a clear dual scale, you can quickly set the exact torque required for automotive, machinery, or general mechanical assemblies. Once the target torque is reached, the internal mechanism produces a distinct tactile and audible click, preventing overtightening and stripped threads. The fixed 1/2" push-through ratchet head allows controlled tightening in both clockwise and anticlockwise directions, giving you complete confidence and precision on critical fastening tasks.

Product information FAQ

€186.20

tax incl.

Key features according to our expert

Max. tightening torque: 100 Nm
Drive profile size: 1/2"
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Min. tightening torque: 20 Nm

Product description:

Double-shell torque spanner with fixed ratchet head

Features:

Durable mechanism with more than 100,000 cycles within accuracy standard
Quick scale adjustment making adjustment less effort
TIME TRIP Visual indication that the spanner needs to be recalibrated with graduations of 3, 6, 9 and 12 months

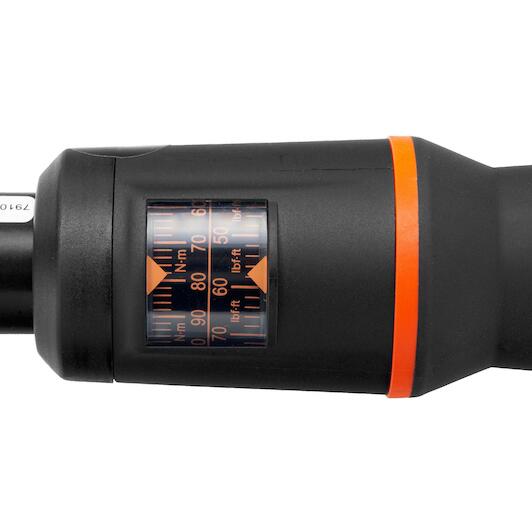

Large double scale inNm/ft.lb
Range of torque values ranges from 10 to 400Nm/7.5 to 300 ft.lb
Accurate to ±3% of measured value, better than the requirements of ISO6789-1:2017
Click system activates a tangible and audible signal
Plug-in ratchet heads from 3/8" to 3/4" square connections can be used clockwise or anti-clockwise

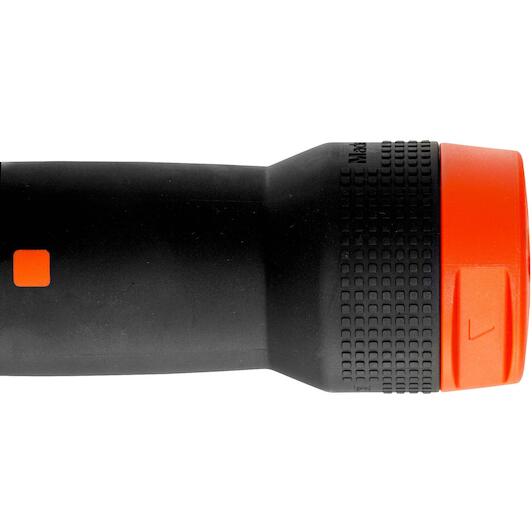

Centre of handle or calibration force point marked on handle

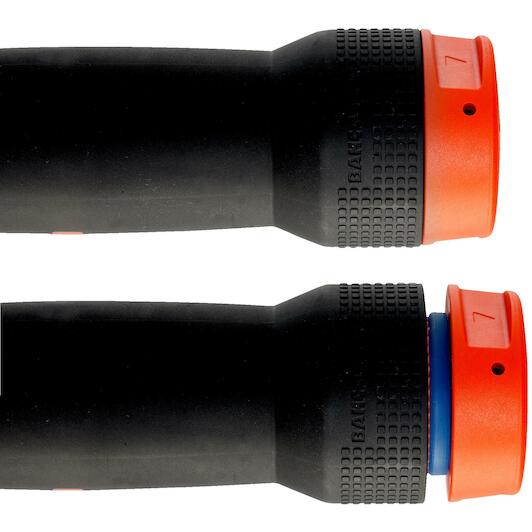

Lock/unlock button with blue ring on the inside alerting the user when the key is unlocked
All in semi-transparent square tube with eurohole hanger
All keys come with manufacturer's declaration of conformity, traceable to international standards
ISO 6789
Made in the United Kingdom

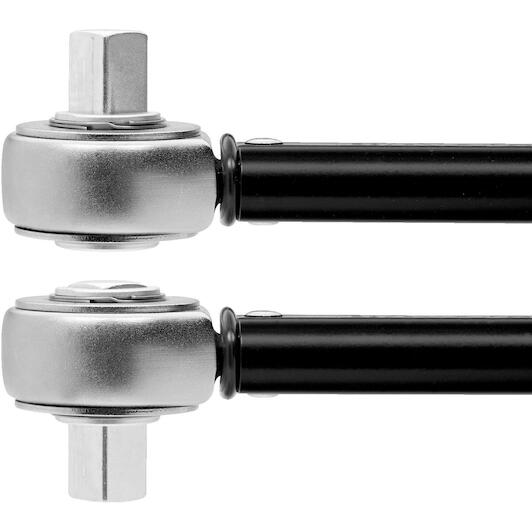

Can be used clockwise or anti-clockwise by flipping over the square end of the ratchet

All Features

Max. tightening torque: 100 Nm
Drive profile size: 1/2"
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Min. tightening torque: 20 Nm
Weight kg: 0.9 kg
Weight g: 900 g

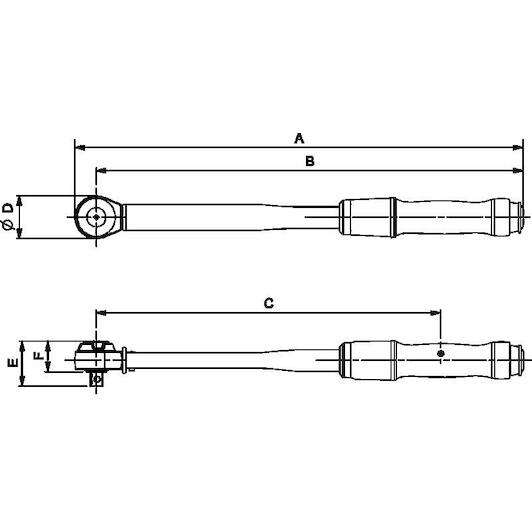

Head width mm (d): 45 mm
Torque range nm: 20-100 N·m
Square drive: 1/2"
Total length mm (a): 387 mm
Square inch: 1/2 in
Measuring range lb.ft: 15-75 lbf·ft
Norm: ISO6789-2:2017
Scale nm: 1 N·m

Brand BAHCO
08080070
EAN 7314150415540
Supplier number BAHCO 74WR-100

Frequently asked questions about this product

Answered by specialists

What is the torque range of this torque wrench?: The Bahco 74WR-100 has an adjustable range of 20 to 100 Nm (15 to 75 lbf·ft).
What size drive does this tool have?: It features a fixed 1/2" square drive with a push-through ratchet head.
How do you know when the set torque is reached?: The click mechanism gives both a tactile sensation and an audible signal when the torque is reached.
Can this torque wrench be used for clockwise and anticlockwise tightening?: Yes, the push-through square drive allows controlled tightening in both directions.
Is the Bahco 74WR-100 insulated for electrical work?: No, this torque wrench is not VDE certified and not insulated for live electrical work.
