What is the torque range of this wrench?

The tightening torque range is 0.7 to 3.5 Nm.

What drive size does the Bahco 7454-3.5 have?

It features a fixed 1/4" square drive head.

How is the applied torque displayed?

The applied torque is shown directly on the analogue dial scale.

Can this dial torque wrench be used in both directions?

Yes, it measures torque accurately in both clockwise and anticlockwise directions.

Is this tool VDE or ESD certified?

No, this torque wrench is neither VDE-insulated nor ESD-safe.

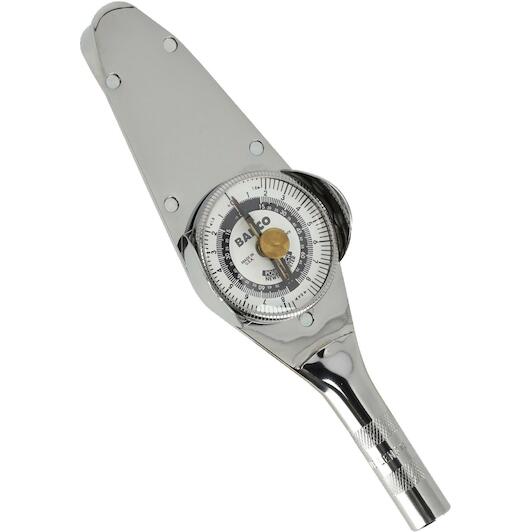

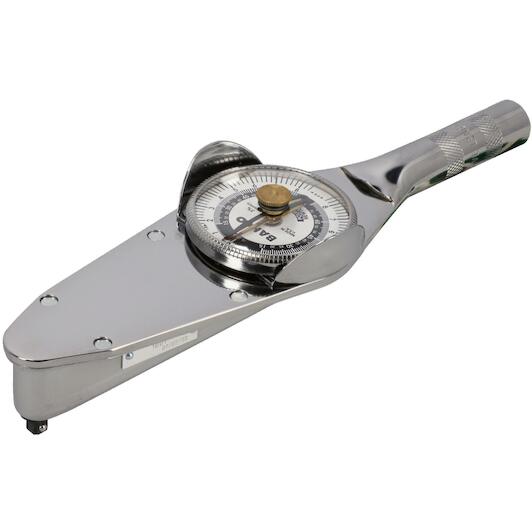

BAHCO 7454-3.5 clock mechanical torque spanner with dial, square connection, plastic handle, 1/4", 0.7 - 3.5nm

Name: BAHCO 7454-3.5 clock mechanical torque spanner with dial, square connection, plastic handle, 1/4", 0.7 - 3.5nm
Brand: BAHCO
SKU: 08086594
Price: 396.95 EUR
Availability: PreOrder

Supplier number: BAHCO 7454-3.5 | EAN 7314150509478

Recommended Retail Price €748.20

396.95 tax incl.

€328.06 excl. VAT (incl. all environmental contributions)

On order: delivered from 14/10/2026

Delivery by DHL

✆ Talk to a specialist

Precise torque control on sensitive fastenings

Practical benefits

Reliable Bahco dial accuracy: You obtain immediate and precise readings during fastening thanks to the clear analogue dial display.
Hand position independent results: Your grip location does not affect measurement accuracy, ensuring consistent readings on every task.
Versatile bidirectional tightening: The 1/4" square drive allows you to inspect and tighten both clockwise and anticlockwise fastenings.

In a nutshell

The right choise for

With the Bahco 7454-3.5 dial torque wrench, you maintain full control over delicate assemblies and precision quality checks. Covering a torque range of 0.7 to 3.5 Nm, it prevents overtightening and stripping of sensitive fasteners in low-torque applications. The clear analogue dial display allows you to monitor the applied torque directly in real time. Because the reading is not affected by your hand position on the handle, you achieve consistent and dependable accuracy on every task. Equipped with a fixed 1/4" square drive, it lets you inspect and tighten both clockwise and anticlockwise fastenings effortlessly.

Product information FAQ

€396.95

tax incl.

Key features according to our expert

Max. tightening torque: 3,5 Nm
Drive profile size: 1/4"
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Min. tightening torque: 0,7 Nm

Product description:

Mechanical clock torque spanner with dial, square connection, plastic handle, 1/4", 0.7 - 3.5Nm

Features:

Metal handle
Double scale
Accurate to ± 3% of reading from 20% to 100% of max torque, clockwise and anticlockwise
Free hand placement
Meets or exceeds the following specifications: GGG-W-686C, ANSI B107.14M
Made in the USA

All Features

Max. tightening torque: 3,5 Nm
Drive profile size: 1/4"
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Min. tightening torque: 0,7 Nm
Square inch: 1/4 in
Head width mm (d): 60 mm
Torque range nm: 0.7-3.5 N·m
Total length mm (a): 252 mm
Weight kg: 0.5 kg
Measuring range lb.in: 6-30 lbf·in
Scale nm: 0,1 N·m

Brand BAHCO
08086594
EAN 7314150509478
Supplier number BAHCO 7454-3.5

Frequently asked questions about this product

Answered by specialists

What is the torque range of this wrench?: The tightening torque range is 0.7 to 3.5 Nm.
What drive size does the Bahco 7454-3.5 have?: It features a fixed 1/4" square drive head.
How is the applied torque displayed?: The applied torque is shown directly on the analogue dial scale.
Can this dial torque wrench be used in both directions?: Yes, it measures torque accurately in both clockwise and anticlockwise directions.
Is this tool VDE or ESD certified?: No, this torque wrench is neither VDE-insulated nor ESD-safe.
