BAHCO

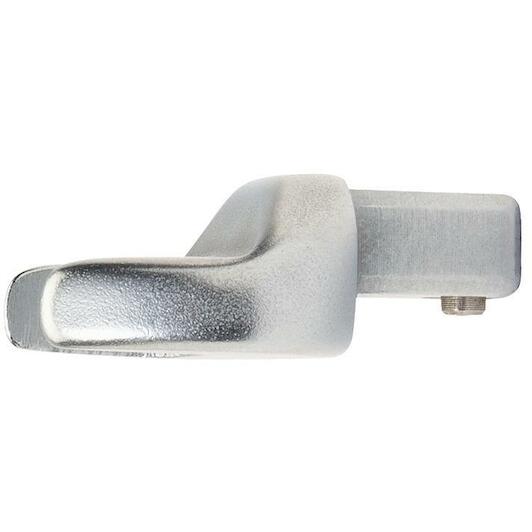

BAHCO 247-24 socket spanner with rectangular connection 24x32 mm, 24 mm

Recommended Retail Price €310.07
189.60 tax incl.
€156.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description:

  • Insert spanner, rectangular socket 24x32 mm, 24 mm

Features:

  • The insert is secured to the torque spanner with a spring-loaded retractable pin
  • Range varies from 9 x 12 to 27 x 36 holders, from 7 to 90 mm openings and from 9 to 3000Nm
  • For sizes with * in the torque length, the torque setting must be calculated
  • Suitable for 7465, 74W9, 74W14, 74P9, 74P14, IZO-D, TAW9, TAW14, TAW24, TAWM9, TAWM14 and TAWM24 spanners
Key features according to our expert
  • Width across flats: 24 mm
  • Connection size (wrench): 24 x 32 mm
  • Connection type (wrench): Outer rectangle
Specifications / All features
  • Brand: BAHCO
  • EAN: 7314150367078
  • Supplier number: BAHCO 247-24
Width across flats
24 mm
Connection size (wrench)
24 x 32 mm
Connection type (wrench)
Outer rectangle
Diameter inch
24 in
Weight g
700 g
Working length mm (l)
35 mm
Length of square mm
32 mm
Head width mm (d)
61 mm
Width mm (b)
61 mm
Total length mm (a)
85 mm
Length and width of square mm
24x32 mm
Height mm (h)
25 mm
Weight kg
0.7 kg
Max torque range nm
1200 N·m
Length mm
85 mm
Width of square mm
24 mm
Diameter mm
24 mm
