bahco_227_24
BAHCO

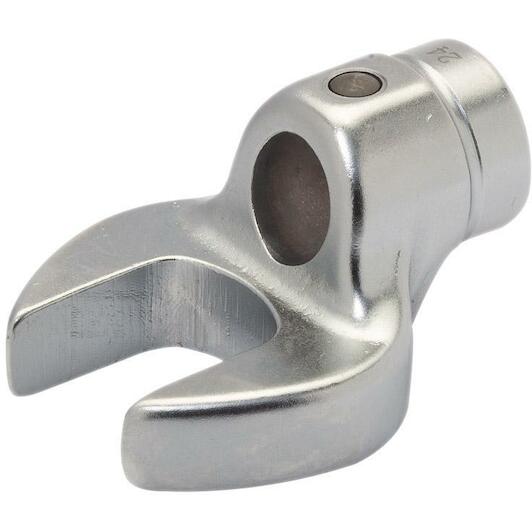

BAHCO 227-24 socket spanner with spigot connection 22 mm, 24 mm

Recommended Retail Price €409.33
250.40 tax incl.
€206.94 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Delivery by DHL

Product description:

  • Insert spanner, spigot connection 22 mm, 24 mm

Features:

  • The insert is secured to the torque spanner with a spring-loaded retractable pin
  • Full range ranges from 16 to 22 mm sockets, from 7 to 46 mm openings and from a maximum torque of 9Nm to 1200Nm
  • Suitable for 74S, 74 PS, 75S, 75 PS and 76S spanners
  • For sizes with * in the torque length, the torque setting must be calculated
Key features according to our expert
  • Width across flats: 24 mm
  • Connection size (wrench): 22 mm
  • Connection type (wrench): Cylindrical female
Specifications / All features
  • Brand: BAHCO
  • EAN: 7314150419852
  • Supplier number: BAHCO 227-24
Width across flats
24 mm
Connection size (wrench)
22 mm
Connection type (wrench)
Cylindrical female
Max torque range nm
1200 N·m
Weight kg
0.845 kg
Total length mm (a)
90 mm
Head width mm (d)
70 mm
Weight g
845 g
Diameter mm
24 mm
