bahco_227_22

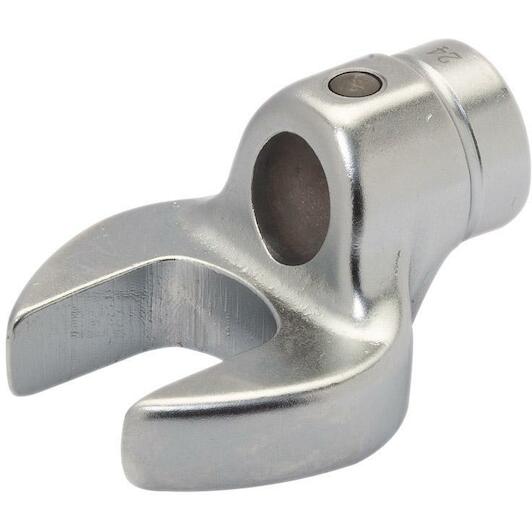

BAHCO 227-22 socket spanner with spigot connection 22 mm, 22 mm

BAHCO
Supplier number: BAHCO 227-22 | EAN 7314150419845
Recommended Retail Price €397.56
210.20 tax incl.
€173.72 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€210.20
tax incl.

Product information

Key features according to our expert

  • Width across flats: 22 mm
  • Connection size (wrench): 22 mm
  • Connection type (wrench): Cylindrical female

Product description:

  • Insert spanner, spigot connection 22 mm, 22 mm

Features:

  • The insert is secured to the torque spanner with a spring-loaded retractable pin
  • The full range ranges from 16 to 22 mm inserts, from 7 to 46 mm openings and from a maximum torque of 9Nm to 1200Nm
  • Suitable for 74S, 74 PS, 75S, 75 PS and 76S spanners
  • For sizes with * in the torque length, the torque setting must be calculated

All Features

Width across flats
22 mm
Connection size (wrench)
22 mm
Connection type (wrench)
Cylindrical female
Max torque range nm
1200 N·m
Weight kg
0.845 kg
Total length mm (a)
90 mm
Head width mm (d)
68 mm
Weight g
845 g
Diameter mm
22 mm
  • Brand BAHCO
  • EAN 7314150419845
  • Supplier number BAHCO 227-22
