Scope of delivery
- Bit-Box 20 BTZ PZ, PZ 2 x 25 mm, 20 pieces
- 20x 855/1 BTZ bits: PZ 2 x 25 mm
Product description
BiTorsion Bits for Pozidriv screws in a practical Bit-Box. Come with a torsion zone where kinetic energy is diverted to when peak loads prevail: this significantly prolongs the product service life; with Take it easy tool finder: colour coding according to profile and size stamp; extra hard design; 1/4" hex, suitable for holders as per DIN ISO 1173-D 6.3.
- Suitable for Pozidriv screws
- BiTorsion zone to absorb peak loads
- Considerable reduction in the risk of breakage, significant increase in service life
- Tough for hard materials
- 1/4" hexagon drive (Wera connecting series 1)
Application
- Suitable for Pozidriv screws
Drive
- 1/4" hexagon, suitable for DIN ISO 1173-D 6.3 bit holders
Design
- BiTorsion for long service life, extra-tough, for universal use. Take it easy tool finder: Output colour coding (black = Pozidriv) and large stamp to enable the desired bit to be easily located.
Features and benefits
- BTZ-Bits

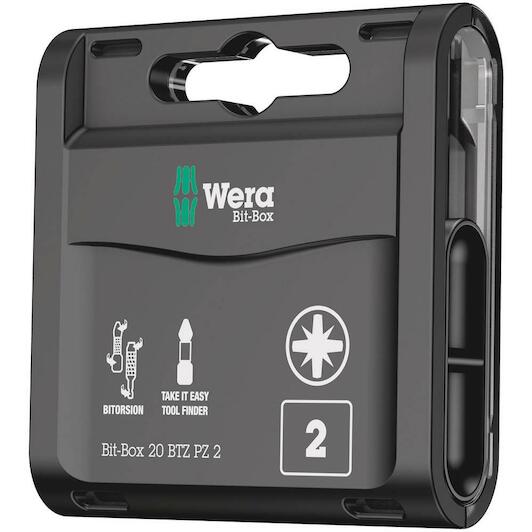

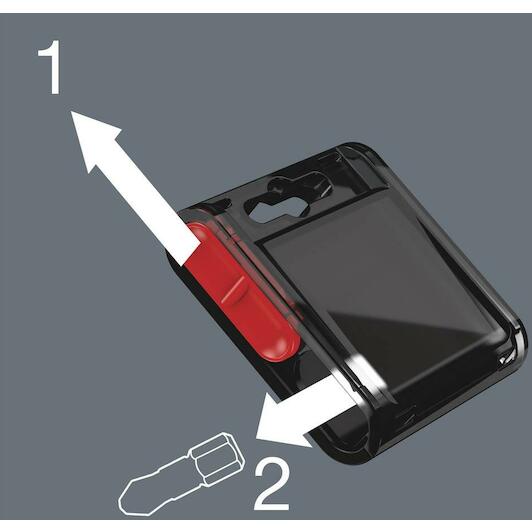

- The slide switch allows a simple and gradual removal and reinsertion of the bits. The transparent reverse side means that it is easy to know how many bits are still in the box.
- Peak forces that occur in power tool applications often result in premature wear of bits or damage to the screw head. This usually occurs during initial power-up and the when the screw comes to a standstill. Screwdriving could become more productive and safer if these peak loads could be minimised. The Wera BiTorsion system prevents premature wear. The service life of the tool is extended and the productivity of power tool applications significantly increased.

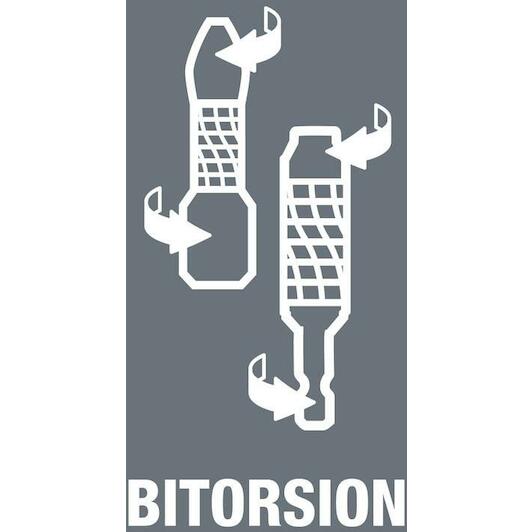

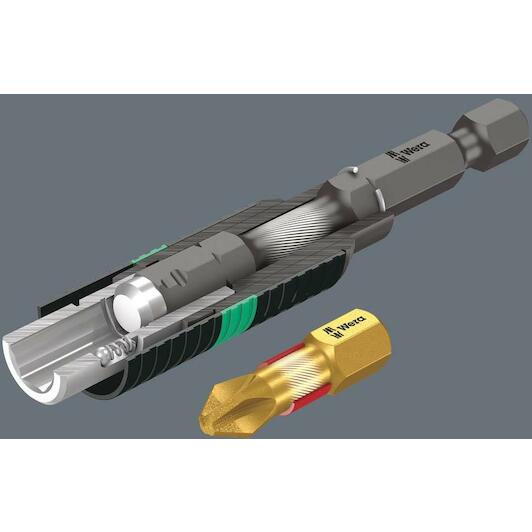

- The effectiveness of the BiTorsion system comes from a combination of two shock-absorbing spring elements. Both, bits as well as holders have a cushioning torsion zone that diverts the kinetic energy away from the drive tip during peak loads.

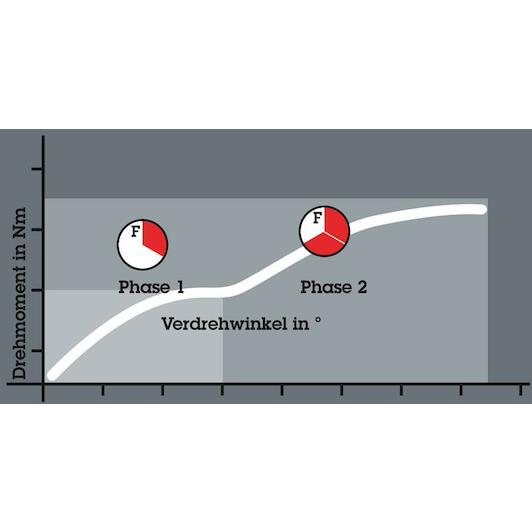

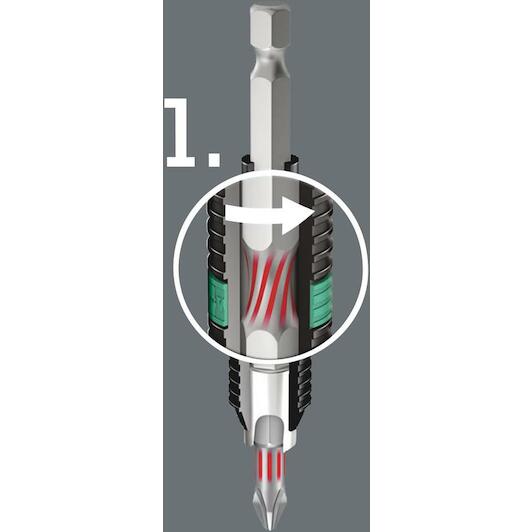

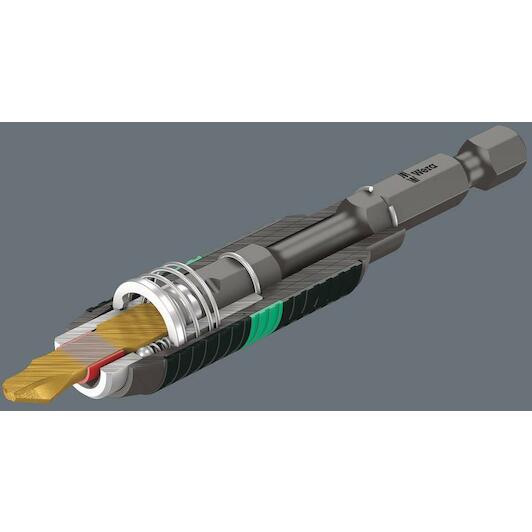

- The torsion spring integrated into the unique BiTorsion holder absorbs lower levels of peak loads (Phase 1). Any overloading of this spring is effectively prevented by means of a supporting mechanism.

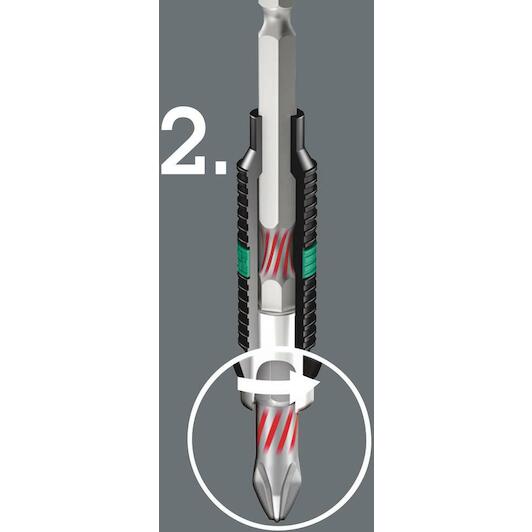

- Higher peak loads are minimised through the torsion effect of the bit shaft (Phase 2).
- Even the service life of conventional bits is enhanced with the use of the BiTorsion holder and the BiTorsion bit also functions in a normal holder.
- The optimally coordinated features of the torsion zones on the bit and holder permit a phased yield when under strain. The two-phase system prevents premature wear. Moreover, a long tool service life is also ensured by the hardness of the bits that matches the respective application.
