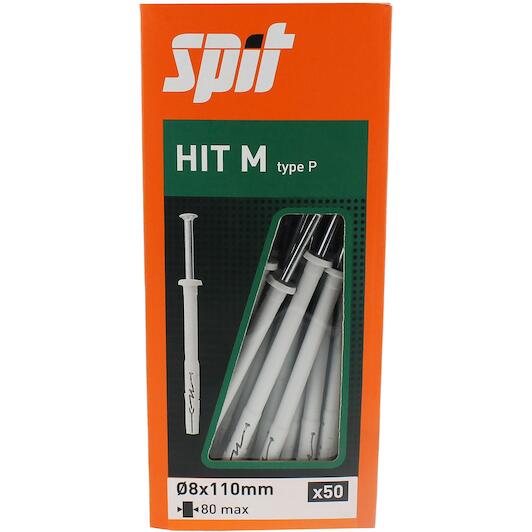

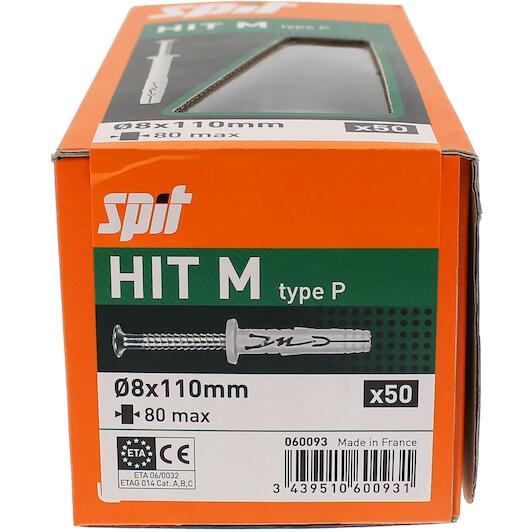

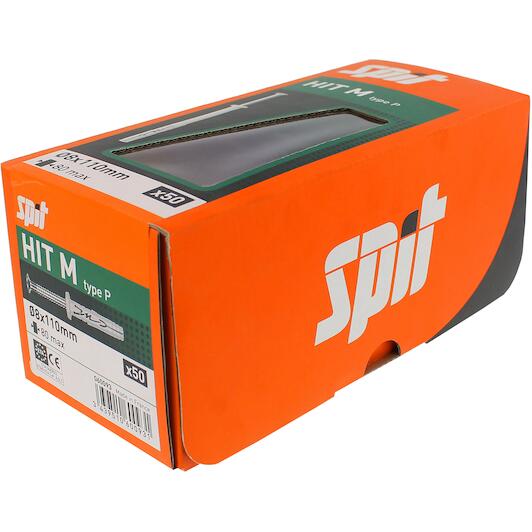

SPIT 060093 hammerhead plug with collar HIT M 8x110/80 P

0.47 tax incl.
€0.39 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

The minimum purchase order quantity for the product is 50.

  • Delivery by DHL

Reliable fastening with Spit hammer-set anchors

  • Fast and easy hammer installation: You drive the plug directly into the 8 mm drill hole with a hammer for rapid expansion and secure hold.
  • Clean flush collar finish: The flat collar distributes clamping pressure evenly across your fixture, ensuring a clean and flush fit against the base.
  • Effortless removal with screw: Thanks to the integrated PZ2 drive, you can easily unscrew and remove the fastener whenever adjustments are needed.

With the Spit hit M hammer-in plug 8X110/80 P, you can securely fasten fixtures up to 80 mm thick into brick and aerated concrete in no time. Simply drill an 8 mm hole, insert the 112 mm plastic plug through your fixture, and drive the included screw home with a hammer. The integrated collar prevents the plug from slipping too deep into the drill hole while ensuring even pressure and a flush finish against your material. If you ever need to adjust or remove your installation, the PZ2 screw head allows you to unscrew it with ease. It is the efficient choice for solid through-fixing.

Product description

  • High-performance percussion plug with collar for in all materials
  • Easy to install and suitable for all materials
  • CE certified percussion plug
  • Spreading through hammer blows
  • Perfect pressure due to flat collar
  • Very good performance in hollow materials
  • Flat finish due to countersunk head
  • Available with large collar (Hit M-P20)

Applications

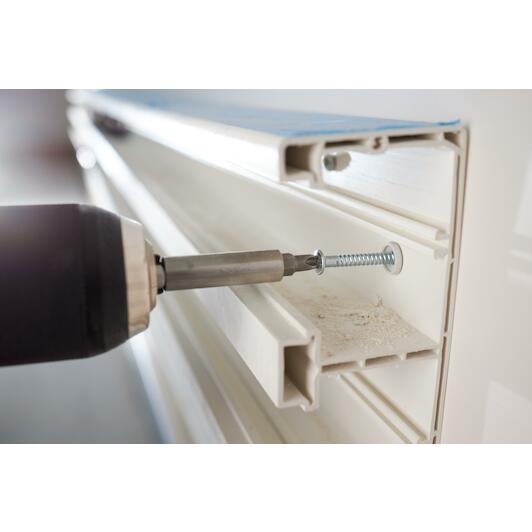

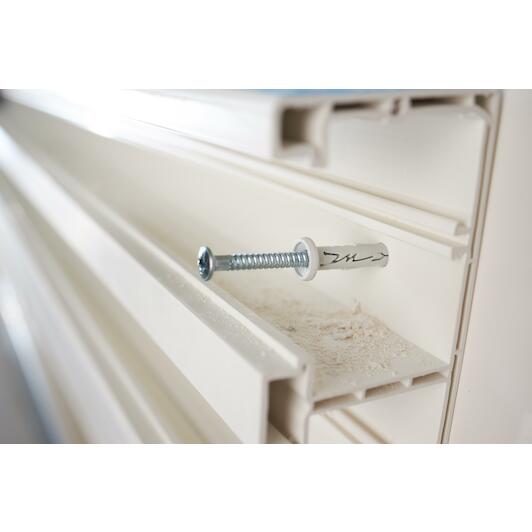

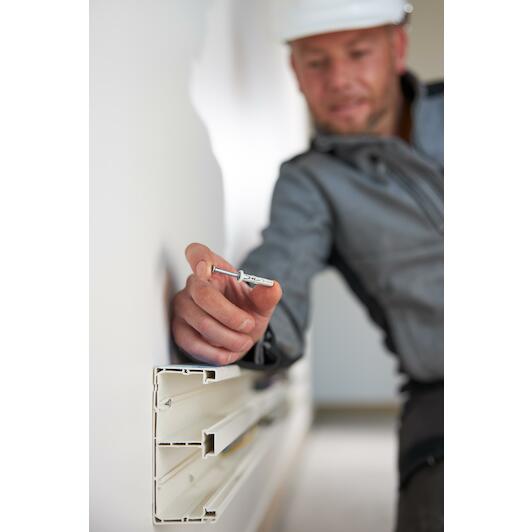

  • Electrical installations

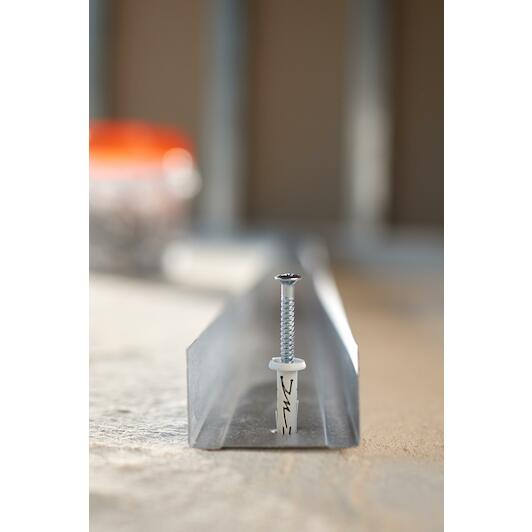

  • Metal stud profile
  • Beams and rafters
  • Signalling
  • Insulation supports
  • Skirting boards
Key features according to our expert
  • Length (Wall plug): 112 mm
  • Material (wall plug): Plastic
  • Wall plug type: Hammer-in plug
  • With screw: Yes
  • With collar: Yes
  • Application: Brick; Aerated concrete
  • type (screw head): PZ2
  • Drilling diameter: 8 mm
Specifications / All features
  • Brand: SPIT
  • EAN: 3439510600931
  • Supplier number: SPIT 060093
Length (wall plug)
112 mm
Material (wall plug)
Plastic
Wall plug type
Hammer-in plug
With screw
Yes
With collar
Yes
Application
Brick; Aerated concrete
Type (screw head)
PZ2
Drilling diameter
8 mm
Maximum trapping
80 mm
Bit size
PZ 2
Anchoring depth
30 mm
Product material
Nylon
Anchor diameter
8.0 mm
Min. anchor distance
100 mm
Base material colour
PURPLE
Head type
Flat head
Minimum drilling depth
40 mm
Min. thickness of base material
100 mm
Surface treatment
Galvanised
Drill diameter
8.0 mm
Maximum installation depth
30 mm
Throughput diameter
8 mm
Anchor length
112 mm
Head diameter
13.0 mm
Min. edge distance (mm)
100 mm
