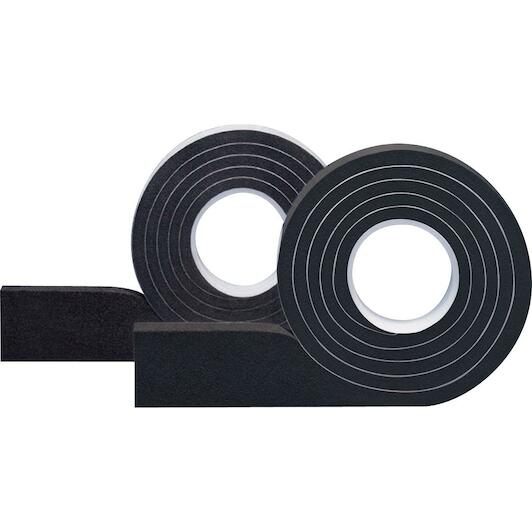

Standardised, pre-compressed jointing tape for sealing facade joints. Conforms to class BG1 according to DIN18542:2009. Impact rainproof to at least 600 Pa, suitable for uncovered joints (UV-resistant). Ideal as impact rainproof sealing of joints and connections in high-rise and low-rise buildings, in sill connections or as a high-quality backfilling for installation behind impact. Product features ATG (production control) and Socotec specifications.
Properties:
BG1 according to DI 18542/2009
Up to 600 Pa wind and driving rain proof
Vapour-permeable
Acoustic and thermal insulator
Adapts to unevenness and joint movement
UV-resistant
Dustproof
Self-adhesive on one side (= mounting aid)
Permanently elastic and paintable
Meets requirements according to DIN4108 (EnEv) and RAL mounting recommendations
Applications:
Ideally suited for vapour open, driving rainproof and permanently elastic seals and seals that need to comply with the 'EPB requirements' ('Energy Performance and Indoor Climate') and the requirements of EnEV DIN 4108 regarding airtightness. Sealing of expansion and movement joints between window frame and wall up to 100 metres building height as well as joints between door and window frames and wall, in concrete and steel construction, timber construction,...
Instructions for use:
Soudaband Pro BG 1 is easy to apply without special tools. The use of a spatula, knife or scissors and possibly wooden wedges is sufficient. After determining the joint depth and width, select the corresponding tape size. The joint edges should be parallel and free of building debris and/or cement residue. When measuring Soudaband Pro BG 1, take at least 1 cm extra per running metre of joint. In the case of vertical joints, start at the bottom by placing the Soudaband Pro BG 1. Fix the swelling band by pressing the self-adhesive side against a joint side using a putty knife. After application, the pre-compressed band will swell so that it will press against the joint flanks, thus filling the joint, with any unevenness. When butt-jointing two Soudaband Pro BG 1 ends, it is important that they are level on the visible side and that the two ends are firmly connected. Make sure there is an overlength per band and do not stretch it when installing.
