SKF

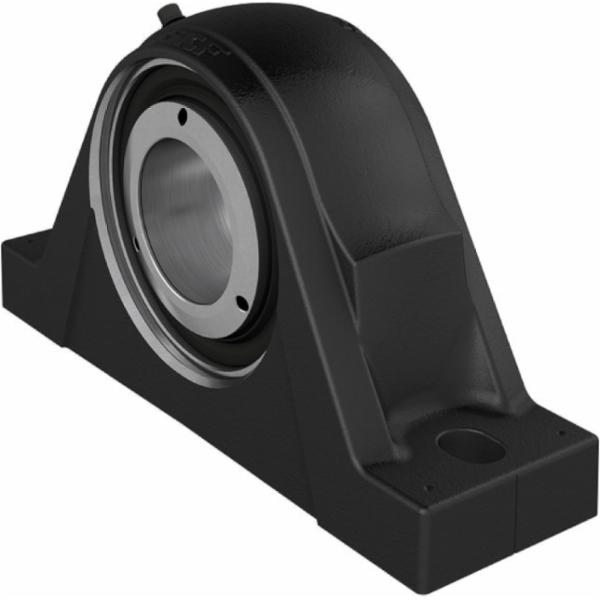

SKF SYNT 65 FTS standing roller bearing unit with two bolts 65 mm

This article is not available

Product description:

  • Bearing block, SYNT series
Key features according to our expert
  • Shaft diameter: 65 mm
  • Material (bearing): Steel
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316574443321
  • Supplier number: SKF SYNT 65 FTS
Shaft diameter
65 mm
Material (bearing)
Steel
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Grease fitting
With
Housing type
Pillow block
Material, bearing
Bearing steel
Centre height (pillow block)
80 mm
Lubricant
Grease
Number of bolt holes for fasteners
2
Basic static load rating
216 kN
Material, housing
Cast iron
Bearing width, total
72 mm
Retaining feature, inner ring
SKF ConCentra
Centre distance between bolt holes
230 mm
Sealing, unit
Optional end cover
Attachment bolt diameter
16 mm
Bearing insert
Spherical roller bearing
Bearing housing seal type
Labyrinth seal
Limiting speed
3,800 r/min
Relubrication hole
With
Housing overall width
80 mm
Basic dynamic load rating
193 kN
Coating
Without
Bearing position
Locating
