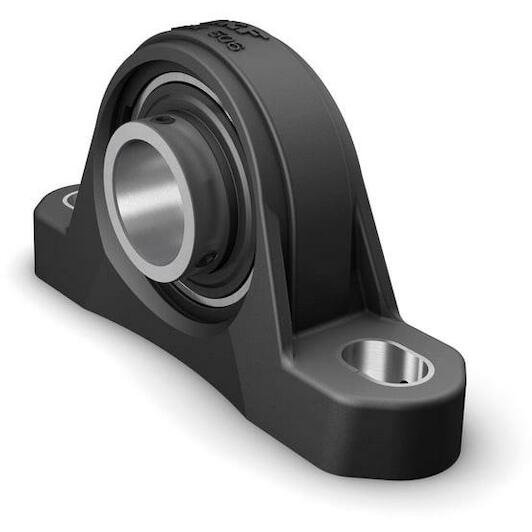

SKF SYK 35 TR ball bearing unit 35 mm

Show more features

Shaft diameter

35 mm

Bore type

Cylindrical

Material (bearing housing)

Composite

Material (bearing)

Steel

Material, bearing

Bearing steel

Sealing, bearing

Seal and flinger on both sides

Sealing type

Contact, multiple

Centre distance between bolt holes

126 mm

Centre height (pillow block)

47.6 mm

Lubricant

Grease

Number of bolt holes for fasteners

2

Basic static load rating

15.3 kN

Material, housing

Composite

Bearing width, total

42.9 mm

Retaining feature, inner ring

Set screws

Rubber seating ring

Without

Sealing, unit

Optional end cover

Grease fitting

Without

Note

Limiting speed with shaft tolerance h6

Limiting speed

3,200 r/min

Fastening bolt hole type

Plain

Relubrication hole

Without

Housing overall width

45 mm

Basic dynamic load rating

25.5 kN

Coating

Without

Housing type

Pillow block
