SKF

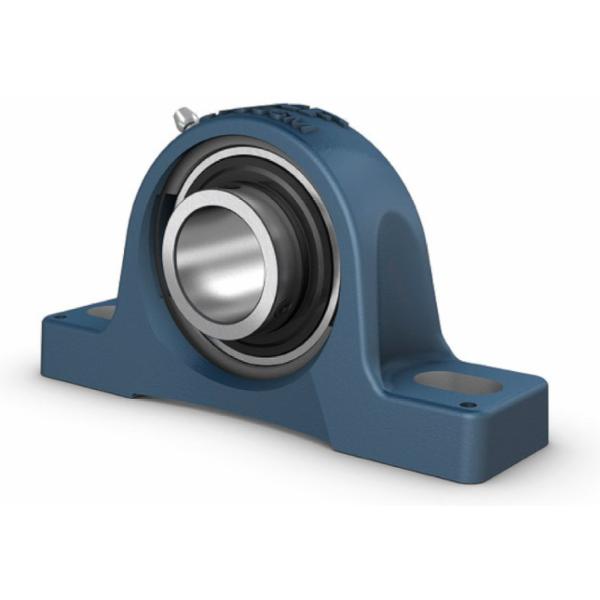

SKF SY 2.3/4 UTF ball bearing unit 69.85 mm

This article is not available

Key features according to our expert
  • Shaft diameter: 69,85 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
Specifications / All features
  • Brand: SKF
  • EAN: 7316577417411
  • Supplier number: SKF SY 2.3/4 UTF
Shaft diameter
69,85 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Material, bearing
Bearing steel
Sealing, bearing
Seal and flinger on both sides
Sealing type
Contact, standard
Centre distance between bolt holes
216 mm
Centre height (pillow block)
82.6 mm
Lubricant
Grease
Number of bolt holes for fasteners
2
Basic static load rating
49 kN
Material, housing
Cast iron
Bearing width, total
73.3 mm
Retaining feature, inner ring
Set screws
Rubber seating ring
Without
Note
Limiting speed with shaft tolerance h6
Grease fitting
With
Sealing, unit
Without
Limiting speed
2,600 r/min
Fastening bolt hole type
Plain
Relubrication hole
With
Housing overall width
72 mm
Basic dynamic load rating
66.3 kN
Coating
Without
Housing type
Pillow block
