SKF

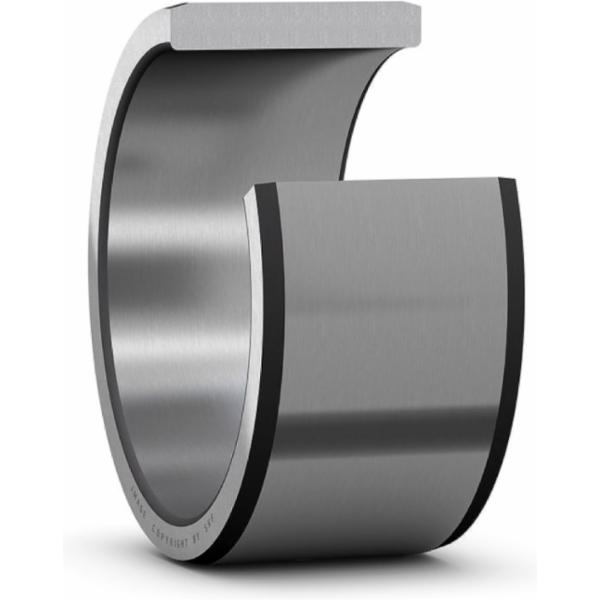

SKF IR 150X165X40 inner ring for needle roller bearing 150 x 165 x 40 mm

This article is not available

Product description:

  • Inner rings in the IR series are the standard SKF inner rings for needle roller bearings
  • They are made of carbon chrome bearing steel that is hardened and ground
  • The raceway surface, which is precision finished, has a lead-in chamfer on both sides to simplify assembly
  • The chamfer also protects the sealing tabs from damage during the assembly process
Key features according to our expert
  • Inner diameter: 150 mm
  • Width: 40 mm
  • Outer diameter: 165 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570455120
  • Supplier number: SKF IR 150X165X40
Inner diameter
150 mm
Width
40 mm
Outer diameter
165 mm
Coating
Without
Relubrication feature
Without
Radial internal clearance
CN
Tolerance class
Normal
Raceway diameter
165 mm
Bore diameter
150 mm
Material
Bearing steel
Outside diameter
165 mm
Special raceway feature
None
