SKF

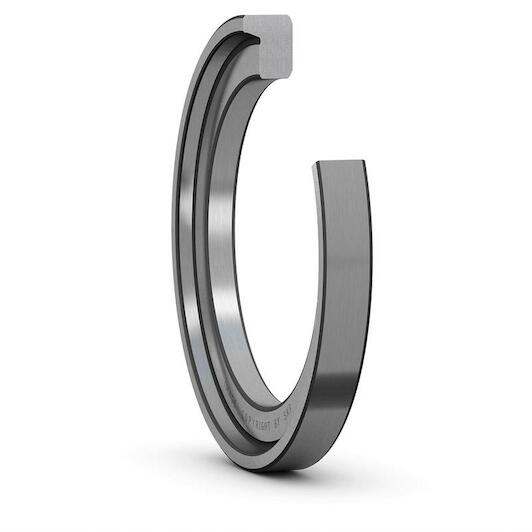

SKF HJ 308 EC angle ring for single-row cylindrical roller bearing (L-shaped thrust rings) 40 x 57.55 mm

This product has been discontinued.

Product description:

  • Angle rings are intended to:
    • For NU type cylindrical roller bearings, locking up the shaft in one direction
    • For cylindrical roller bearings of type NJ, to trap the shaft in both directions
    To achieve a locating bearing design, an adjusting ring of the same width must be used on both sides of the bearing
Key features according to our expert
  • Inner diameter: 40 mm
  • Outer diameter: 57,55 mm
  • Width: 7 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570339802
  • Supplier number: SKF HJ 308 EC
Inner diameter
40 mm
Outer diameter
57,55 mm
Width
7 mm
Outside diameter
57.55 mm
Material
Bearing steel
Coating
Without
Bore diameter
40 mm
Width in bore
7 mm
