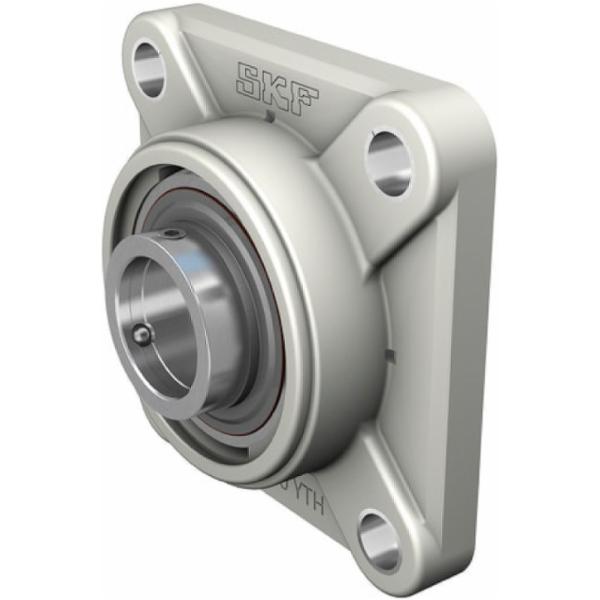

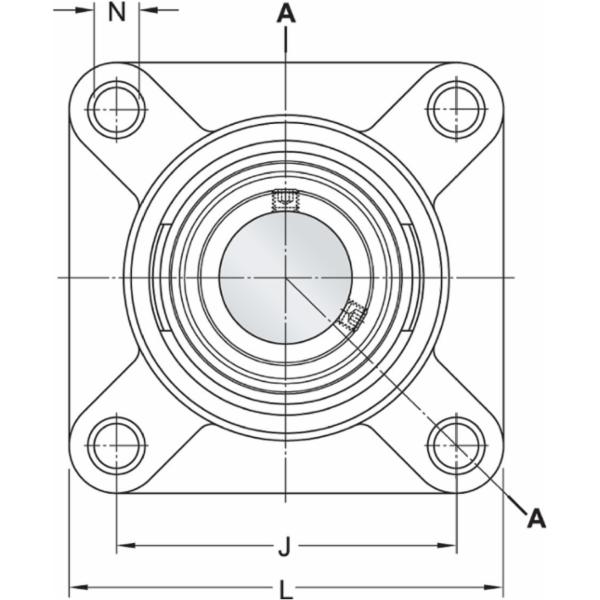

SKF FYWK 30 YTA Y ball bearing unit with flange square, d 30 mm, A 33 mm, J 82.5 mm

SKF
Supplier number: SKF FYWK 30 YTA | EAN 7316574944446
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Shaft diameter: 30 mm
  • Split: No
  • Material (bearing housing): Composite
  • Material (bearing): Steel
  • High temperature: No
  • Bore type: Cylindrical
  • Shape (bearing housing): Square

All Features

Shaft diameter
30 mm
Split
No
Material (bearing housing)
Composite
Material (bearing)
Steel
High temperature
No
Bore type
Cylindrical
Shape (bearing housing)
Square
Lubricant
Grease
Bearing width, total
38.1 mm
Material, housing
Composite for the SKF Food Line
Basic static load rating
11.2 kN
Number of bolt holes for fasteners
4
Sealing, bearing
Seal and flinger on both sides
Rubber seating ring
Without
Sealing type
Contact, multiple
Centre distance between bolt holes
82.5 mm
Material, bearing
Bearing steel
Flanged housing type
Square
Retaining feature, inner ring
Set screws
Limiting speed
3,800 r/min
Grease fitting
Without
Note
Limiting speed with shaft tolerance h6
Sealing, unit
Optional end cover
Fastening bolt hole type
Plain
Relubrication hole
Without
Housing overall width
33 mm
Basic dynamic load rating
19.5 kN
Coating
Zinc-coated bearing
Housing type
Flanged
  • Brand SKF
  • EAN 7316574944446
  • Supplier number SKF FYWK 30 YTA
