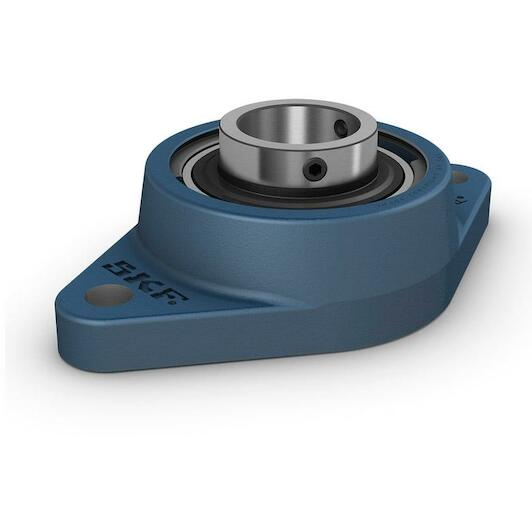

SKF FYTB 1.3/4 TF Y ball bearing unit with flange oval, d 44.45 mm, A 39 mm, J 148.5 mm

Show more features

Shaft diameter

44,45 mm

Split

No

Material (bearing housing)

Stainless steel

Material (bearing)

Steel

High temperature

No

Bore type

Cylindrical

Shape (bearing housing)

Oval

Number of bolt holes for fasteners

2

Retaining feature, inner ring

Set screws

Bearing width, total

49.2 mm

Material, housing

Cast iron

Basic static load rating

21.6 kN

Sealing, bearing

Seal and flinger on both sides

Lubricant

Grease

Rubber seating ring

Without

Sealing type

Contact, standard

Grease fitting

With

Material, bearing

Bearing steel

Flanged housing type

Oval

Centre distance between bolt holes

148.5 mm

Limiting speed

4,300 r/min

Note

Limiting speed with shaft tolerance h6

Sealing, unit

Optional end cover

Width, total

54.1 mm

Fastening bolt hole type

Plain

Relubrication hole

With

Housing overall width

39 mm

Basic dynamic load rating

33.2 kN

Coating

Without

Housing type

Flanged
