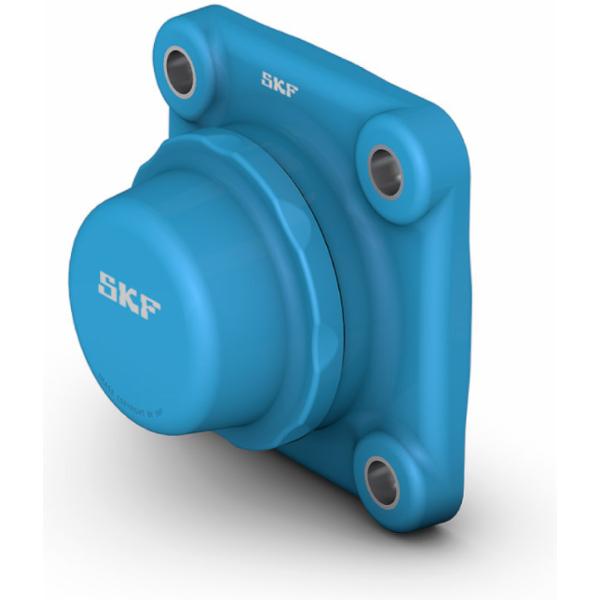

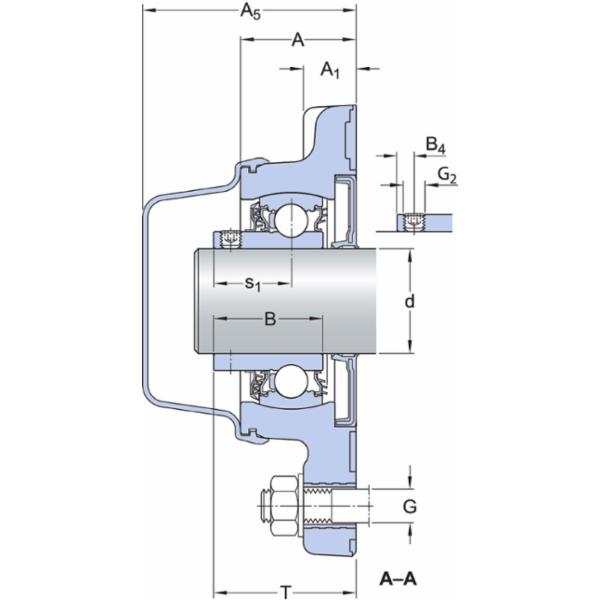

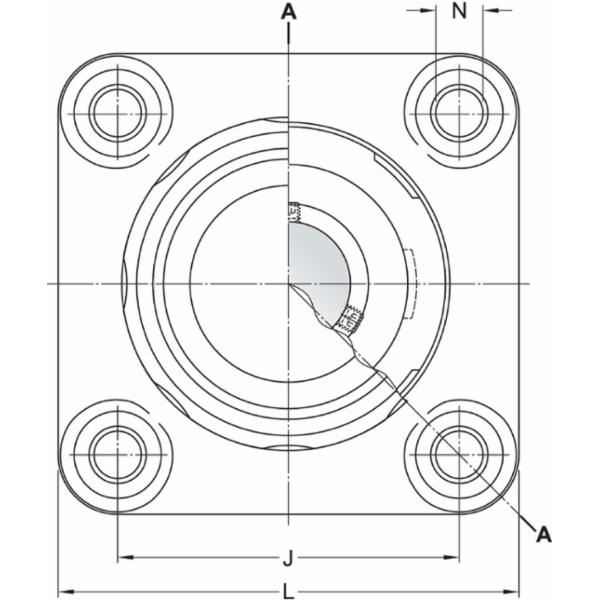

SKF F4BC 100-CPSS-DFH Y ball bearing unit with flange square, d 25.4 mm, A 29 mm, J 70 mm

SKF
Supplier number: SKF F4BC 100-CPSS-DFH | EAN 7316577858610
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Shaft diameter: 25,4 mm
  • Split: No
  • Material (bearing housing): Composite
  • Material (bearing): Stainless steel
  • High temperature: No
  • Bore type: Cylindrical
  • Shape (bearing housing): Square

All Features

Shaft diameter
25,4 mm
Split
No
Material (bearing housing)
Composite
Material (bearing)
Stainless steel
High temperature
No
Bore type
Cylindrical
Shape (bearing housing)
Square
Lubricant
Grease
Material, housing
Composite for the SKF Food Line
Basic static load rating
7.8 kN
Number of bolt holes for fasteners
4
Material, bearing
Stainless steel
Rubber seating ring
Without
Sealing type
Contact, gutter
Sealing, bearing
Seal on both sides and flinger on one side
Retaining feature, inner ring
Set screws
Flanged housing type
Square
Bearing width, total
27.3 mm
Limiting speed
700 r/min
Centre distance between bolt holes
70 mm
Grease fitting
Without
Sealing, unit
End cover and back seal
Fastening bolt hole type
Plain
Relubrication hole
Without
Housing overall width
29 mm
Basic dynamic load rating
11.9 kN
Coating
Without
Housing type
Flanged
  • Brand SKF
  • EAN 7316577858610
  • Supplier number SKF F4BC 100-CPSS-DFH
