Product description

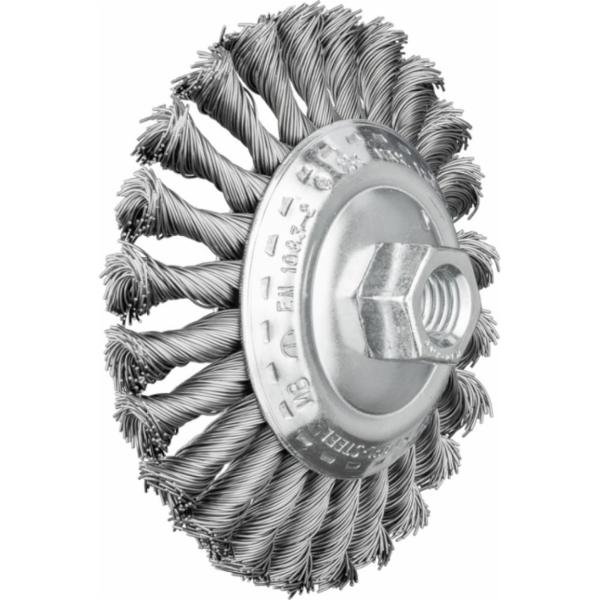

- PFERD Bevel brush knotted KBG dia. 115x15 mm M14 steel wire dia. 0.50 mm angle grinders
Characteristics
- Aggressive brush
- Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter
- Steel wire is the most common filament material
- Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring
- PFERD special wire has high tensile strength and bending fatigue strength
- This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications
- Steel wire withstands temperatures up to 300 °C
Advantages:
- Aggressive brushing effect due to the very stiff wire knots.
- Optimal access to hard-to-reach areas such as inner edges, grooves and keyways.
- Long tool life through use of PFERD special wire.
Key features according to our expert
-
Brush diameter: 115 mm
-
Connection size (machine): M14
-
Connection type (machine): Inner thread
-
Wire thickness: 0,5 mm
-
Twisted: Yes
-
Thickness: 15 mm
-
Max. no-load speed: 15000 rpm
-
Material (brush filament): Steel wire
Specifications / All features
-
Brand:
PFERD
-
03163601
-
EAN:
4007220955246
-
Supplier number:
PFERD 43314010
- Brush diameter
- 115 mm
- Connection size (machine)
- M14
- Connection type (machine)
- Inner thread
- Wire thickness
- 0,5 mm
- Twisted
- Yes
- Thickness
- 15 mm
- Max. no-load speed
- 15000 rpm
- Material (brush filament)
- Steel wire
- Filling material
- Steel wire (ST)
- Processing tasks
- Cleaning
- Processing tasks 3
- Oxidation removal
- Length, trim
- 26
- Processing tasks 1
- Deburring
- Workable materials 3
- Steel grades with hardness > 54 HRC
- Processing tasks 5
- Removal of lacquers
- Max. rpm
- 15000
- ø outside metric
- 115
- Number, threaded ends
- 24
- ø topping material
- 0.5
- Rpm, opt., to
- 12500
- Workable materials 1
- Cast steel
- Processing tasks 8
- Corner seam machining
- Workable materials 4
- Steel up to 1,200 N/mm² (< 38 HRC)
- Width metric
- 15
- Processing tasks 7
- welding
- Processing tasks 4
- Removing oxide layers
- ø thread
- M14x2
- Recording system
- Thread
- Processing tasks 6
- V-seam machining
- Processing tasks 2
- Derusting
- Workable materials 2
- Steel, cast steel
- Workable materials
- Cast iron
- Rpm, opt., of
- 7500
