PFERD B 1025/6 ALLROUND HC-FEP carbide high-efficiency burr flame shape B 10x25mm 6mm universal - 21001049

Name: PFERD B 1025/6 ALLROUND HC-FEP carbide high-efficiency burr flame shape B 10x25mm 6mm universal - 21001049
Brand: PFERD
SKU: 03235691
Price: 91.11 EUR
Availability: PreOrder

91.11 tax incl.

€75.30 excl. VAT (incl. all environmental contributions)

PFERD B 1025/6 ALLROUND HC-FEP carbide high-efficiency burr flame shape B 10x25mm 6mm universal - 21001049

€91.11

On order: delivered from 26/05/2026

each

Delivery by DHL

Product information

Product description

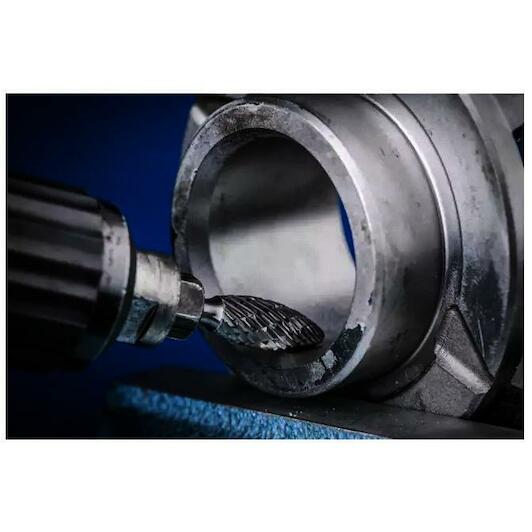

PFERD Tungsten carbide high-performance burr ALLROUND flame B dia. 10x25 mm shank dia. 6 mm HICOAT universal

Characteristics

High-performance cut ALLROUND with HICOAT coating HC-FEP is characterized by its high degree of hardness and wear resistance
It enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant
It allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs
Flame-shaped burr according to ISO 7755/8

Advantages:

Significantly better stock removal rate than burrs with a conventional cross cut.
Saves time and money thanks to its very high stock removal rate on key materials.
Comfortable working with reduced vibration and less noise.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Key features according to our expert

Diameter: 10 mm
Shank size (milling cutter): 6 mm
Shank type: Cylindrical
Shape (burr cutter): Flame (H)
Cutting length: 20 mm

Specifications / All features

Brand: PFERD
03235691
EAN: 4007220221952
Supplier number: PFERD 21001049

Diameter: 10 mm
Shank size (milling cutter): 6 mm
Shank type: Cylindrical
Shape (burr cutter): Flame (H)
Cutting length: 20 mm
Workable materials 3: Hardened, heat-treated steels above 1,200 N/mm² (< 38 HRC)
Processing tasks: Obtaining cut-outs
Processing tasks 3: Milling
Processing tasks 1: Deburring
Rpm up to, hardened refined steels above 1,200 n/mm²: 19000
Processing tasks 5: Machining of surfaces
ø outside metric: 10
Rpm of, soft non-ferrous metals: 14000
Workable materials 7: Steel above 700 N/mm² (> 220 HB)
Rpm up to, hard non-ferrous metals: 24000
Workable materials 5: Steel, cast steel
Rpm of, hard non-ferrous metals: 14000
Rpm of, stainless and acid-resistant steels: 14000
Rpm of, steels up to 1,200 n/mm²: 14000
Gearing: ALL-ROUND HC-FEP
Rpm up to, soft non-ferrous metals: 29000
Rpm up to, steels up to 1,200 n/mm²: 29000
Workable materials 1: Cast steel
Workable materials 8: Steel up to 700 N/mm² (< 220 HB)
Workable materials 9: Tool steel
Workable materials 6: Steel up to 1,200 N/mm² (< 38 HRC)
Workable materials: High-speed steel
Rpm to, stainless and acid-resistant steels: 19000
Length, toothed: 25
Workable materials 4: Steel
Workable materials 2: Aluminium alloys hard
Processing tasks 2: Levelling
Processing tasks 6: welding
Corner execution radius: 1.7
Length, total: 65
Processing tasks 4: Milling out
ø shaft metric: 6
Rpm of, hardened refined steels above 1,200 n/mm²: 8000
