MILWAUKEE

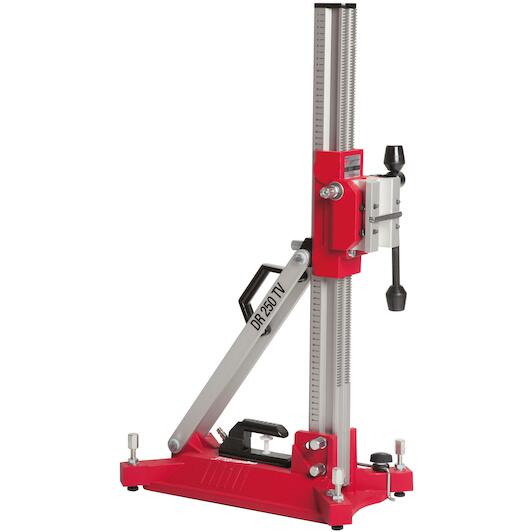

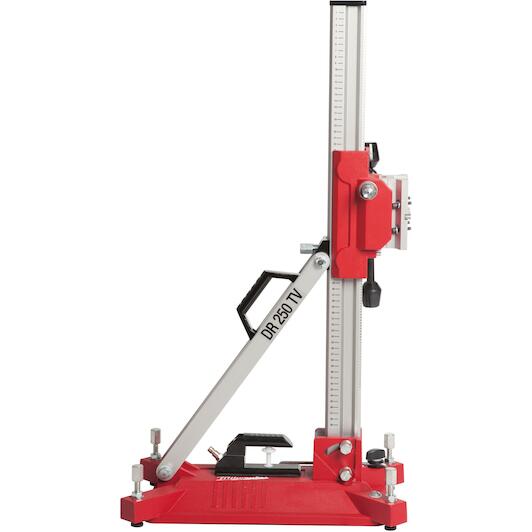

MILWAUKEE DR 250 TV diamond drill stand - 4933400590

This article is not available

Product description

  • Diamond drill stand for DCM 2-250 C
  • Light weight drilling rig from aluminium

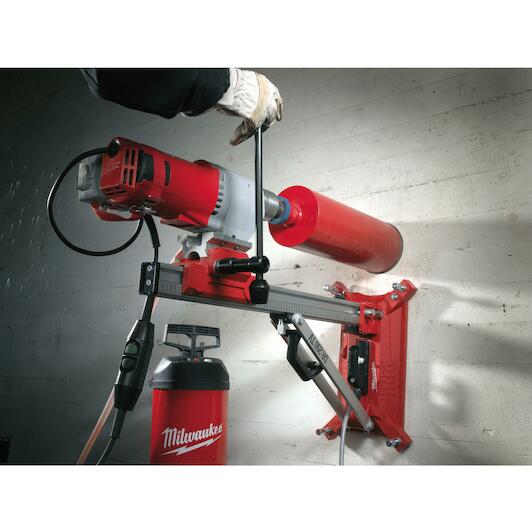

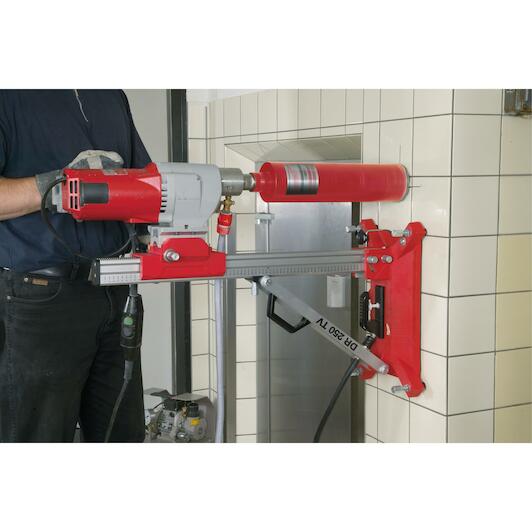

  • Tilting (0 - 45°)
  • Quick-connect motor plate
  • Integrated vacuum base plate (use with and without vacuum possible)
  • Fine adjustment of feed speed
  • Vertical and horizontal water level
  • Drill hole centering device
  • Leveling screws
  • Feed handle attachable to both sides of rig
  • Supplied with " Hex key, 6 mm Hex key, 17x19 wrench, quick-connect motor plate, 4 pcs. M8x25 mm screws, centering device, vacuum rubber seal
Key features according to our expert
  • Stroke length: 520 mm
  • Max. drilling diameter: 250 mm
  • Height: 834 mm
Specifications / All features
  • Brand: MILWAUKEE
  • EAN: 4002395234028
  • Supplier number: MILWAUKEE 4933400590
Stroke length
520 mm
Max. drilling diameter
250 mm
Height
834 mm
Supplied in
No kit box or bag included
Height (mm)
834
Stroke length (mm)
520
Footplate size (mm)
276 x 467
Max. drill bit ø with drill chucks (mm)
250
Mitre angle capacity (°)
45
Weight (kg)
10.0
