GEDORE 4550-30 torque spanner torcofix k 1/2" 60-300 Nm - 7601880

Name: GEDORE 4550-30 torque spanner torcofix k 1/2" 60-300 Nm - 7601880
Brand: GEDORE
SKU: 41150577
Price: 421.1 EUR
Availability: PreOrder
Rating: 8 (1 reviews)

1 review(s)

This article is not available

Product information
Reviews

Product description

4550-30 Torque spanner TORCOFIX K 1/2" 60-300 Nm

Features

Controlled tightening of screws in the range of 1 - 850 N-m / 0.75 - 630 lbf-ft (guide values screws M3-6.9 to M24-8.8,M30-5.6),adjustable,audible and tactile switch-off and robust torque spanner with integrated ratchet with square drive for industry and crafts,Design: classified in accordance with DIN EN ISO 6789:2003 type II class A, with a manufacturer's certificate
Accuracy +/- 3 % of set scale value
Exceeds the directive of the standard (+/- 4 %),for controlled clockwise and anticlockwise tightening,1/4",3/8",1/2" mushroom head-switching square with ball lock
From 3/4" through-hole square with ball lock,robust,painted tubular steel construction,with zinc-plated ratchet and high-quality plastic parts,ergonomically shaped,handy,black plastic handle with calibration aid,double scale N-m and lbf-ft under a viewing window with magnifying glass effect,with micrometer scale for N-m main scale for setting scale intermediate values,automatic switch-off using audible and tactile signal,ergonomic system for setting the torque

Key features according to our expert

Min. tightening torque: 60 Nm
Drive profile size: 1/2"
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Adjustable torque range: 60-300 Nm
Max. tightening torque: 300 Nm

Specifications / All features

Brand: GEDORE
41150577
EAN: 4002805455036
Supplier number: GEDORE 7601880

Min. tightening torque: 60 Nm
Drive profile size: 1/2"
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Adjustable torque range: 60-300 Nm
Max. tightening torque: 300 Nm
Test certificate: DIN EN ISO 6789-2:2017
Vernier nm: 1 Nm
Drive type/drive: Mushroom head
Tightening torque (min.) [lbf-ft]: 45 lbf-ft

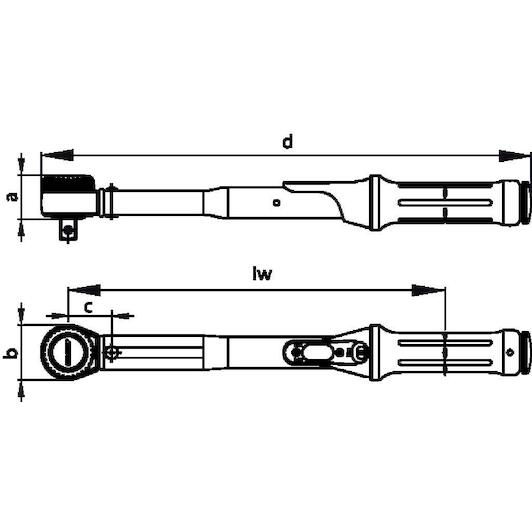

Head width 1 [mm].: 46.0 mm
Tightening direction: Left and right
Scale division [nm]: 10 Nm
Head height 1 [mm]: 36 mm
Precision +/-: +/- 3 %
Drive square [inch]: 1/2"
Overall length [mm]: 575 mm
Retrieval angle: 7,5 °
Torque (min.) [nm].: 60 Nm
Tightening range (min/max) [lbf-ft].: 45 lbf-ft - 220 lbf-ft
Turn-off mechanism: Short road clearance
Calibration length: 485.2 mm
Tightening torque (max) [lbf-ft]: 220 lbf-ft
Distance housing - square centre: 23 mm
Scale division [lbf-ft]: 10 lbf-ft
Target groups: Automotive Industry Construction and Commercial Vehicles Consumer Energy Mechanical Engineering Workshop Service Agriculture Oil and gas Utilities
Drive square [metric]: 12.5 mm
Torque range (min./max.) [nm].: 60 Nm - 300 Nm
Scope: AssemblyMaintenance and repair
Scale: 10
Number of teeth: 48
Torque (max.) [nm].: 300 Nm
